Van's Aircraft RV-8/8A instrument panel
The RV-8/8A panel template at the panel's dimensions, 33.29 × 12.14 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
20 panels laid out on this template

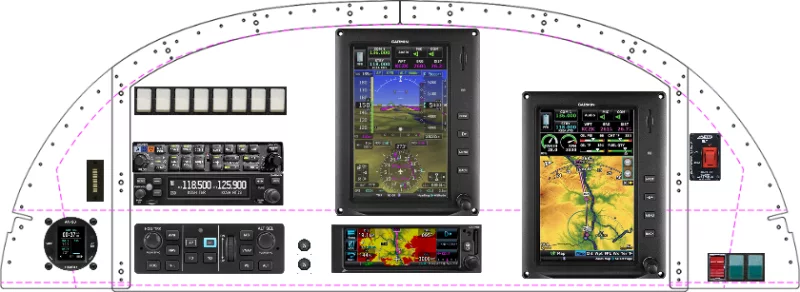

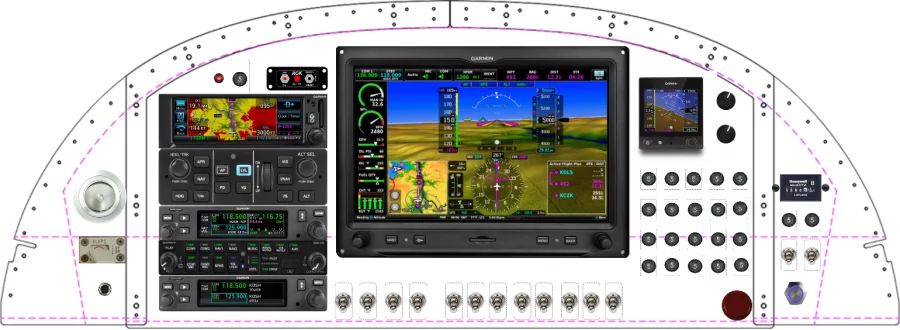

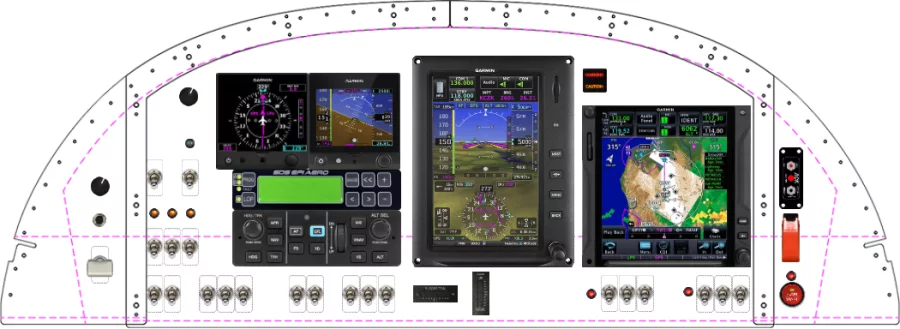

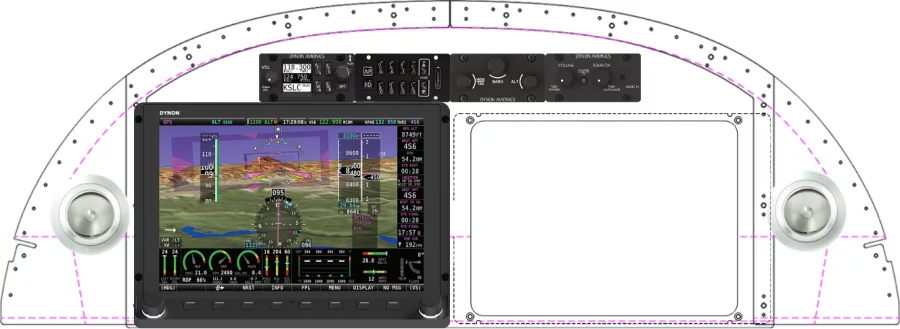

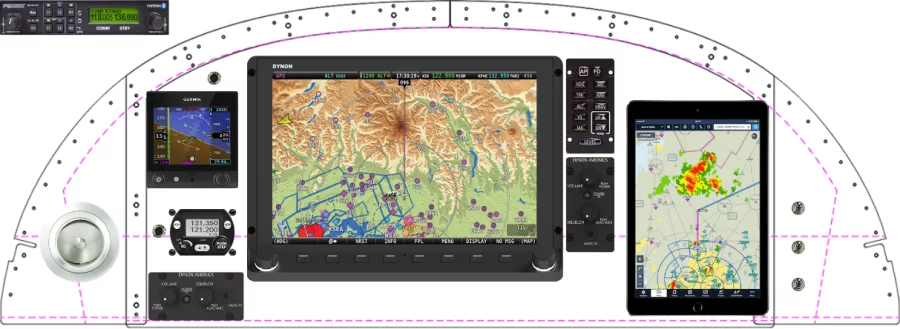

Recent RV-8/8A panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an RV-8/8A panel
The equipment placed most often across the 20 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GMC 507 | 10 | 50% |
| Garmin International, Inc G5 | 9 | 45% |
| Garmin International, Inc G3X Touch | 9 | 45% |
| Garmin International, Inc GMA 245 | 5 | 25% |
| Dynon Avionics Autopilot Panel | 5 | 25% |
| Dynon Avionics Stereo Intercom | 5 | 25% |
| ACK Technologies ELT | 4 | 20% |
| Dynon Avionics VHF COM | 4 | 20% |
Other Van's Aircraft panels
From layout to fabricated panel
Lay out the RV-8/8A panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
