Piper Aircraft PA-46-350 instrument panel
The PA-46-350 panel template at the panel's dimensions, 51.07 × 25.54 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
36 panels laid out on this template

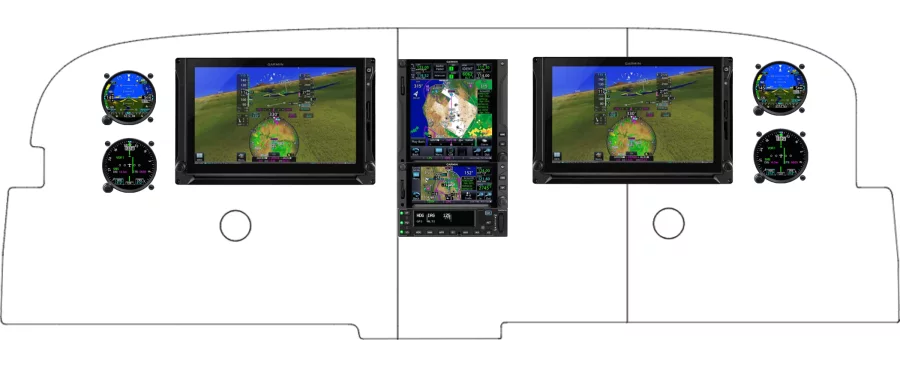

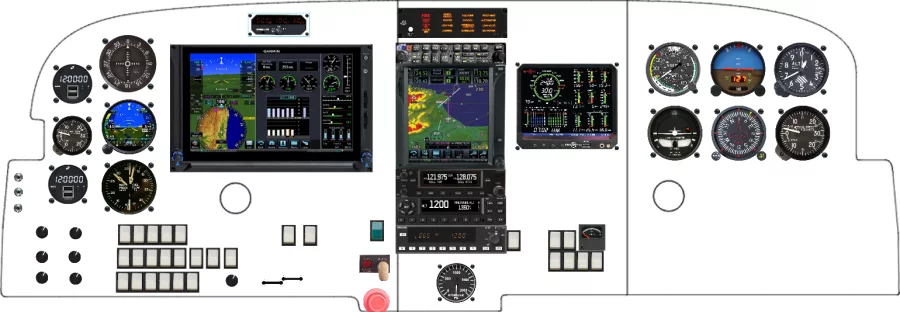

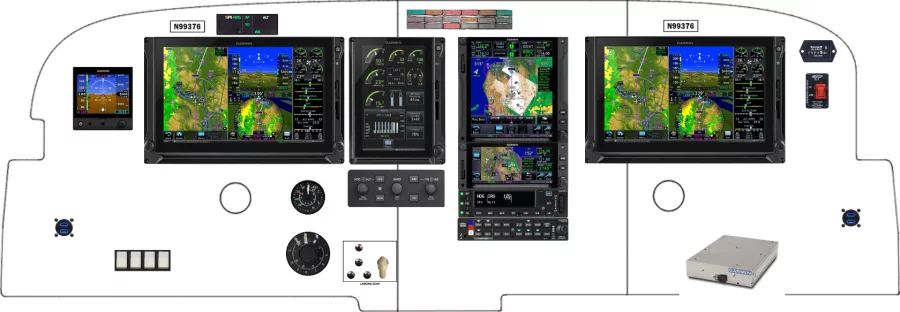

Recent PA-46-350 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a PA-46-350 panel
The equipment placed most often across the 36 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GTN 750Xi | 13 | 36% |
| Garmin International, Inc GI 275 ADI | 13 | 36% |
| Garmin International, Inc GFC 600 | 7 | 19% |
| Garmin International, Inc GTN 650Xi | 7 | 19% |
| Garmin International, Inc GI 275 HSI | 7 | 19% |
| Garmin International, Inc GMA 350 | 6 | 17% |
| Honeywell Sensing Honeywell Sensing | 6 | 17% |
| Garmin International, Inc GI-260 AOA Indicator | 6 | 17% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-46-350 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
