Instrument Panel Designer
Design your instrument panel to scale.
Actual instruments and avionics on a template for your airframe, at the manufacturer's dimensions. Design on a computer or a tablet in landscape. Browse panels and share your own from your phone.
Featured panels
Instrument Panel Designer
Design your custom instrument panel with precision.
Place actual instruments and avionics on a template for your airframe. Panel templates and instruments are dimensioned per the manufacturer's specifications, dimensioned to a ten-thousandth of an inch, so the layout is to scale. Export the panel layout and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.

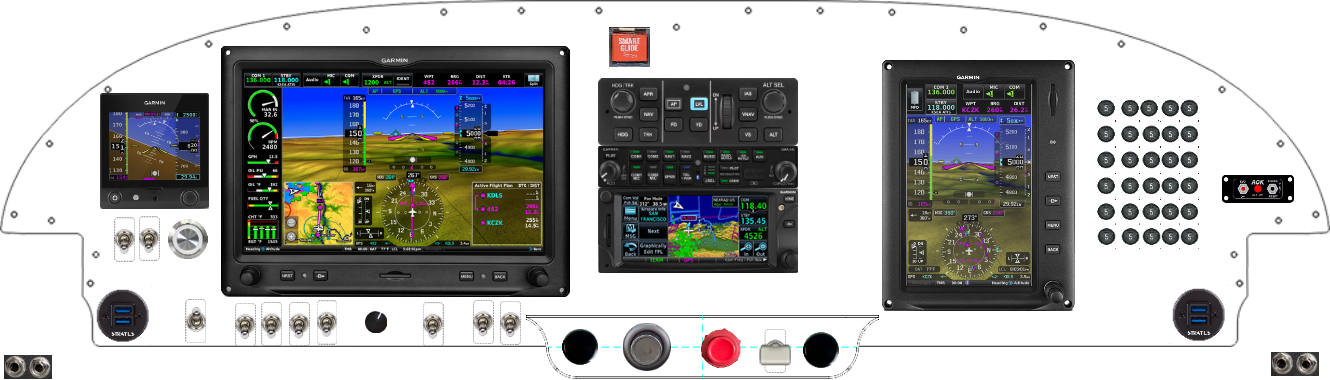

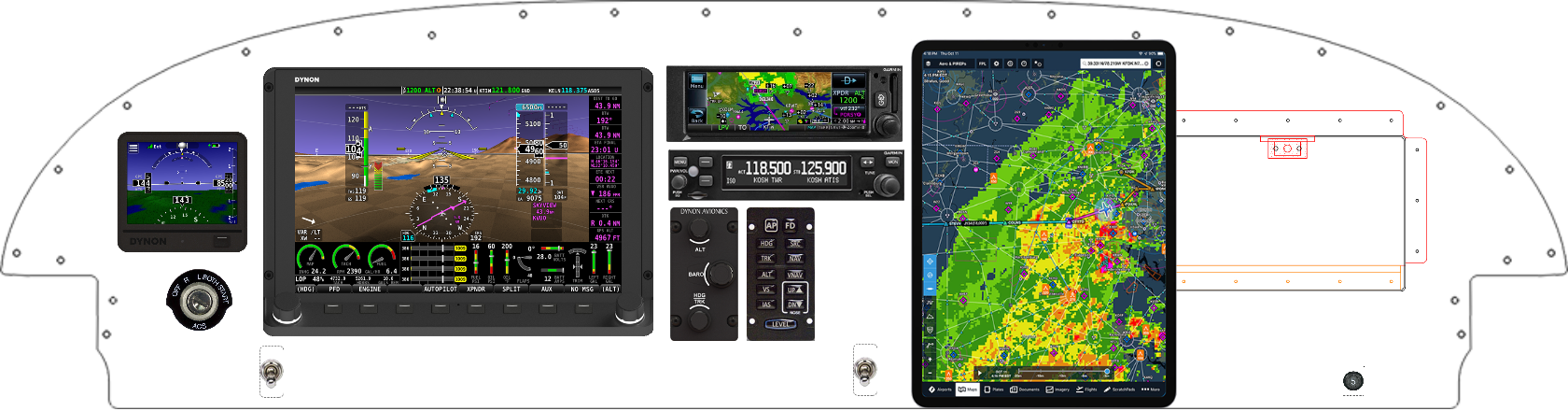

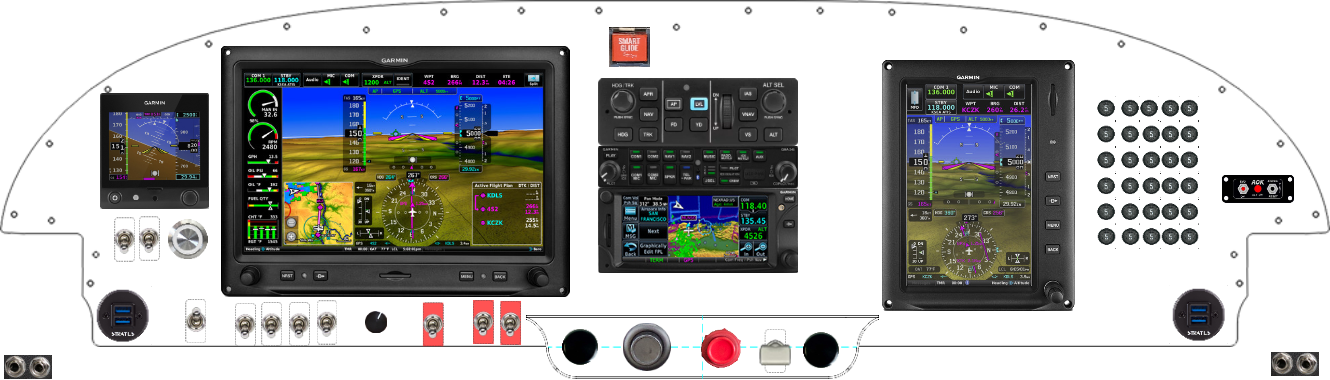

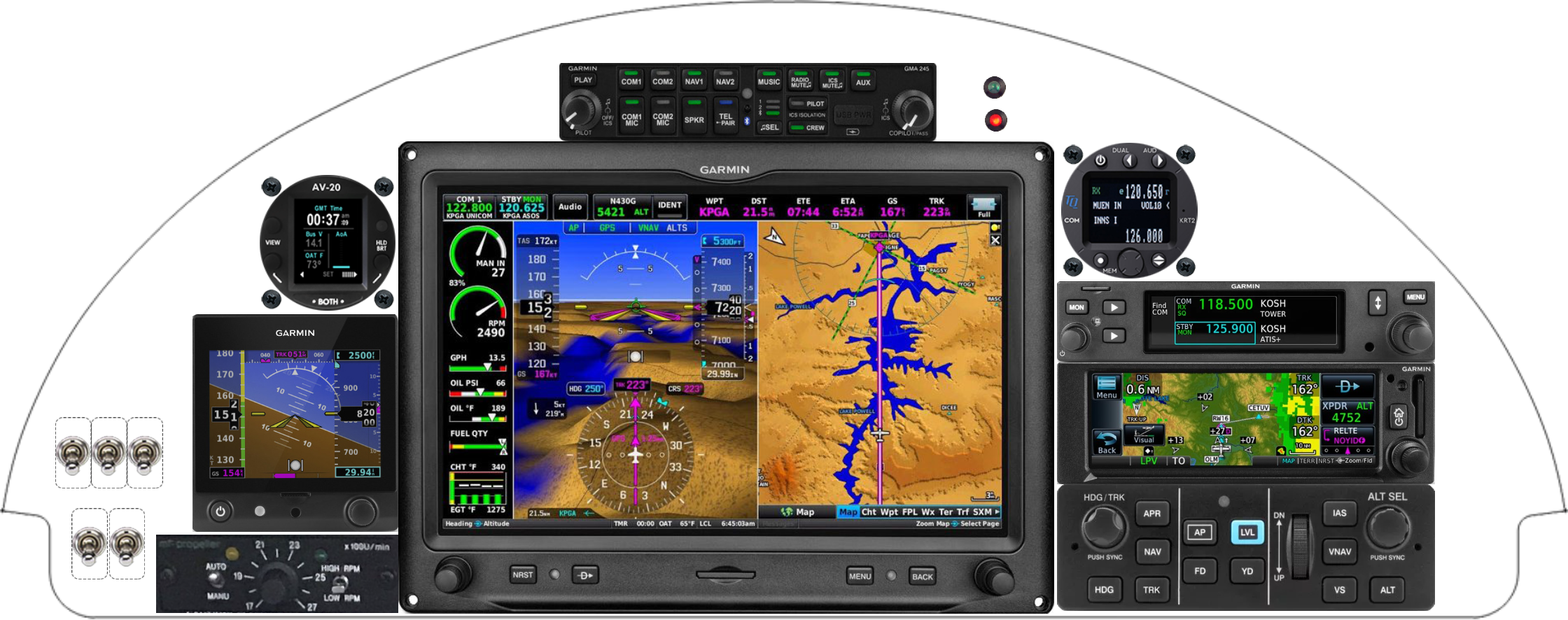

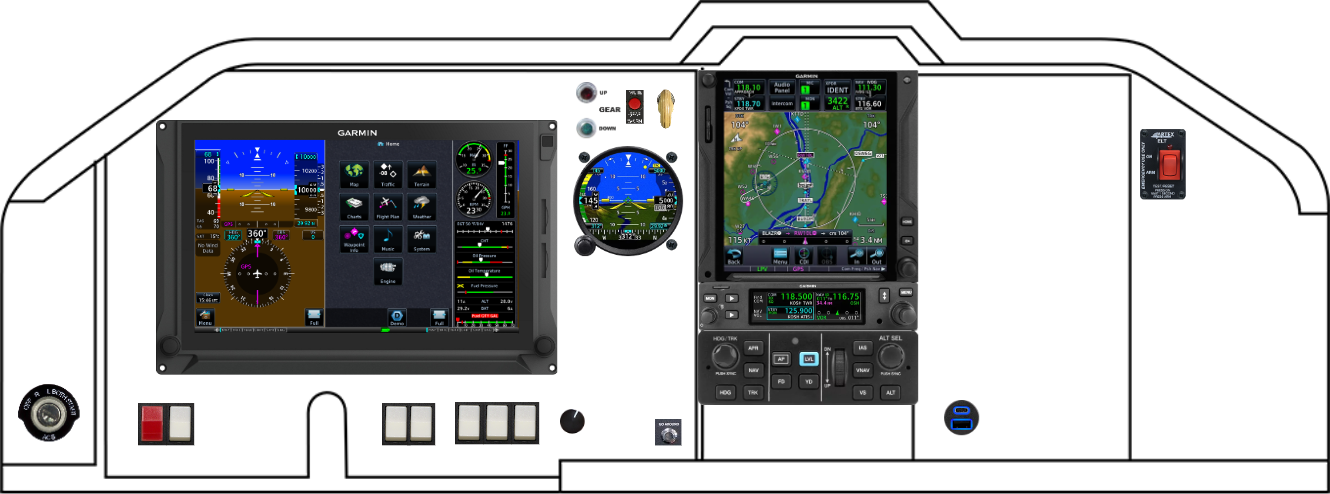

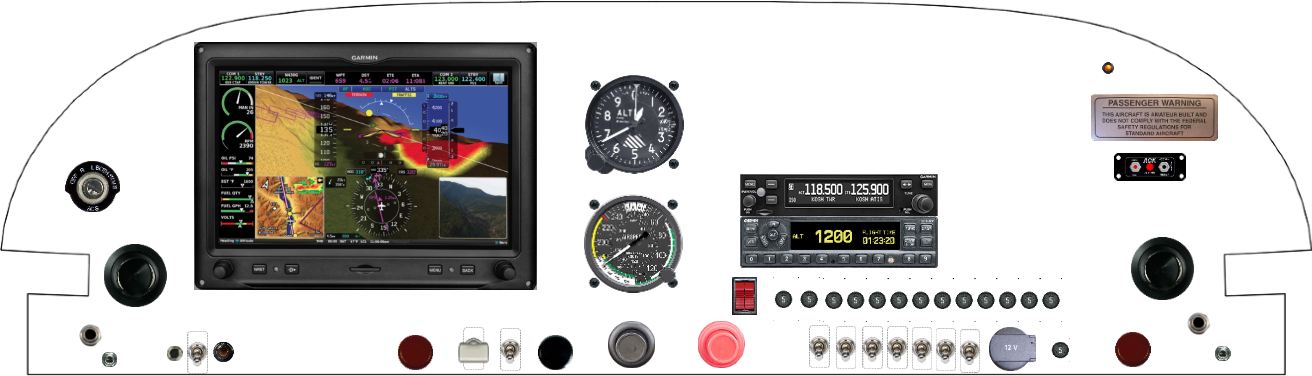

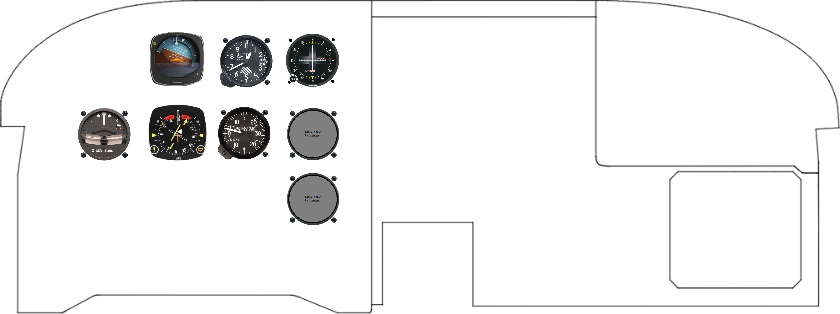

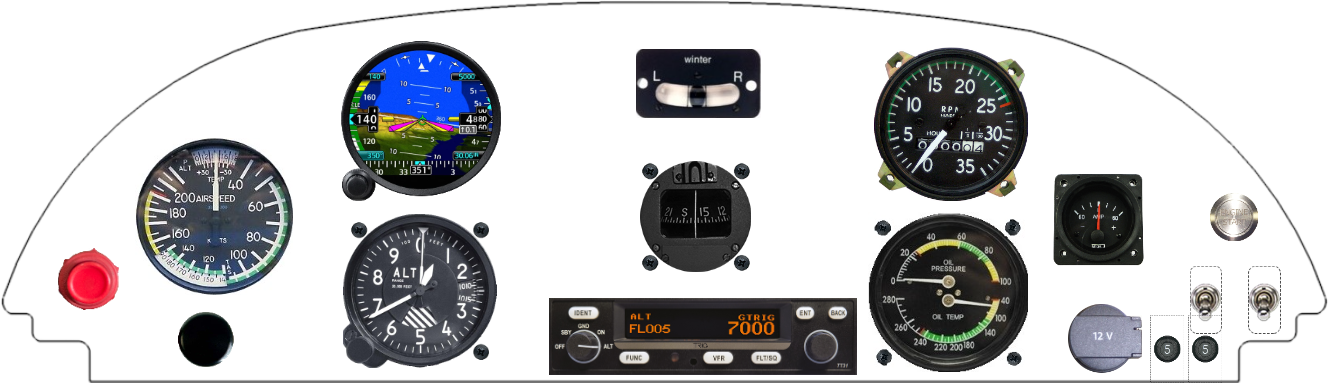

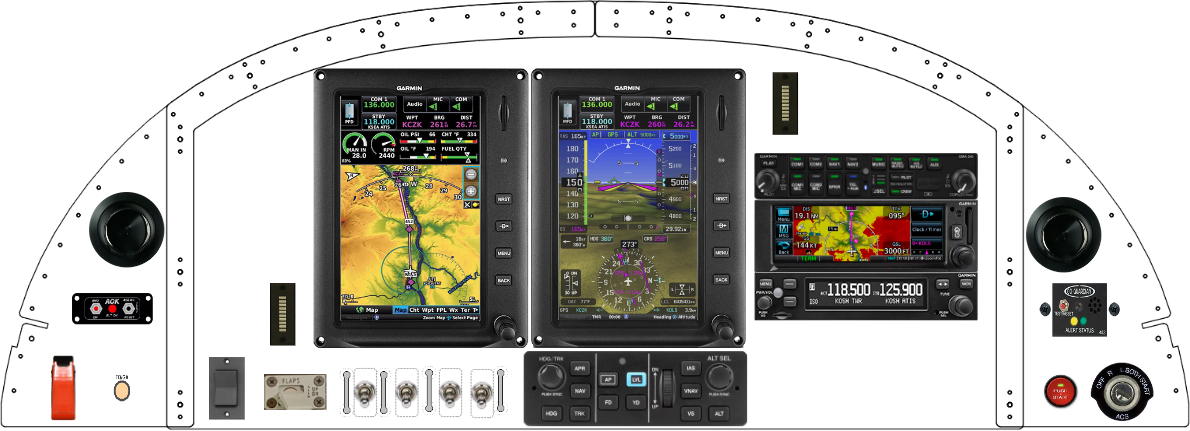

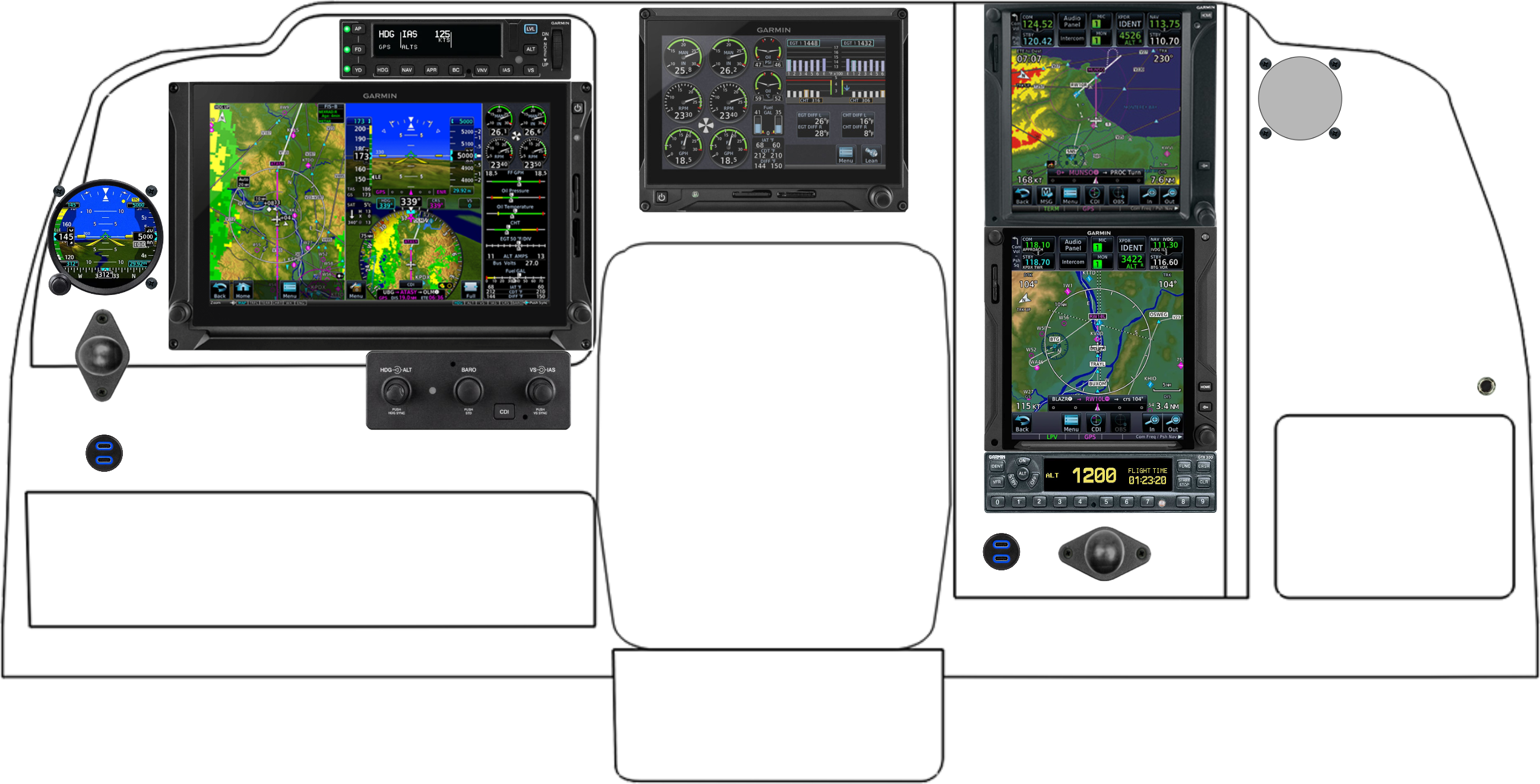

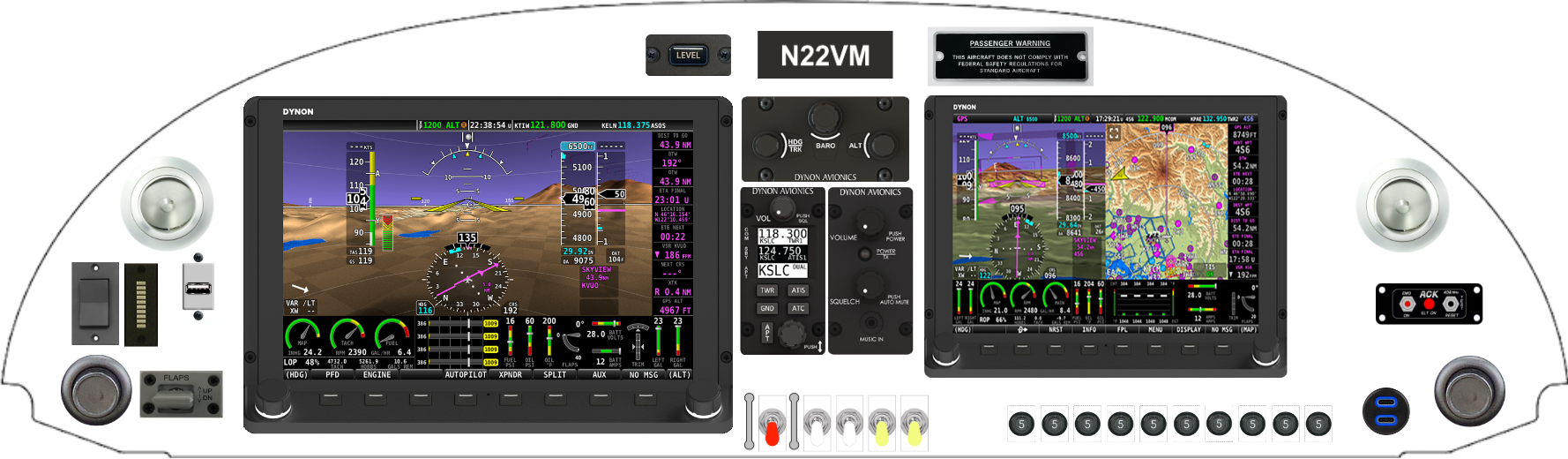

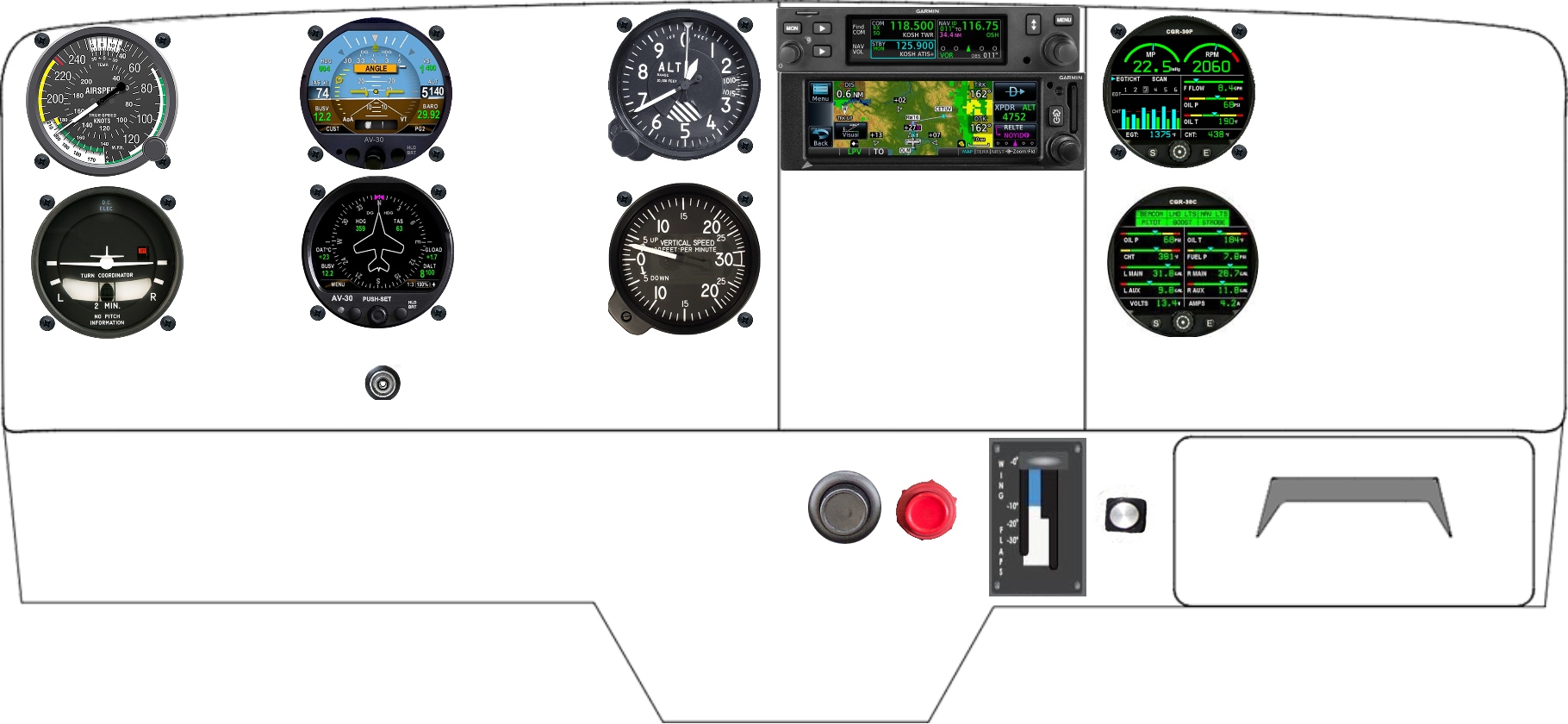

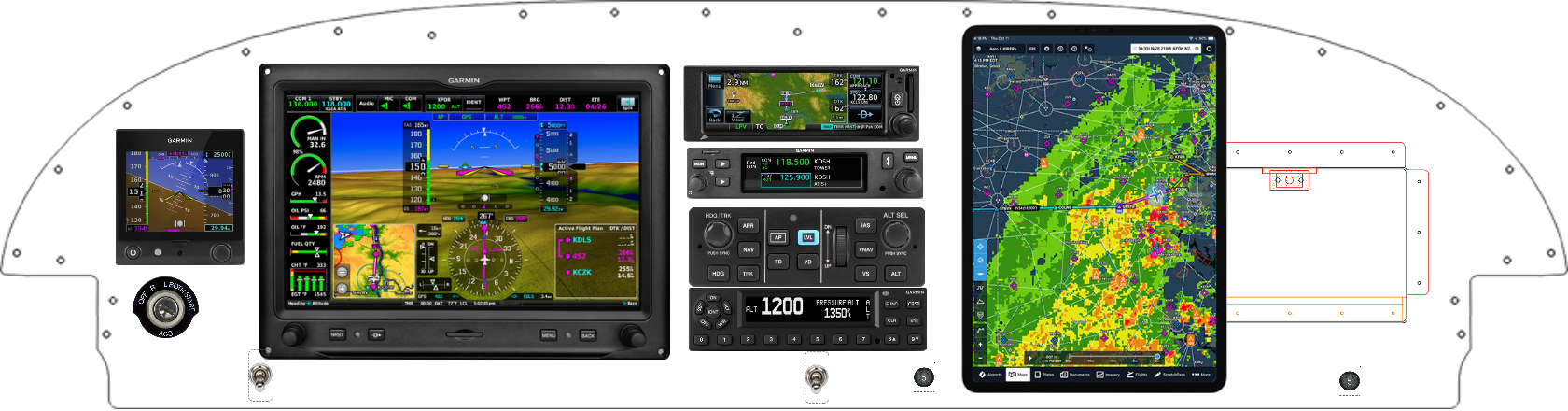

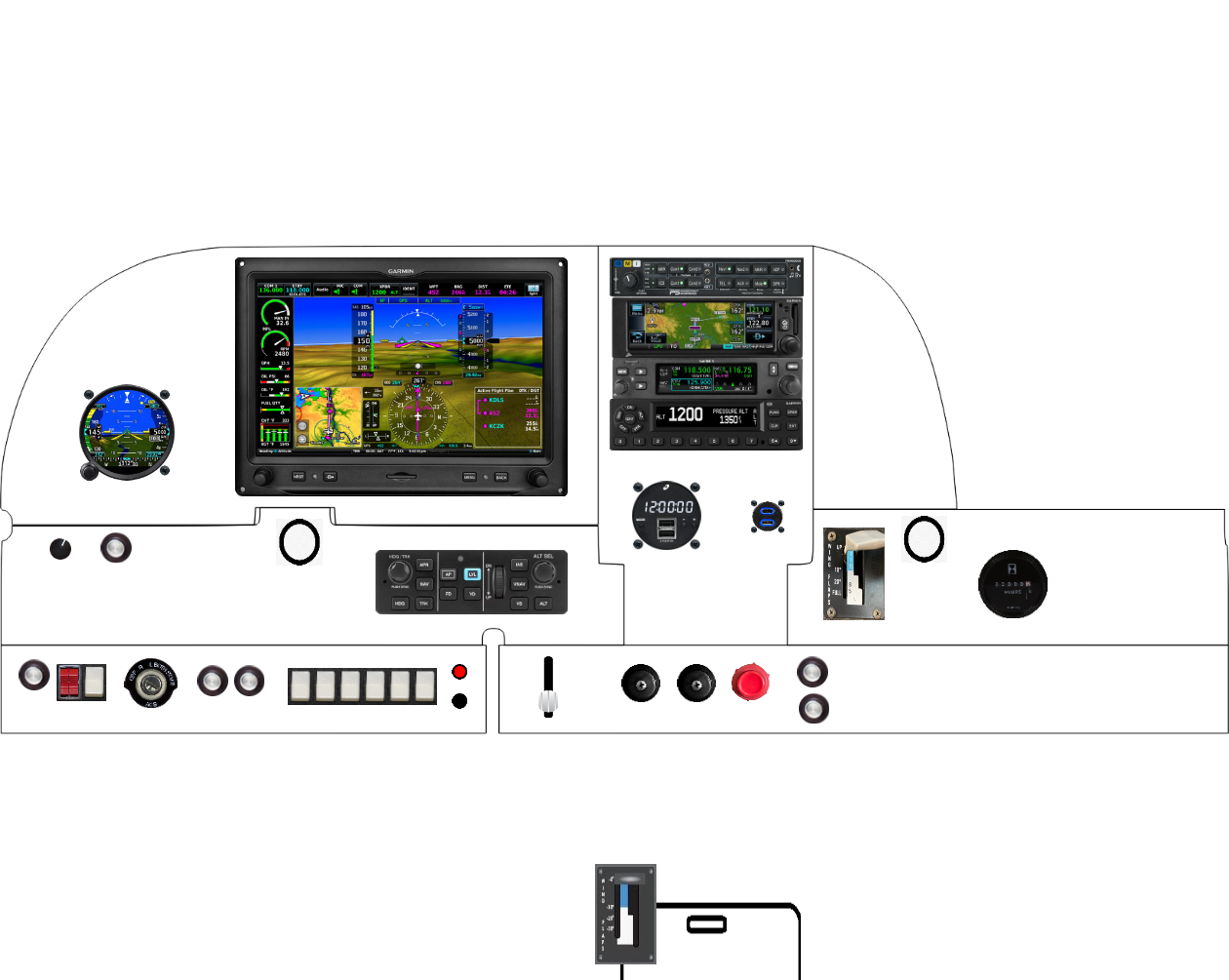

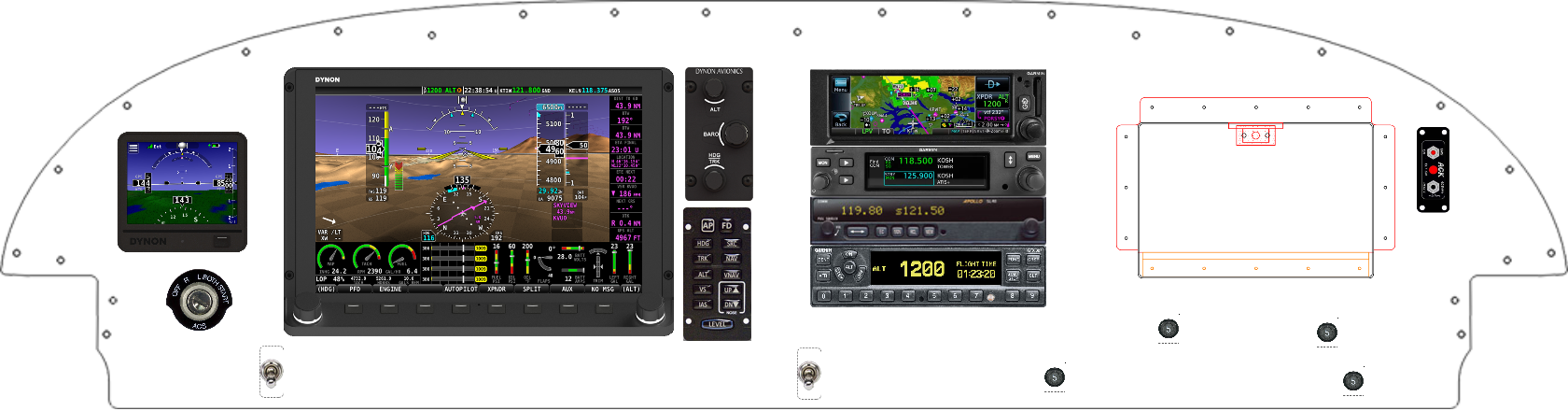

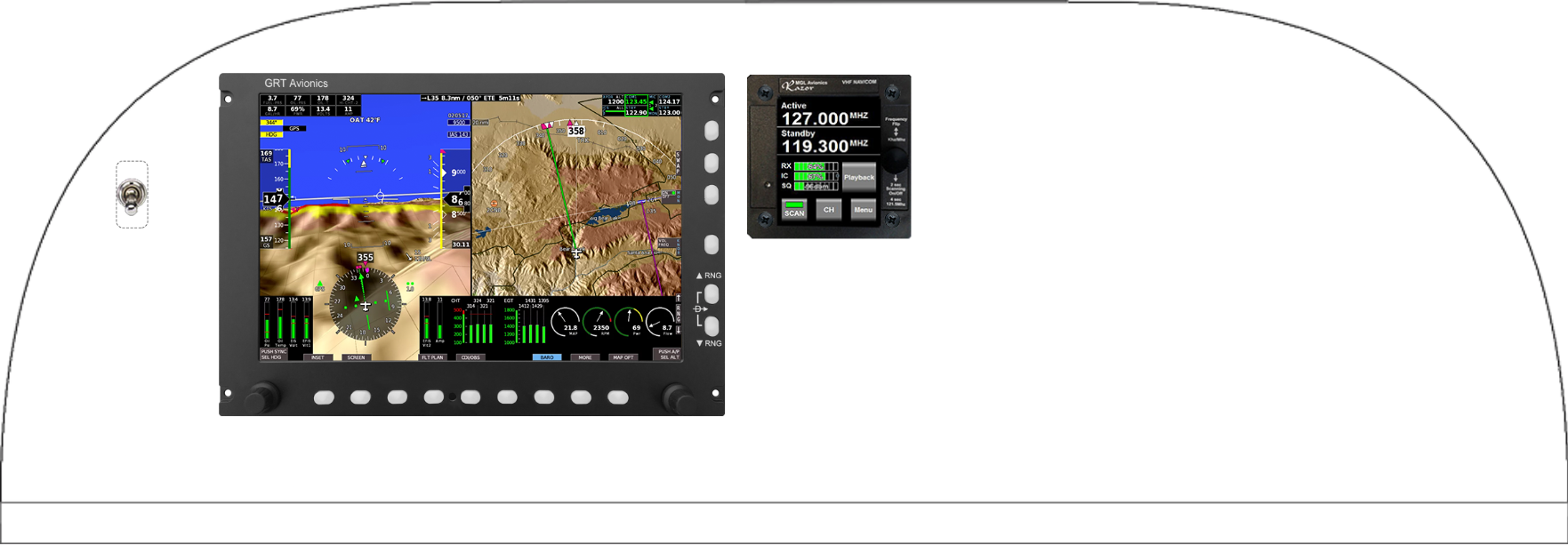

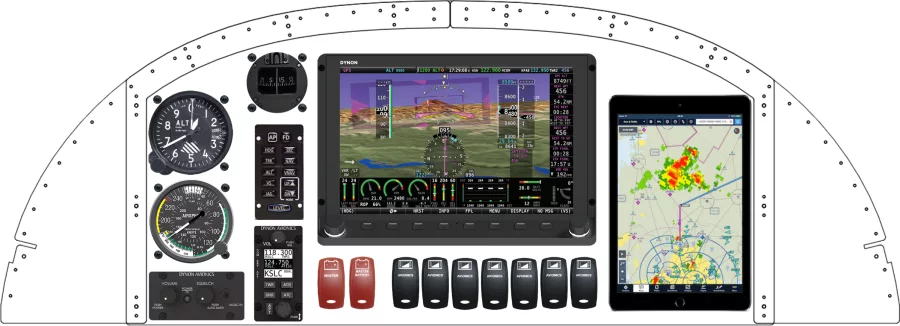

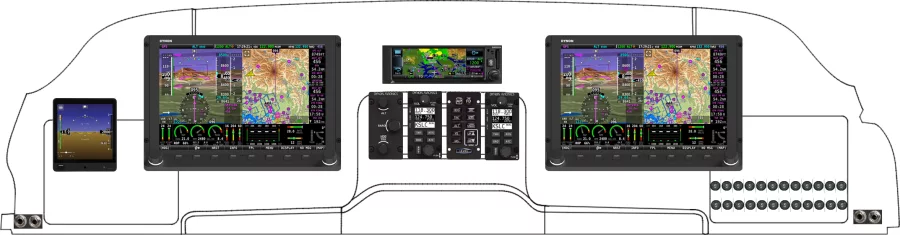

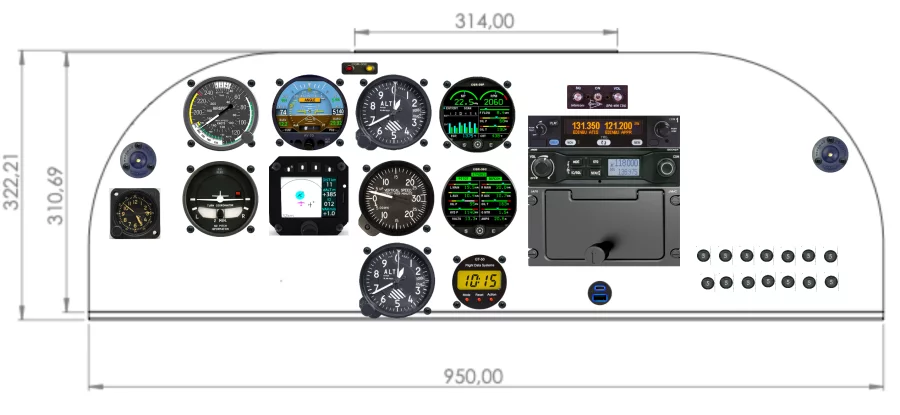

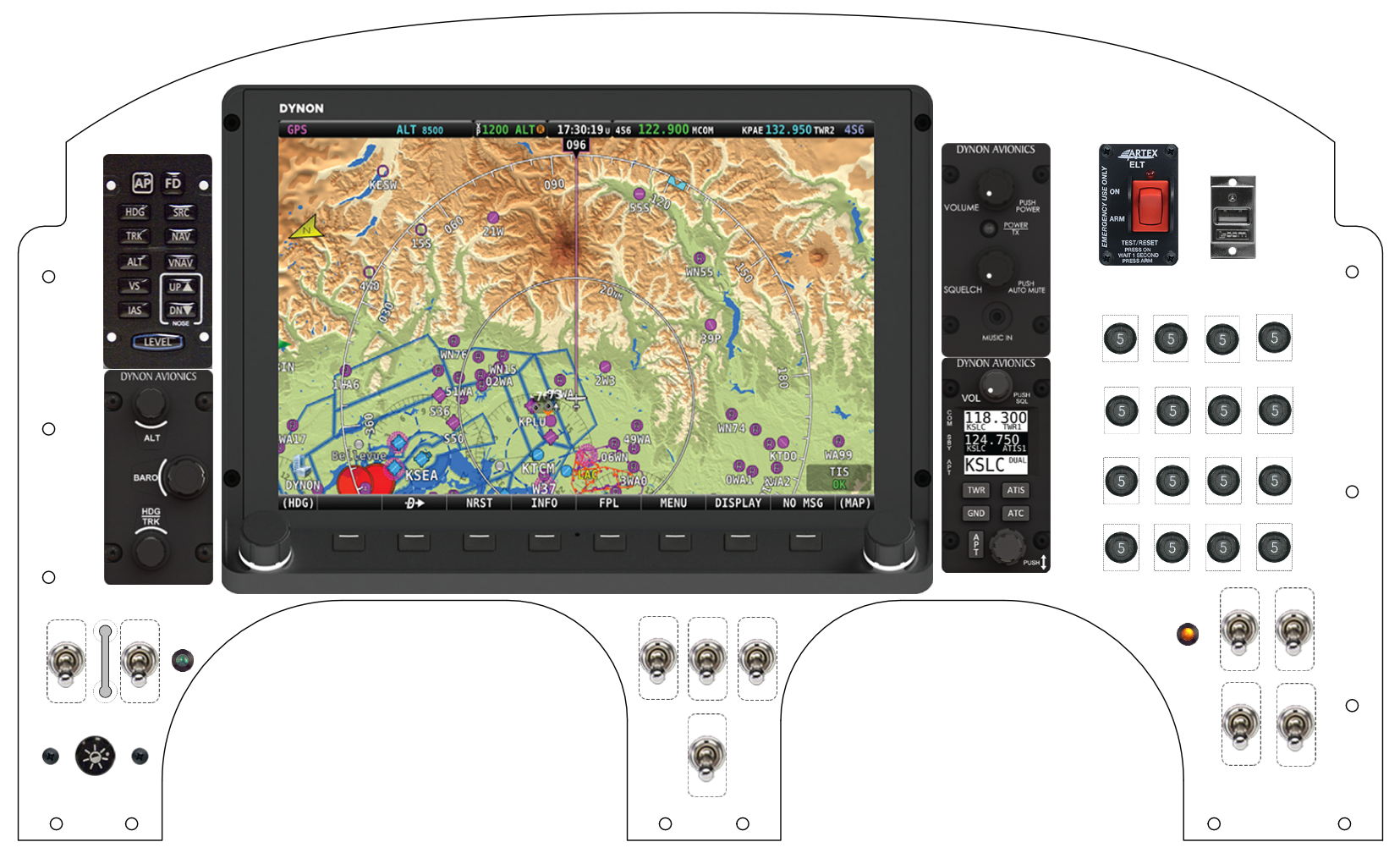

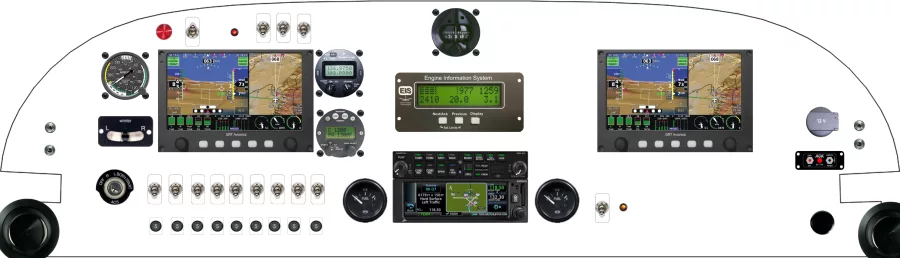

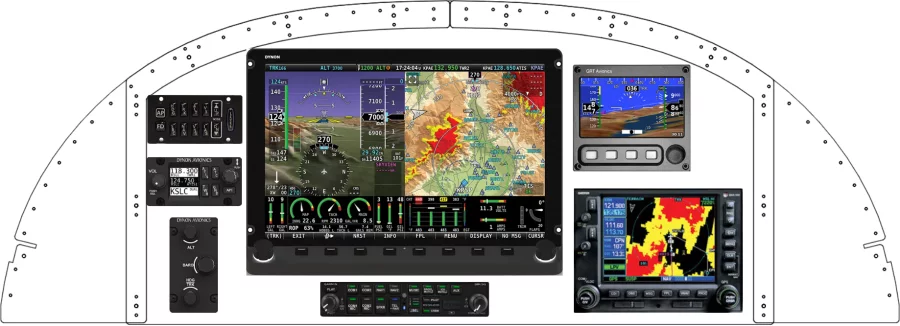

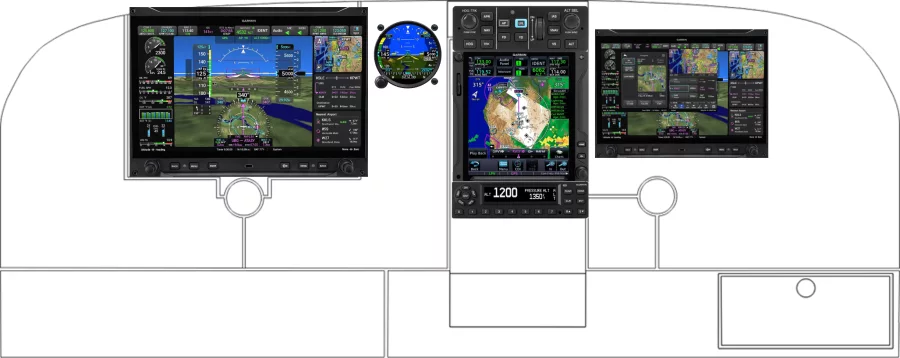

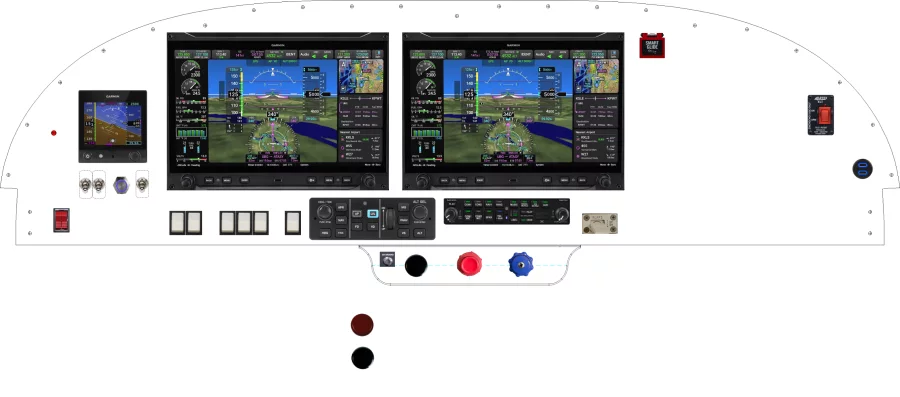

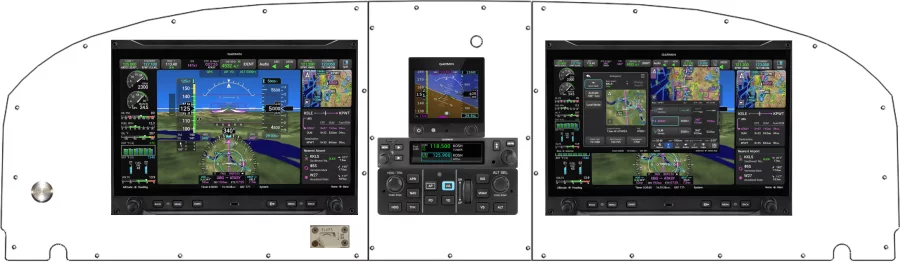

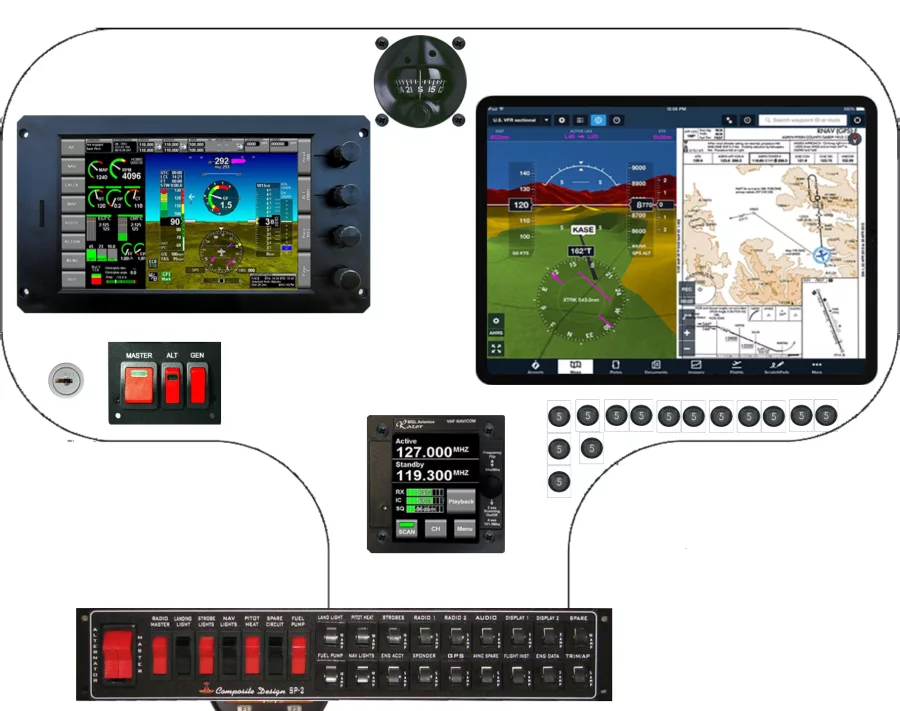

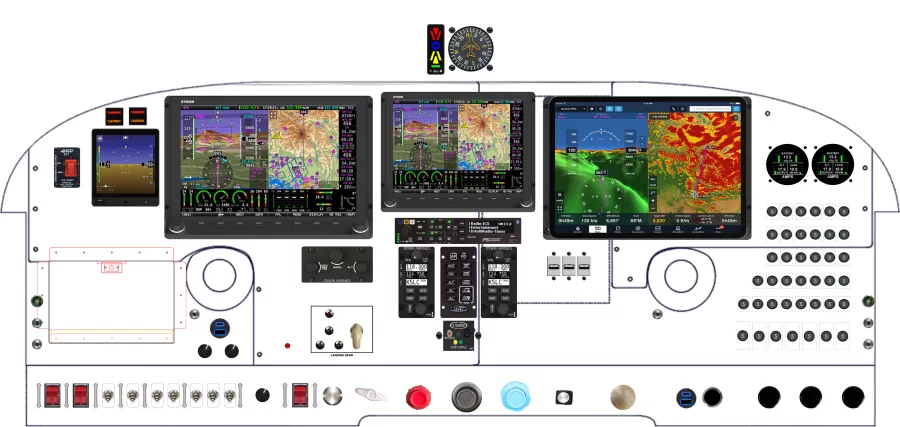

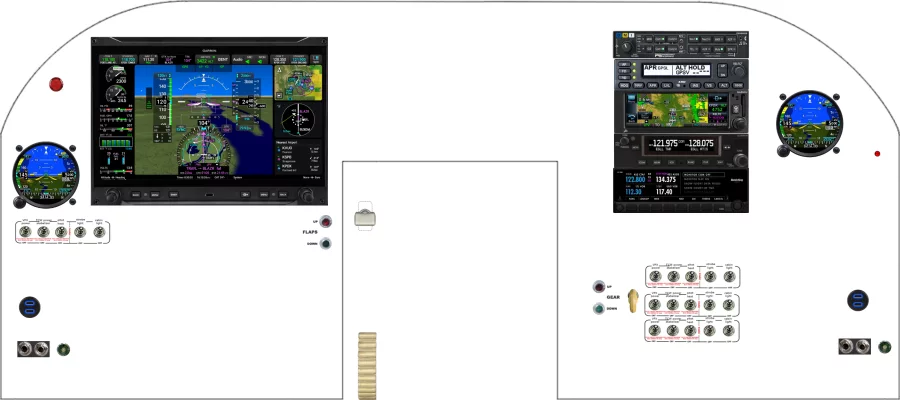

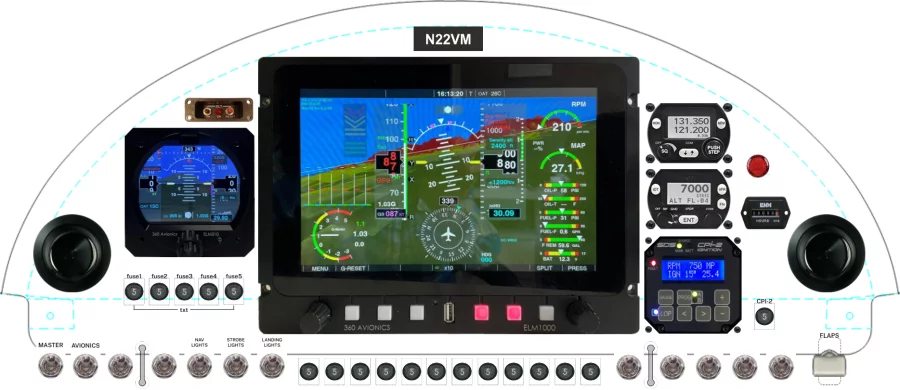

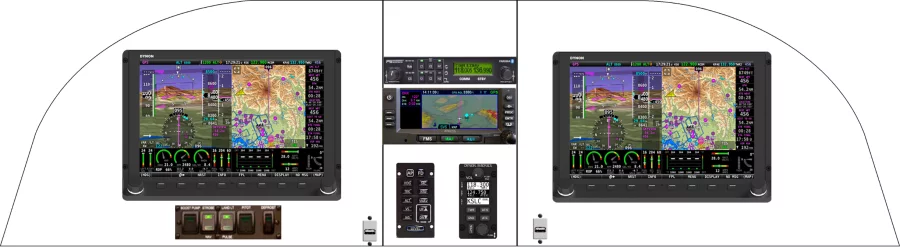

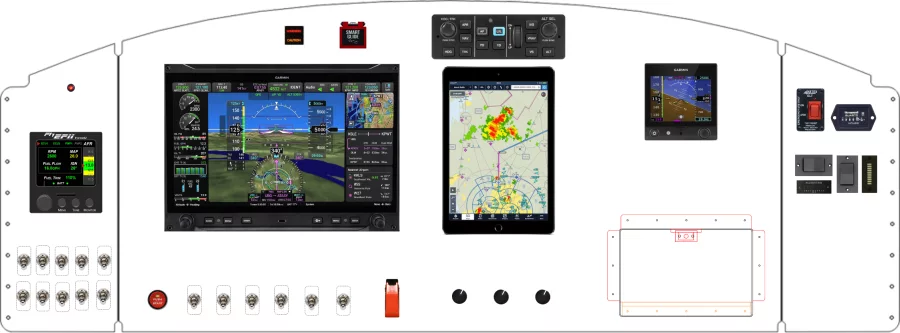

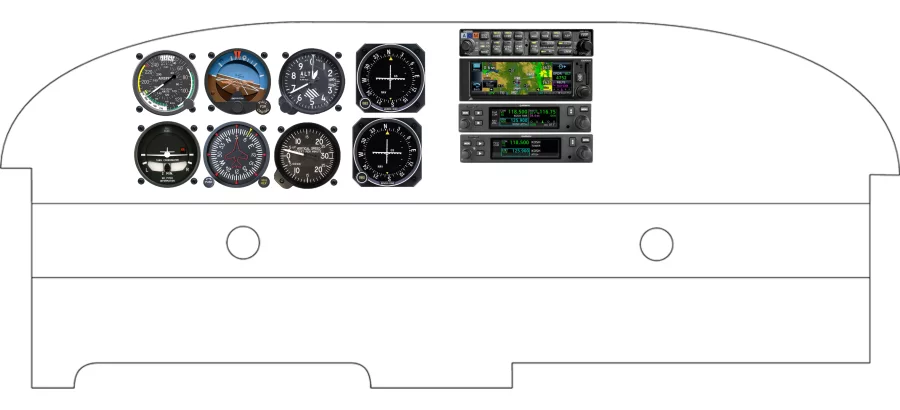

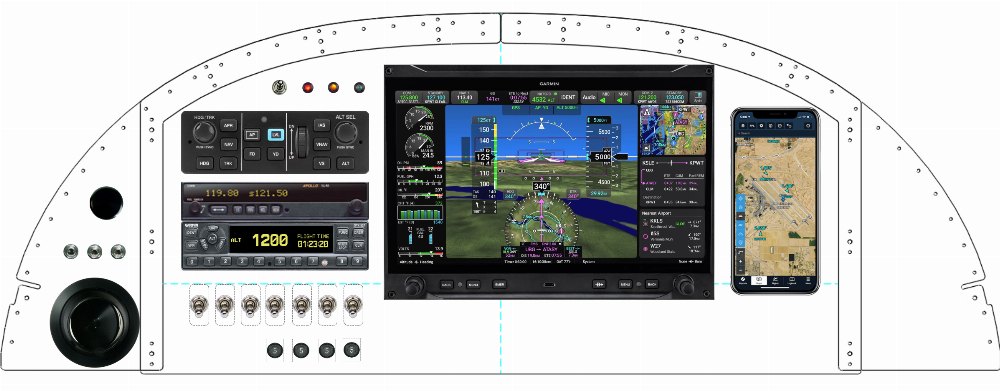

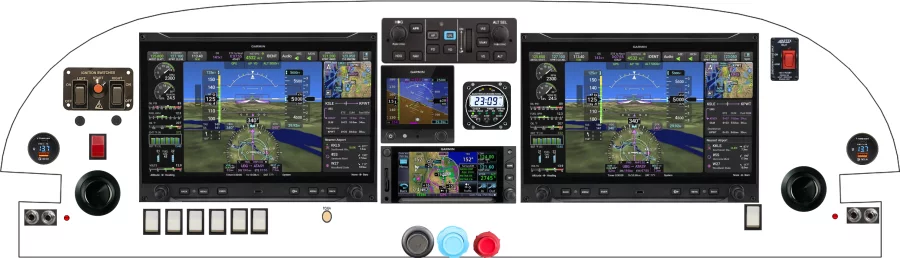

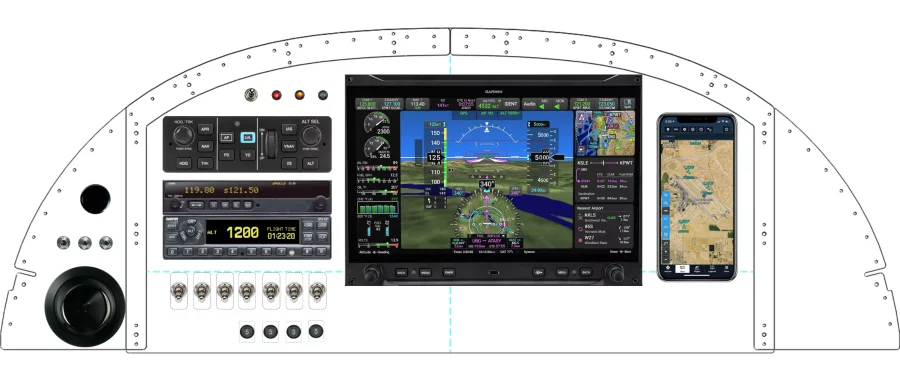

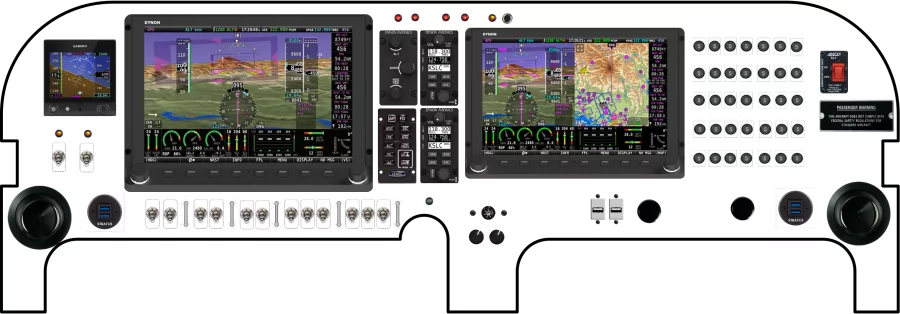

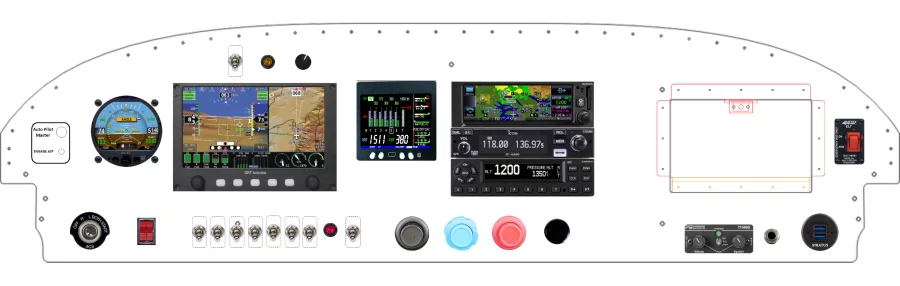

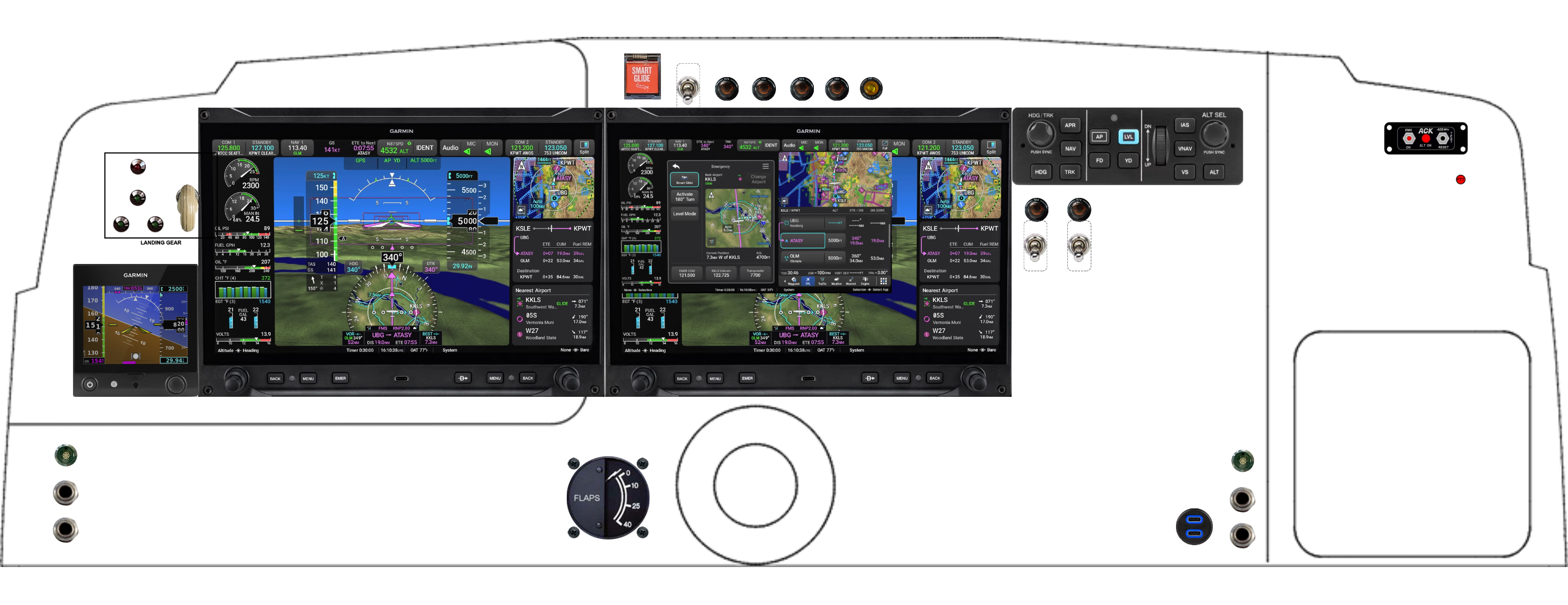

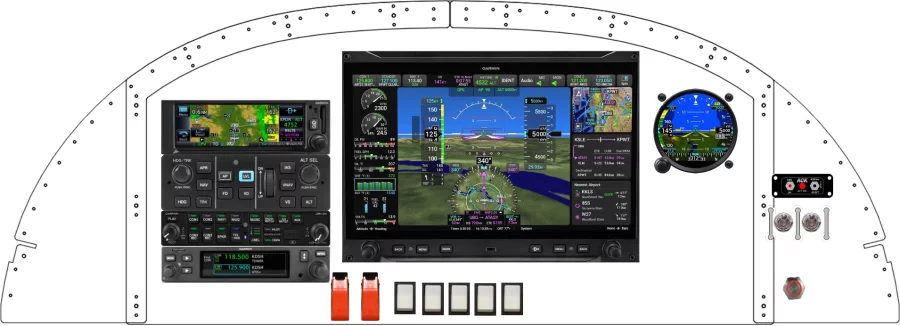

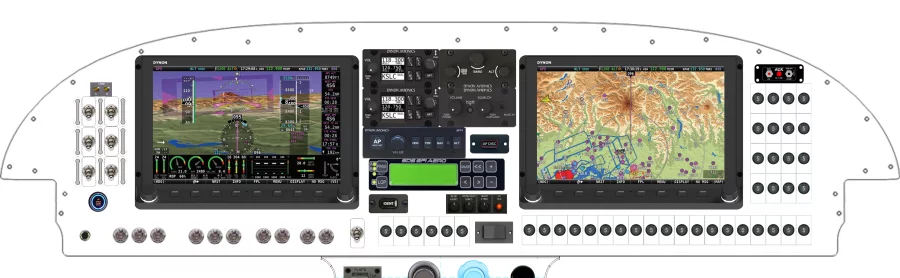

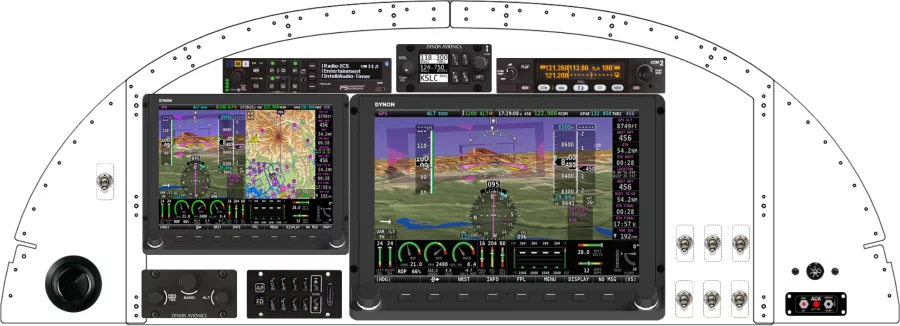

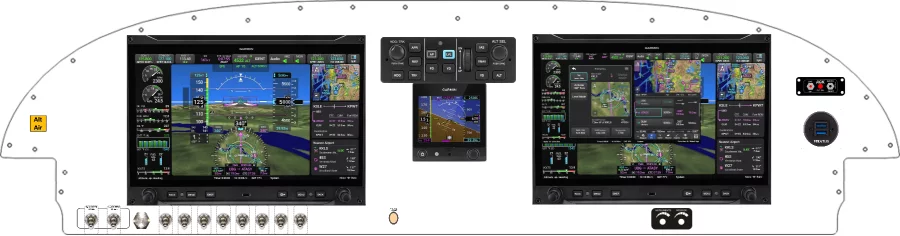

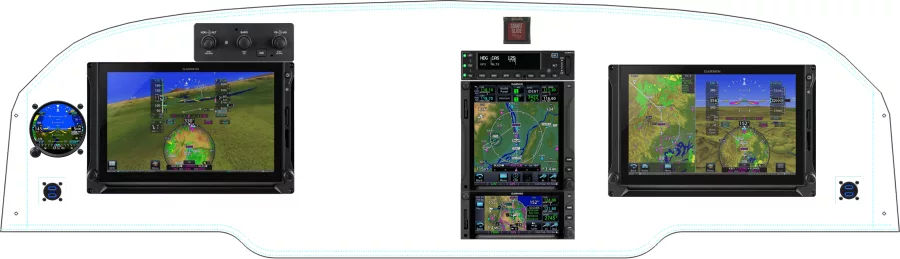

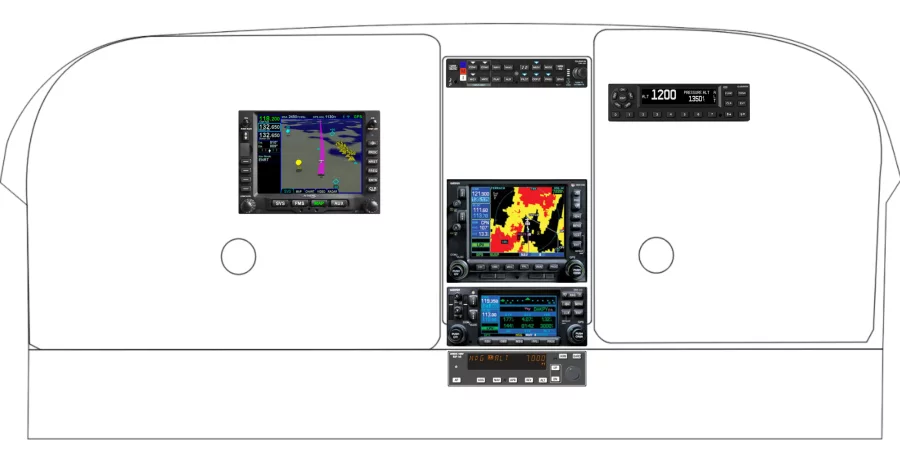

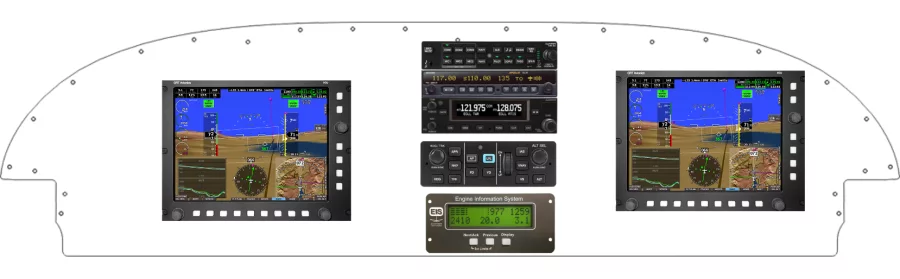

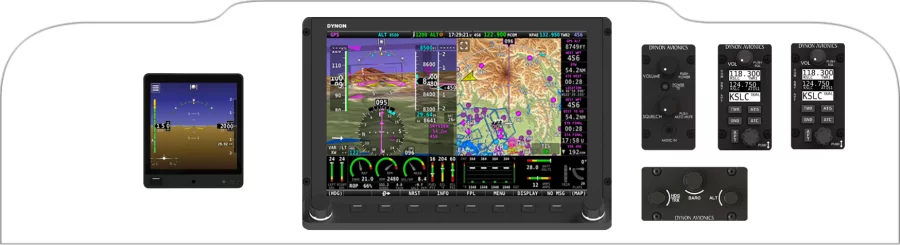

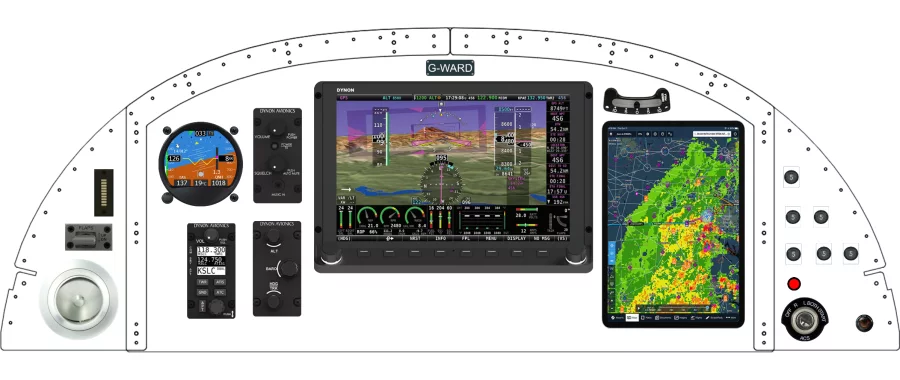

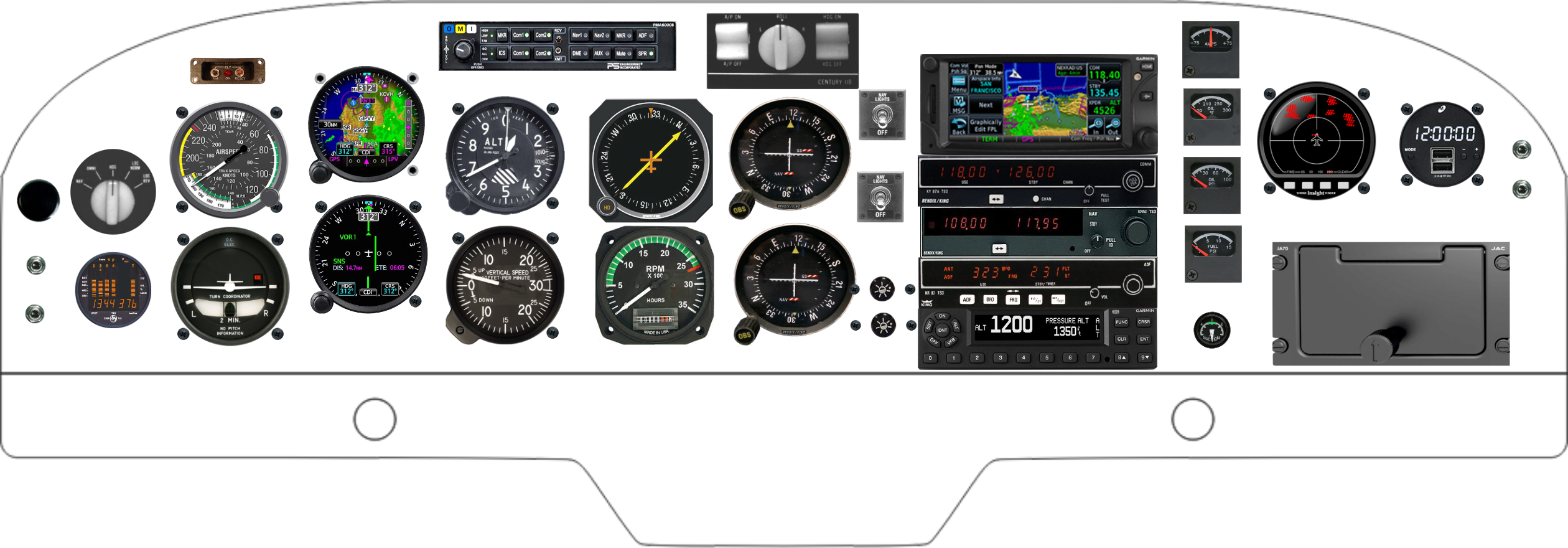

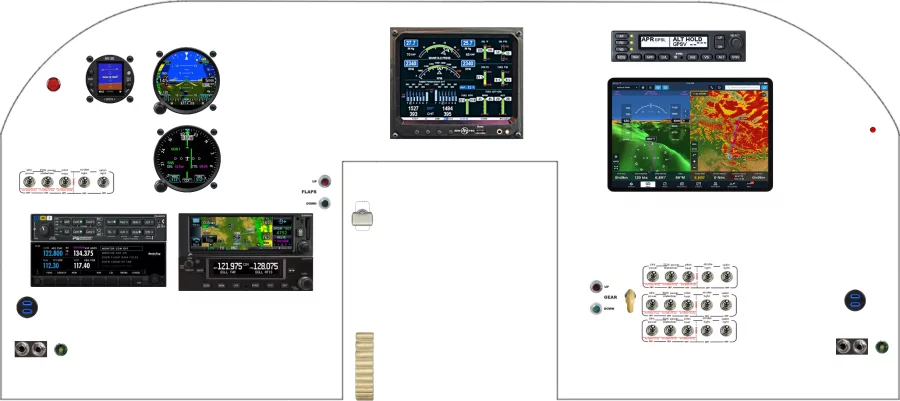

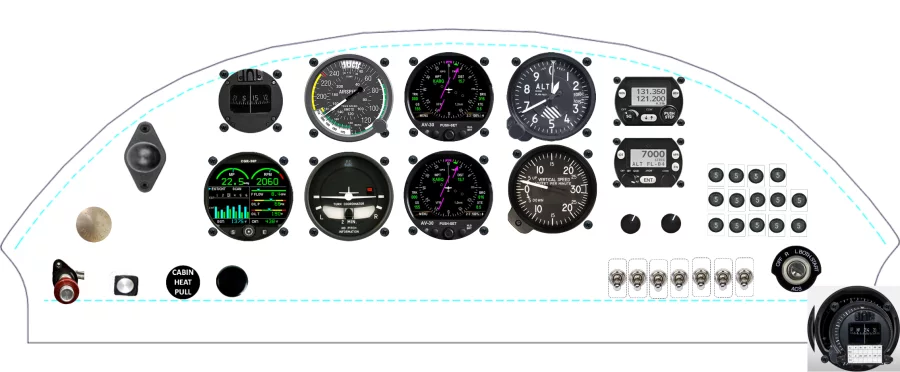

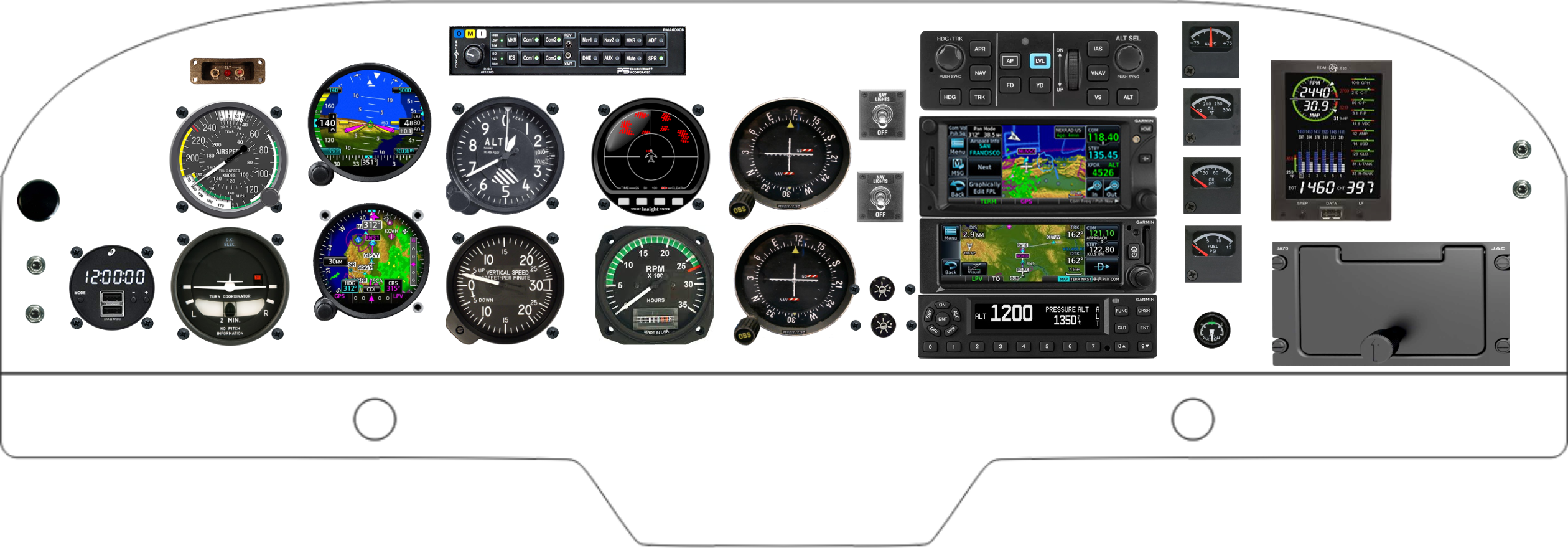

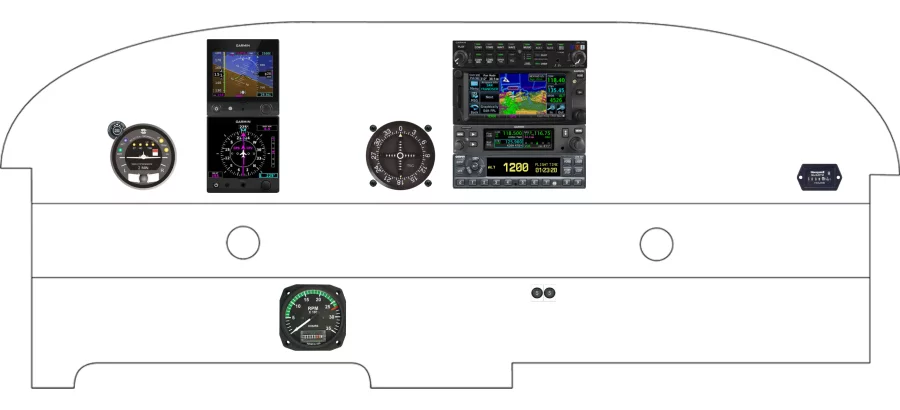

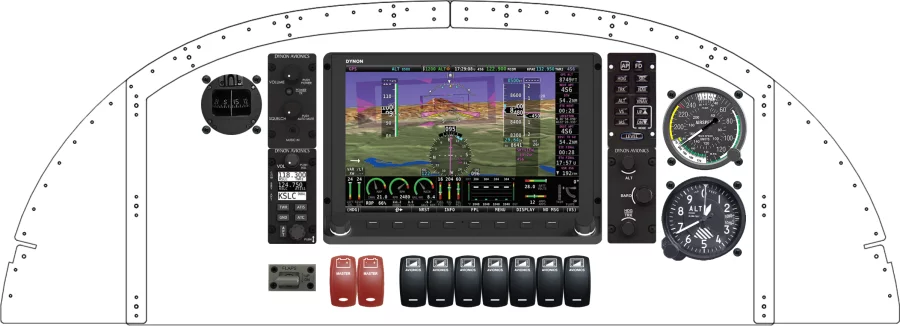

Featured panels

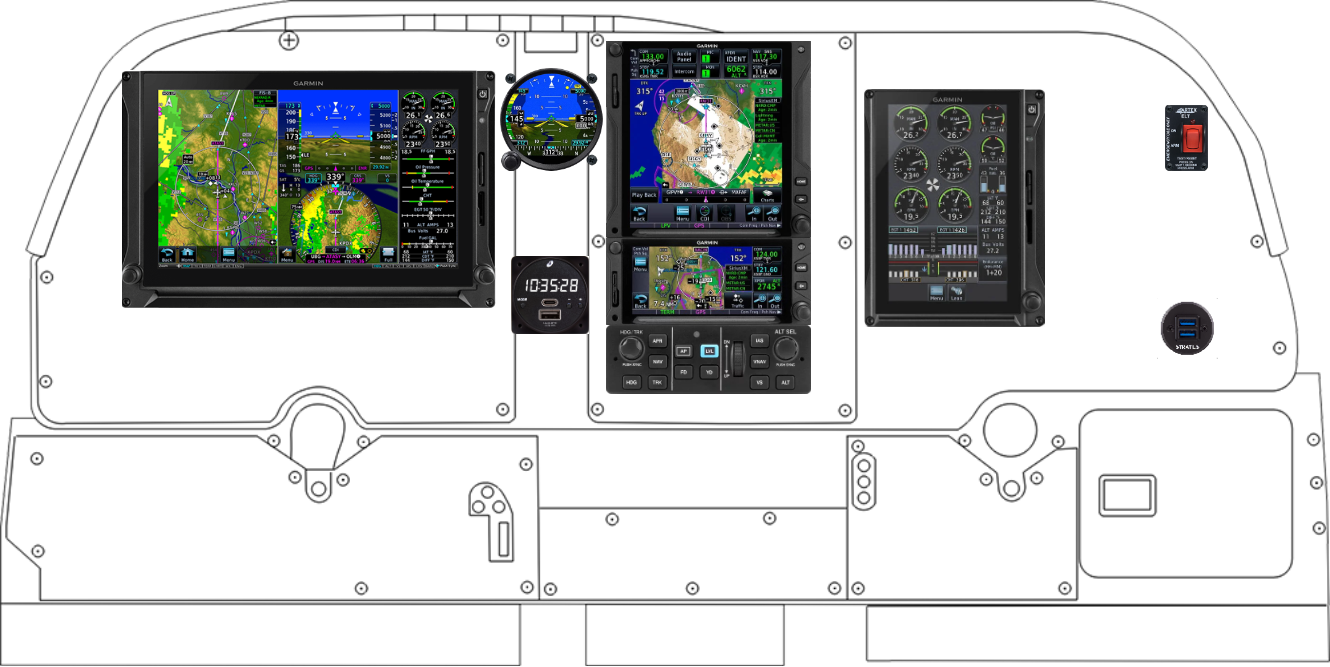

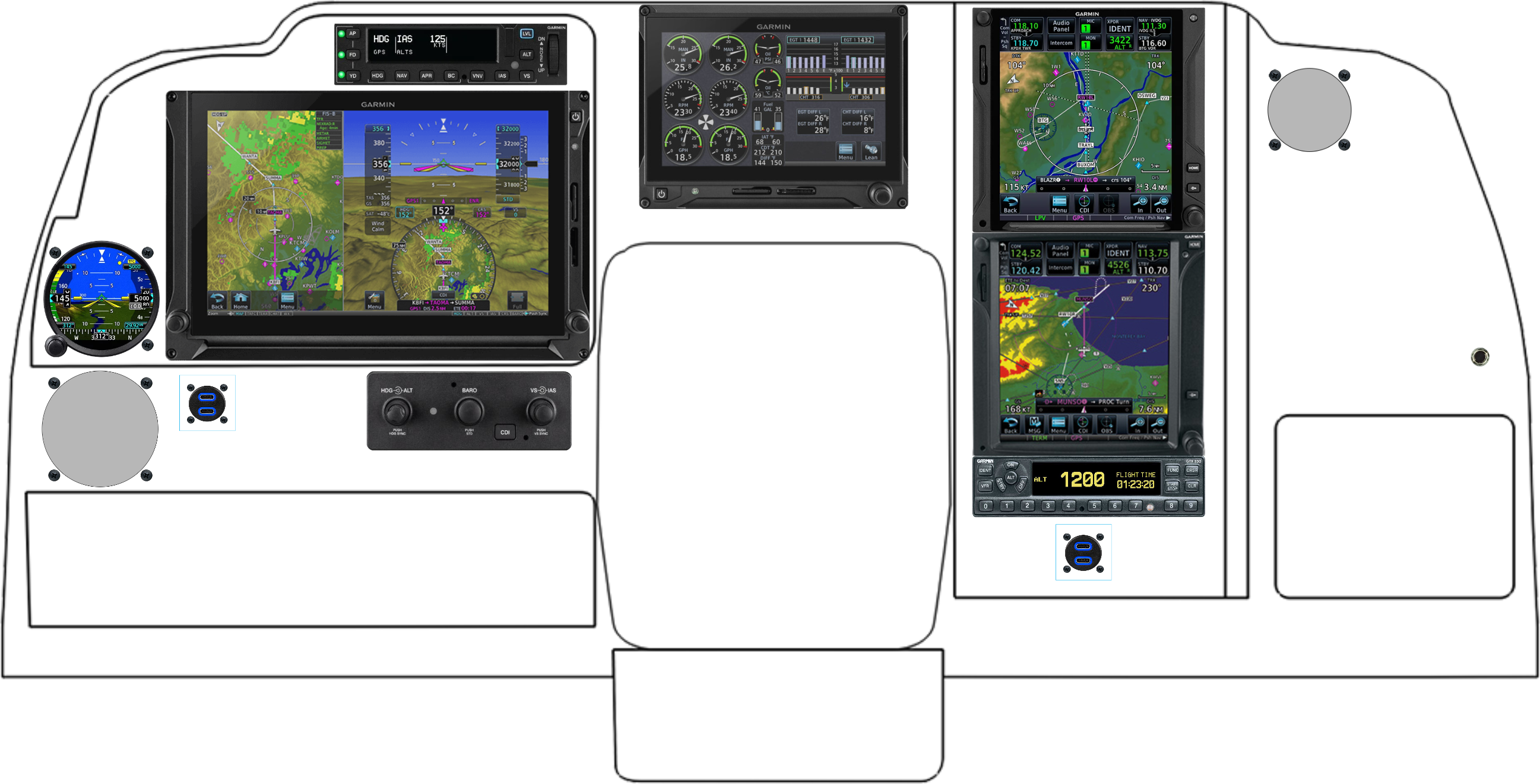

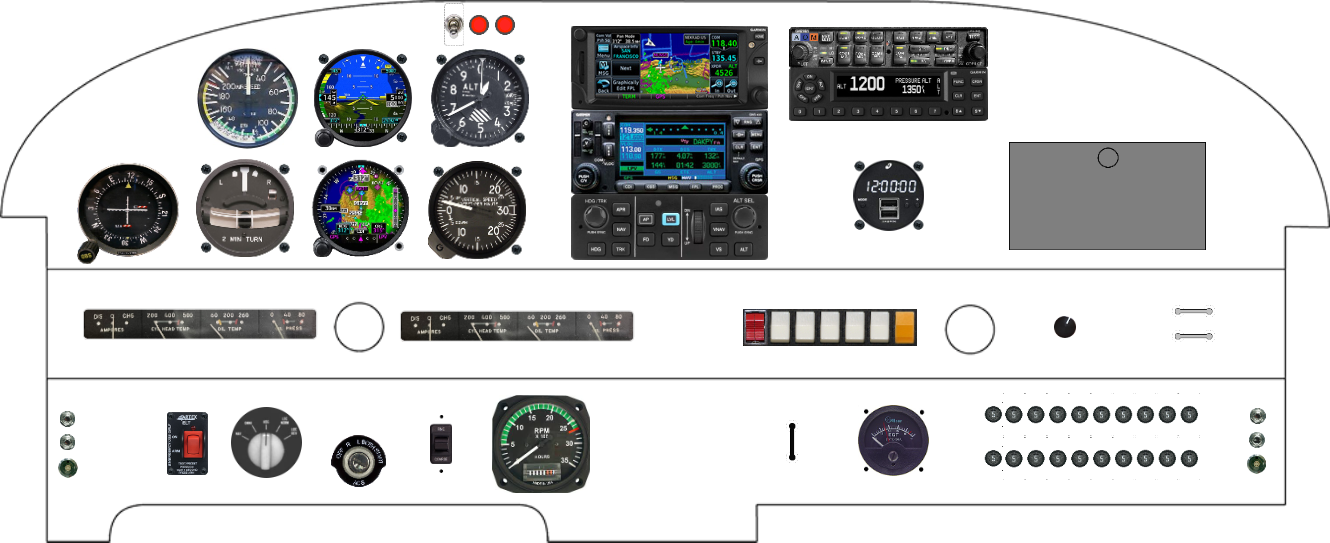

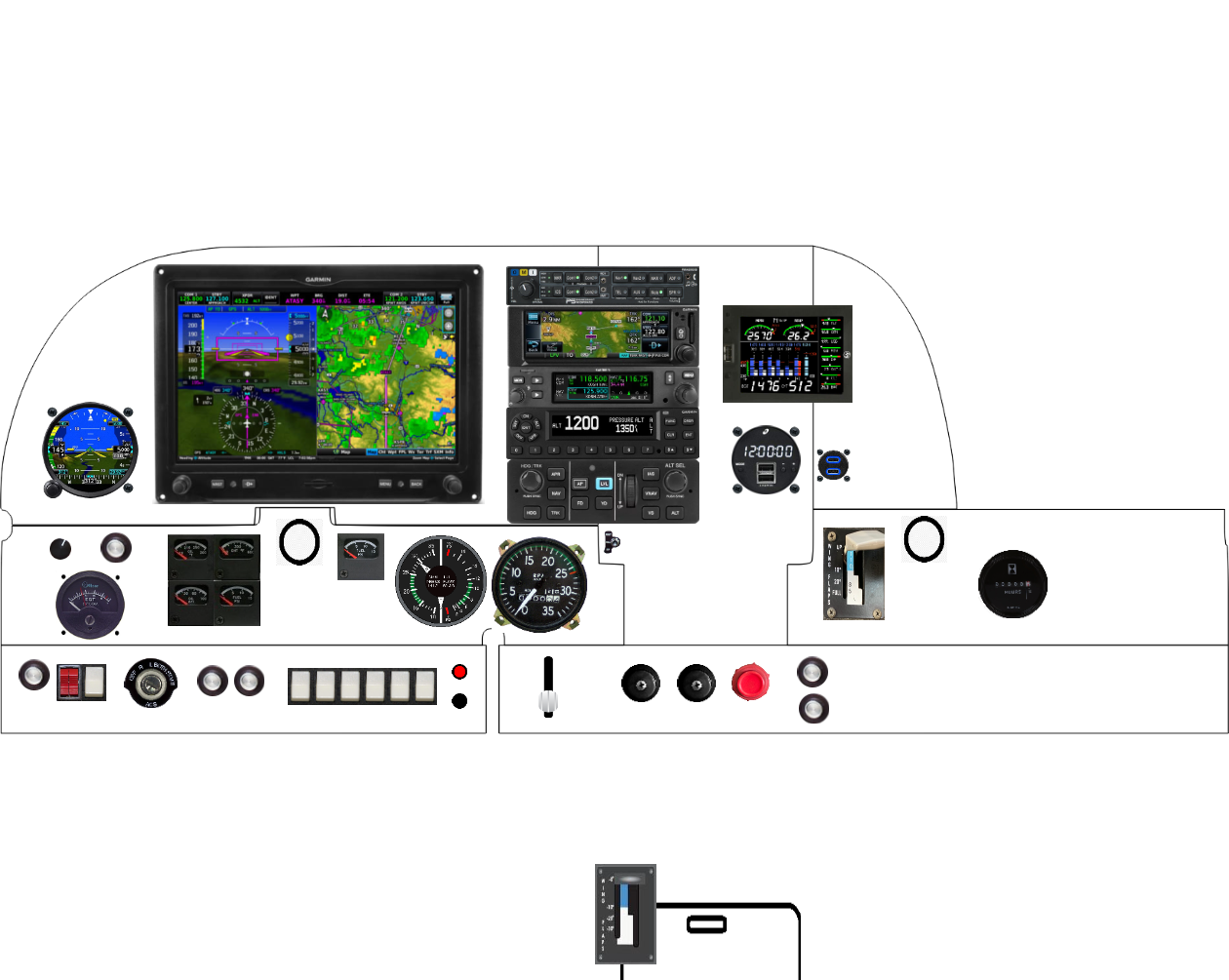

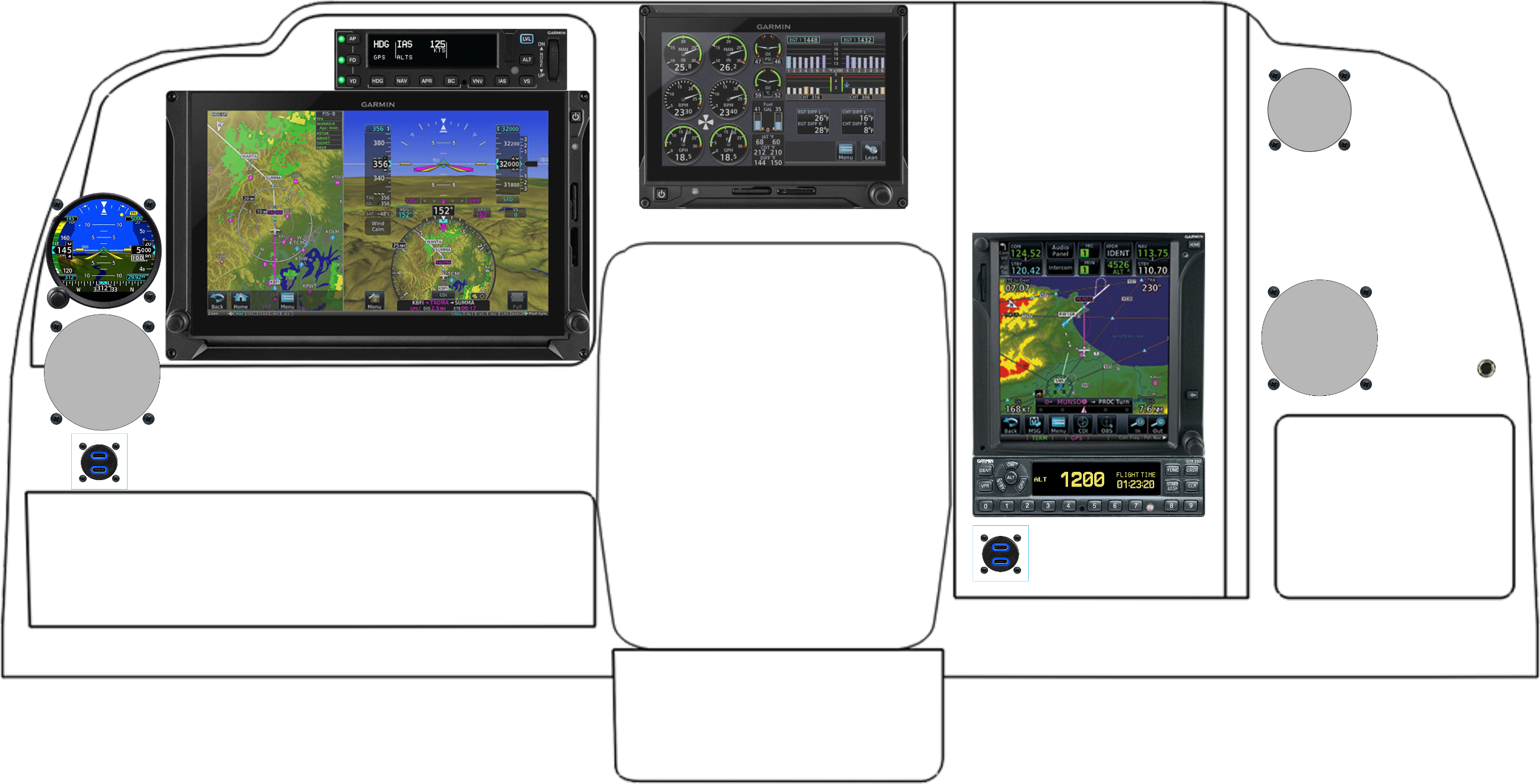

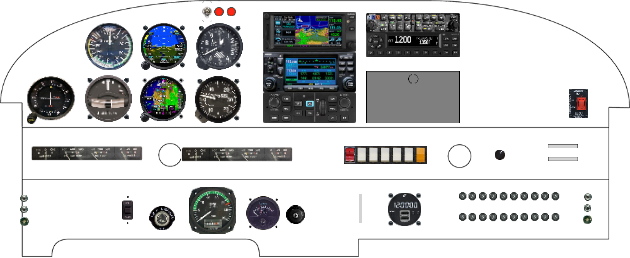

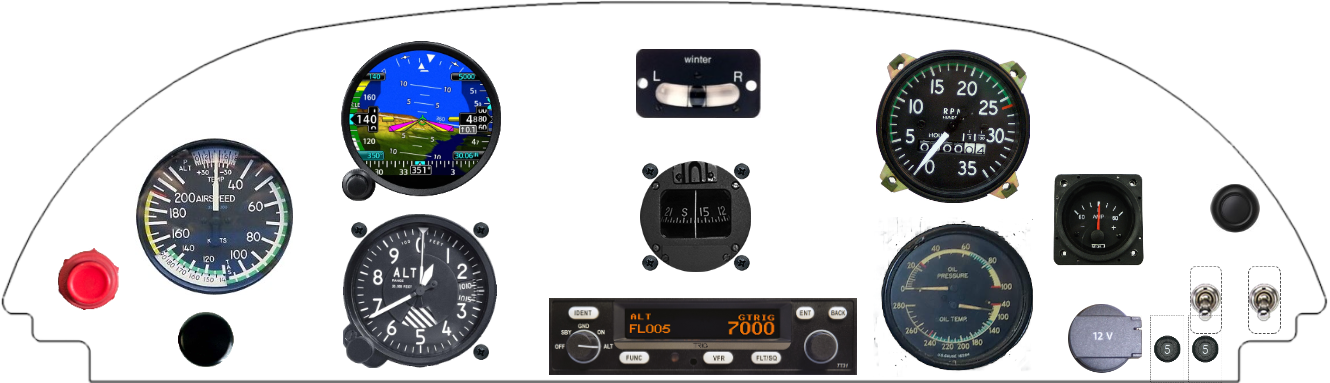

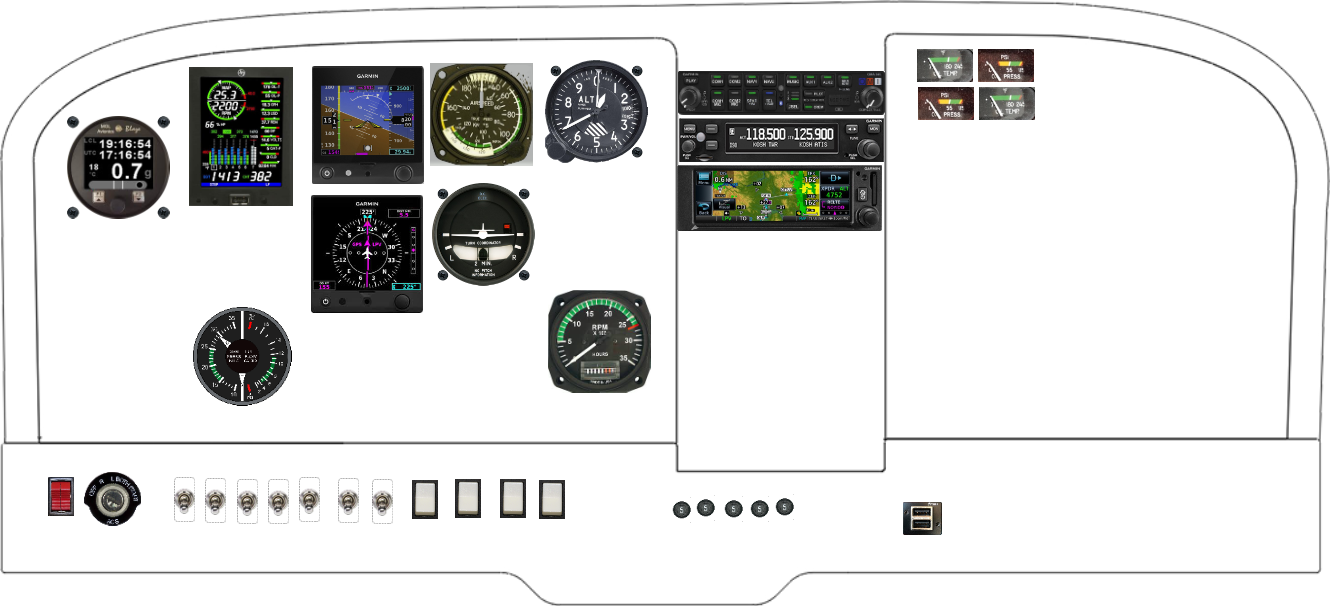

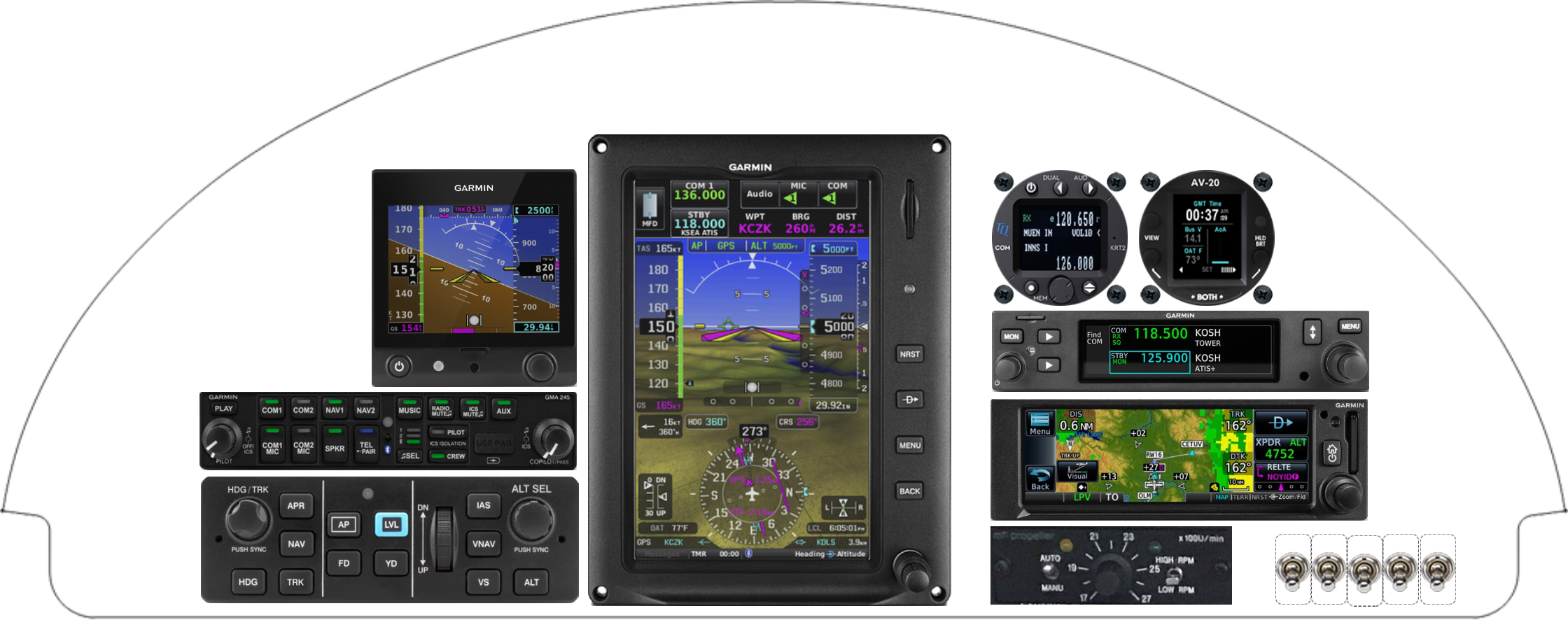

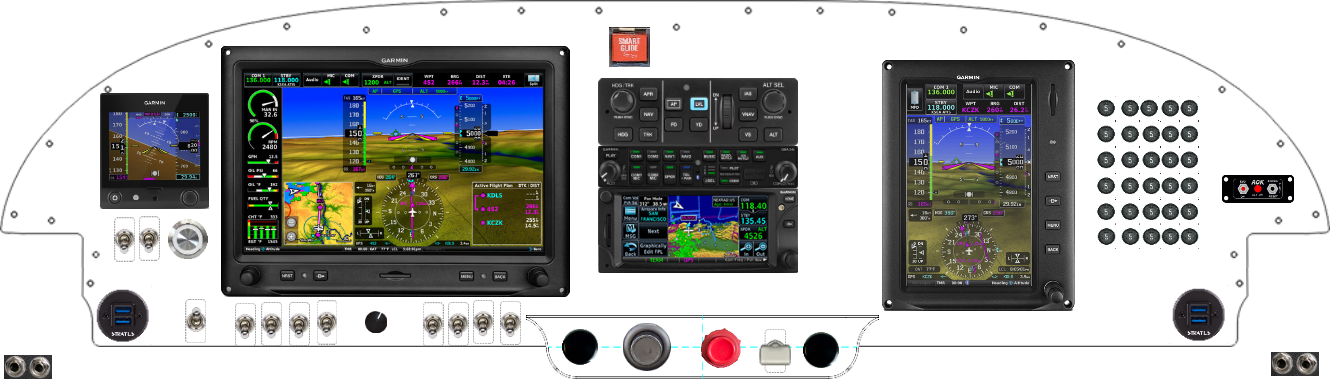

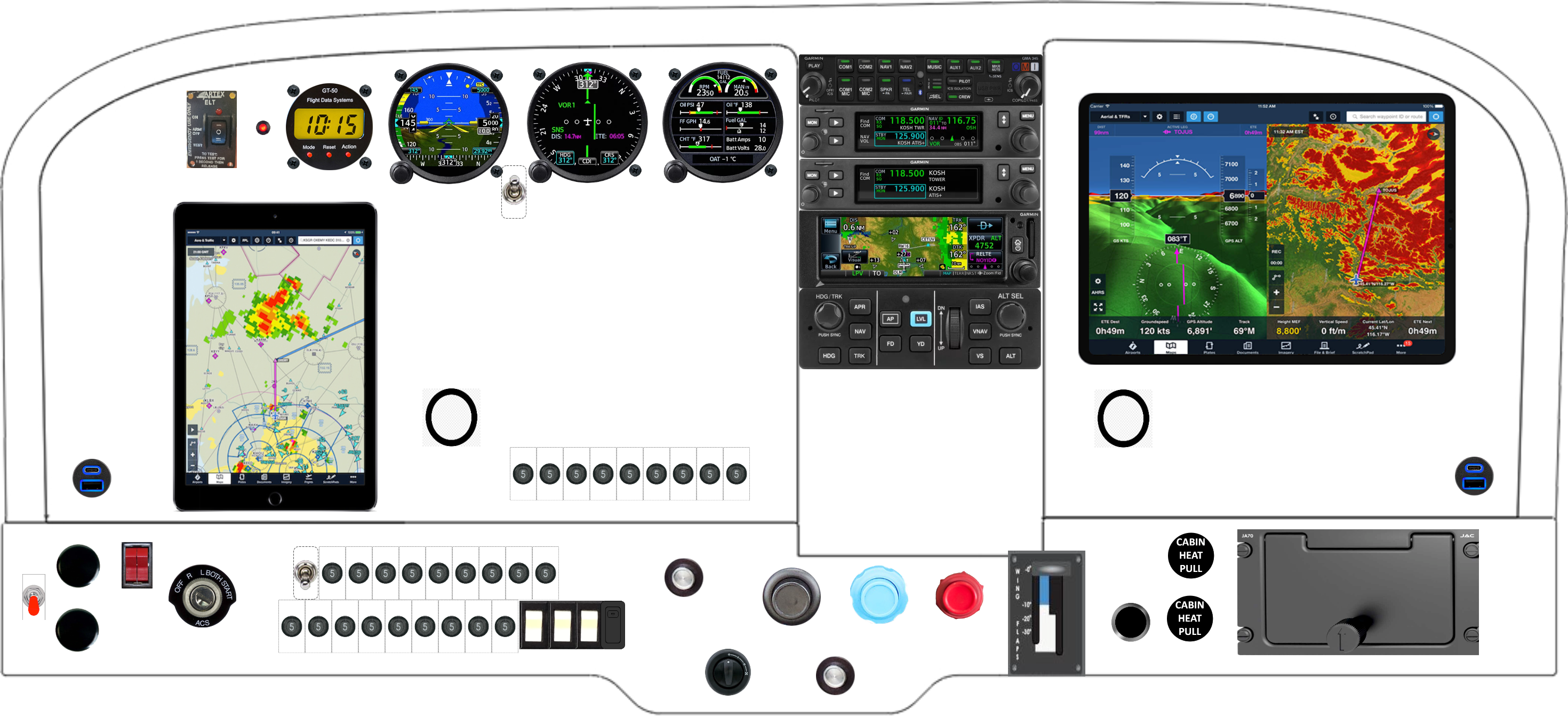

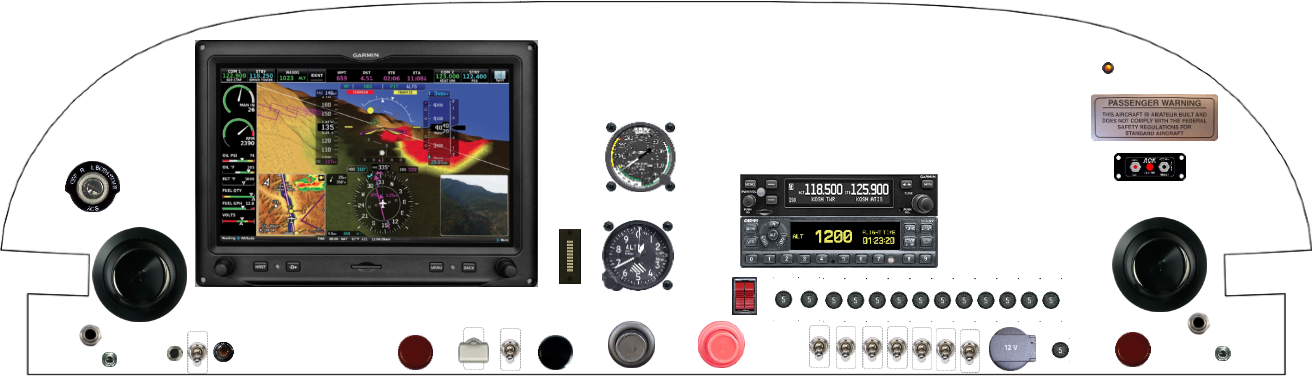

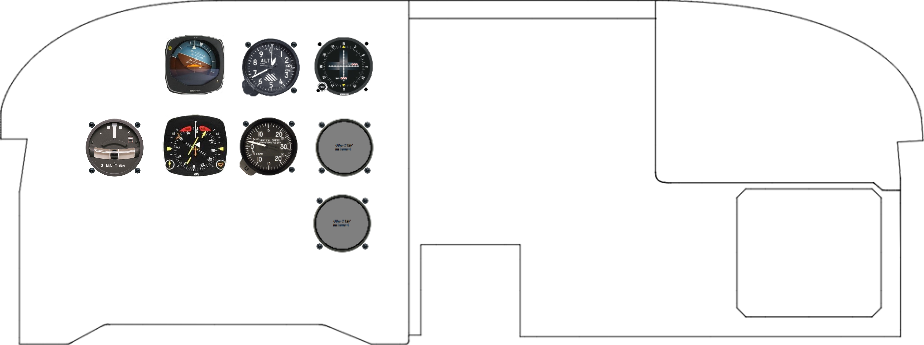

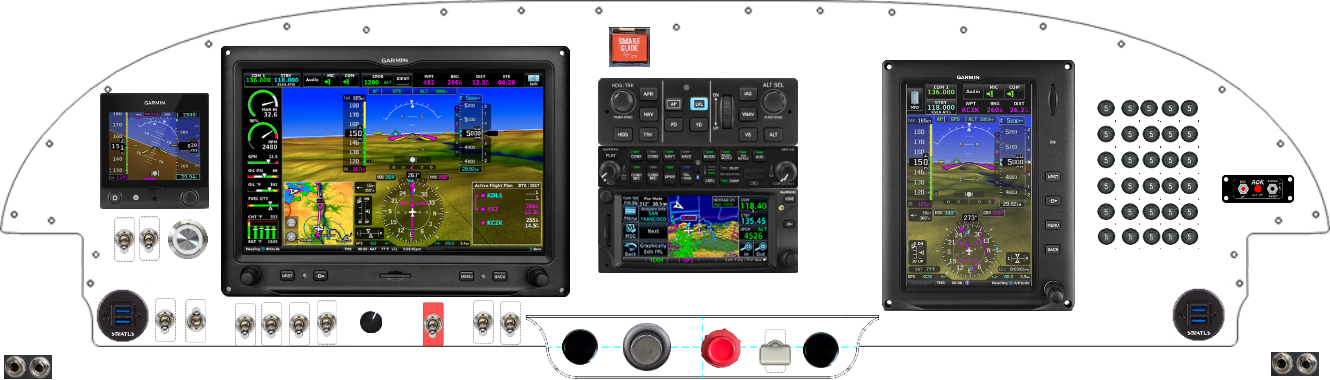

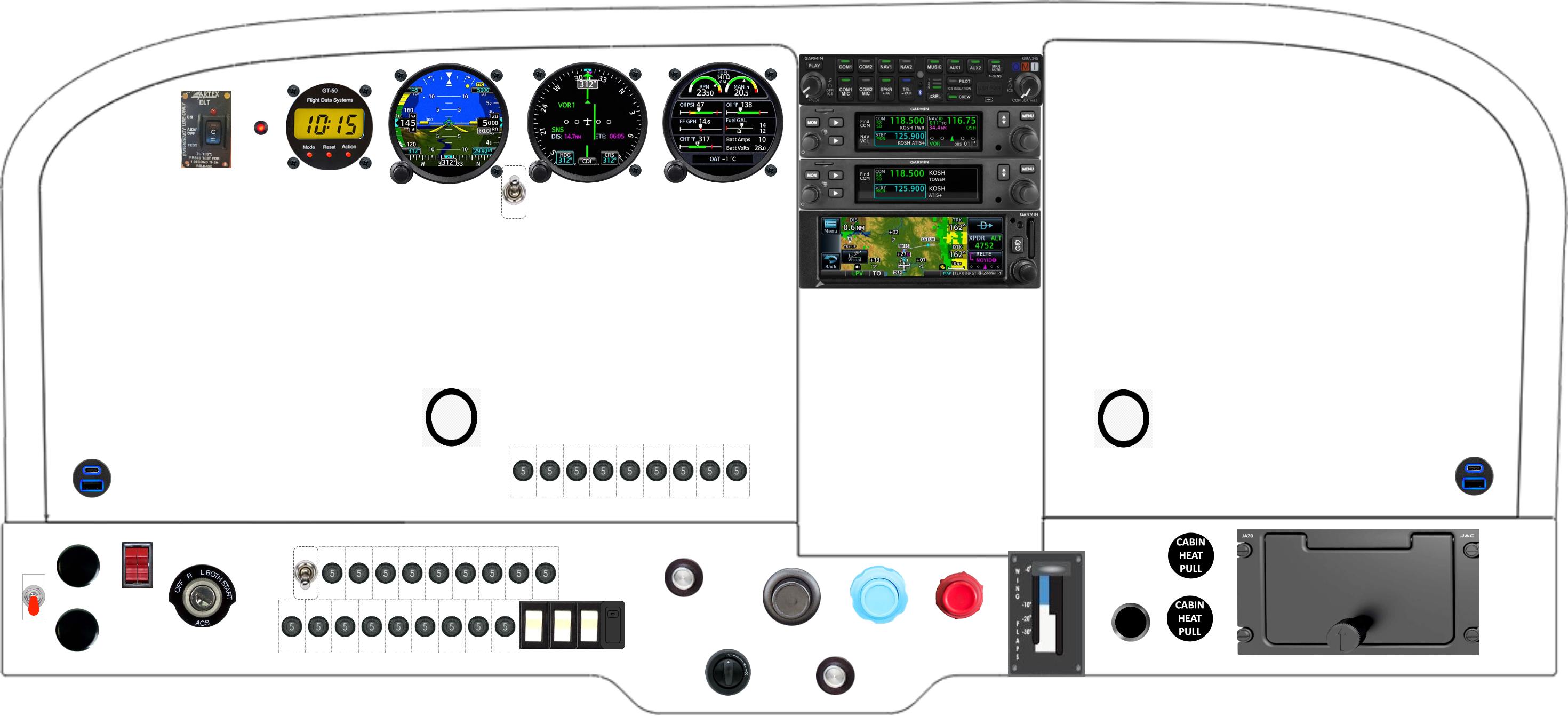

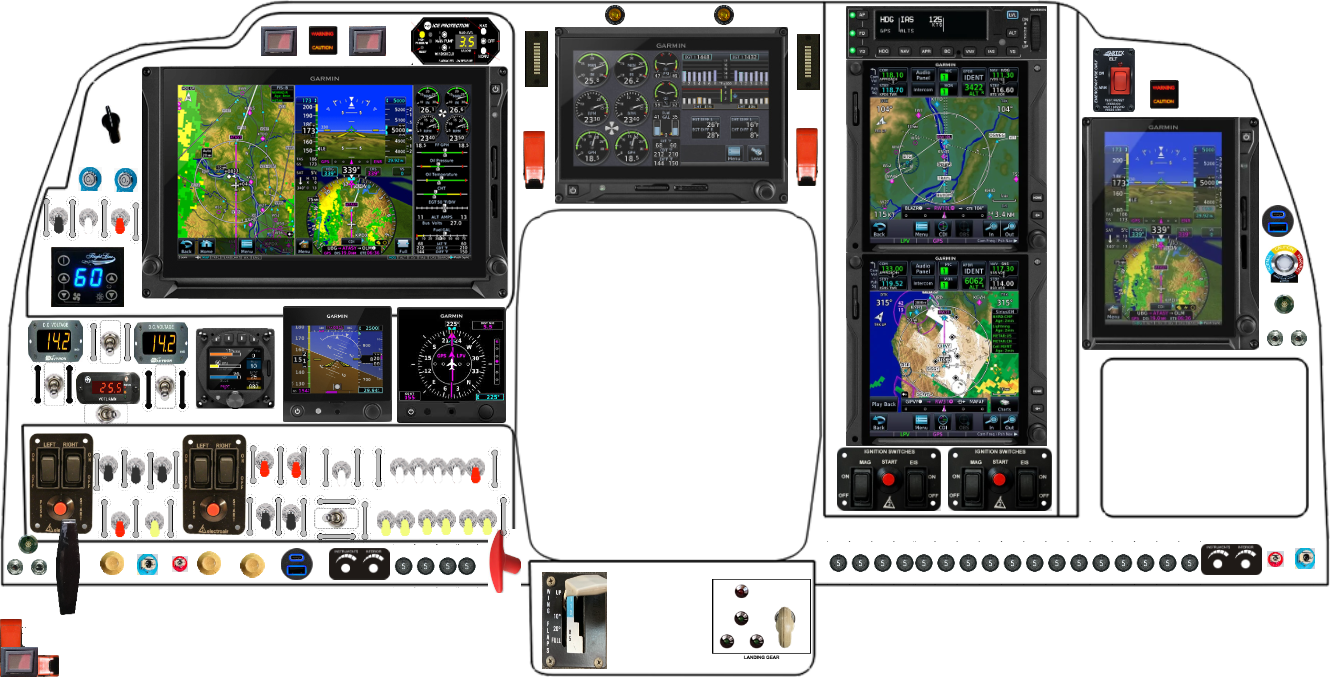

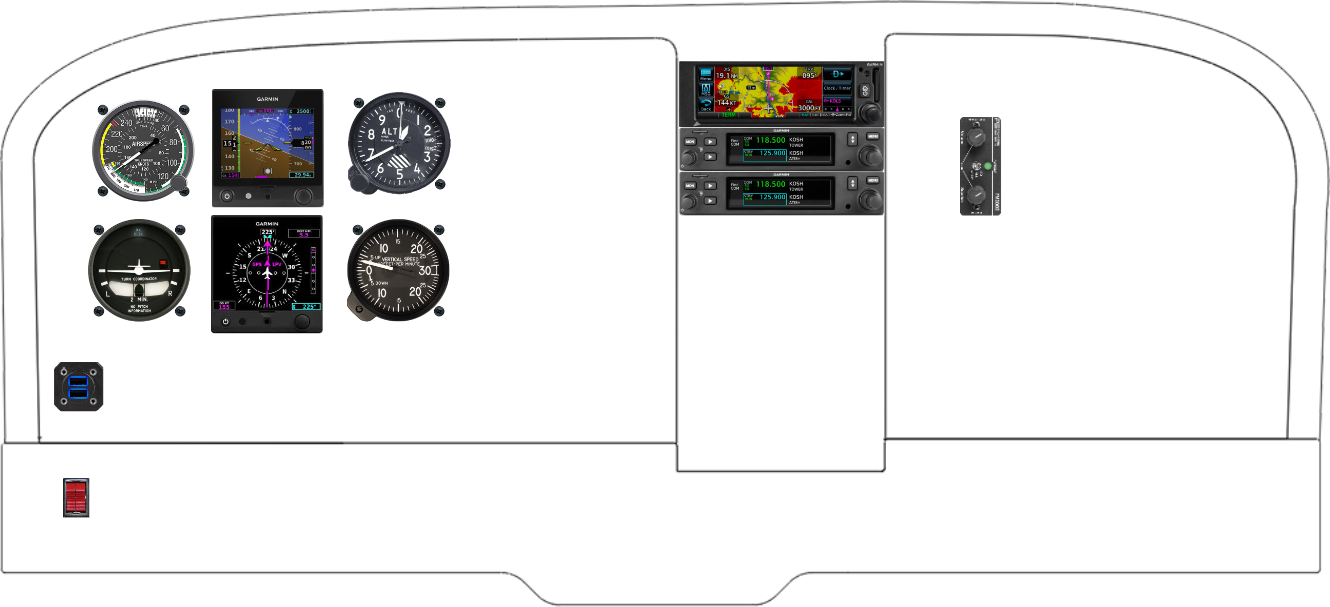

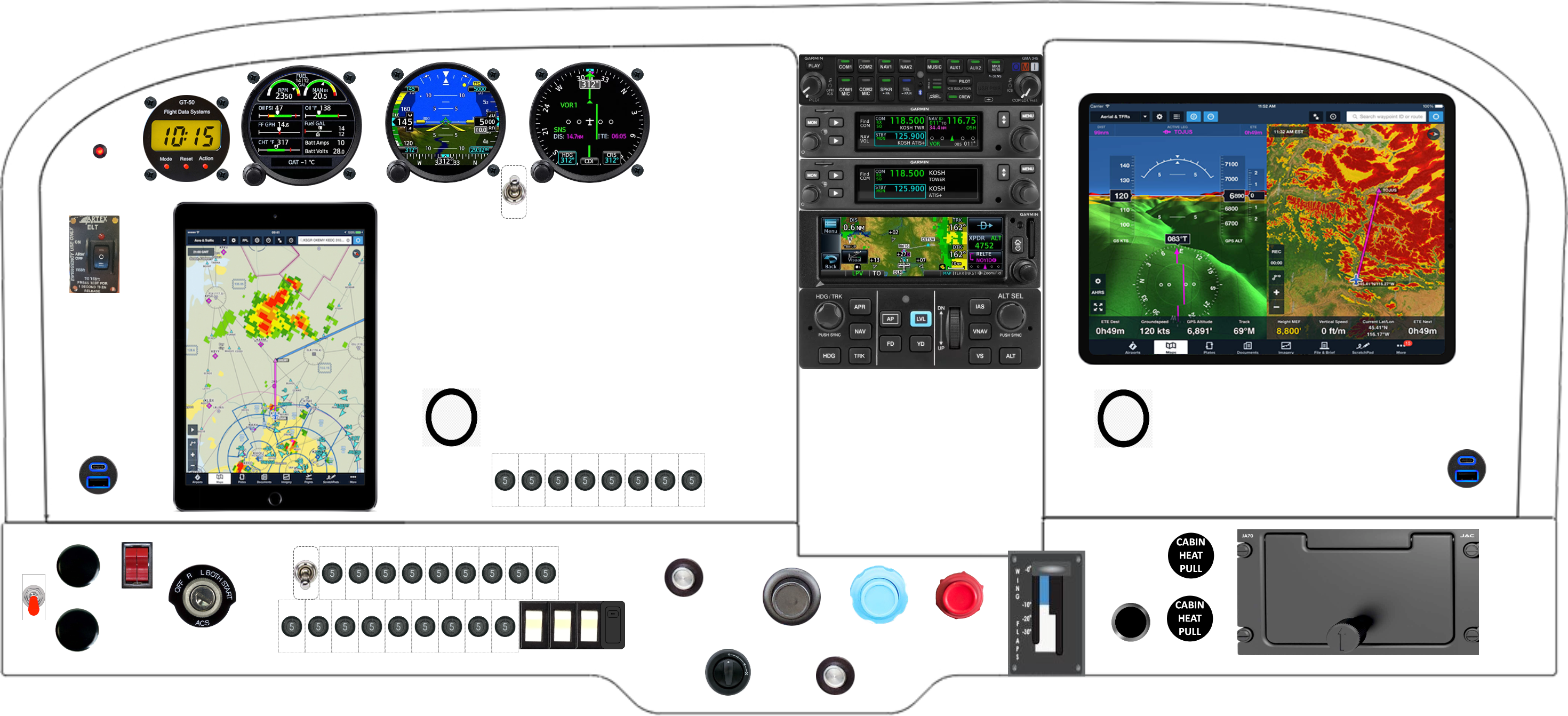

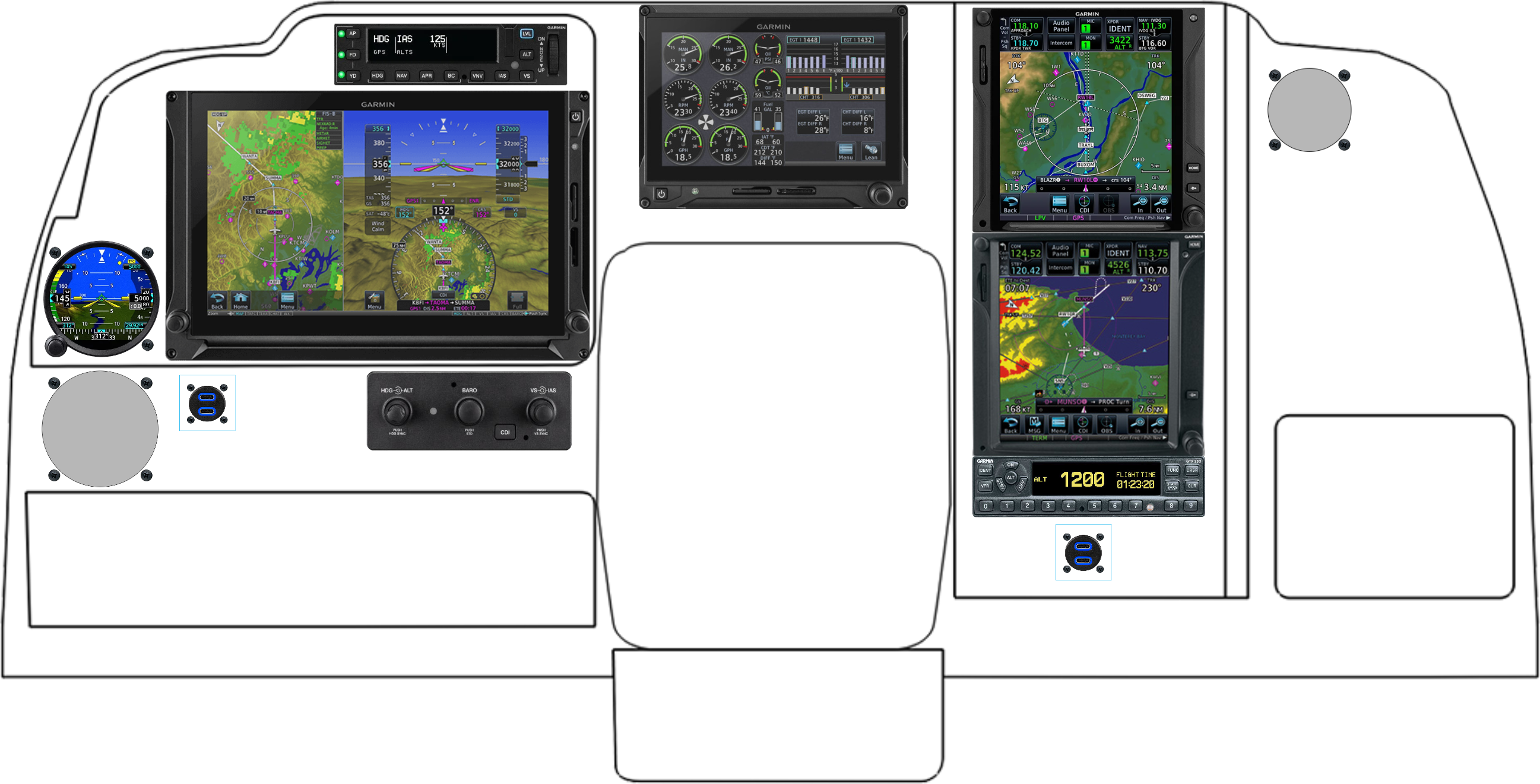

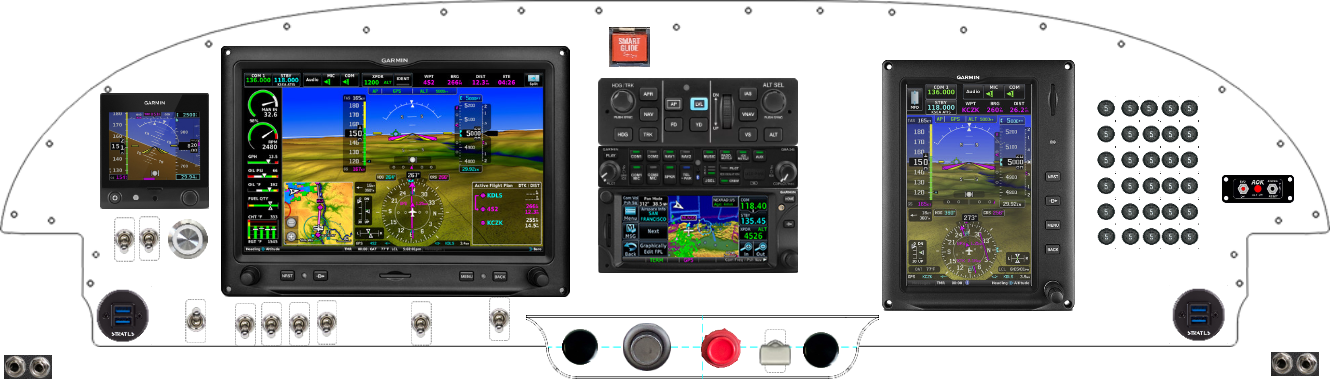

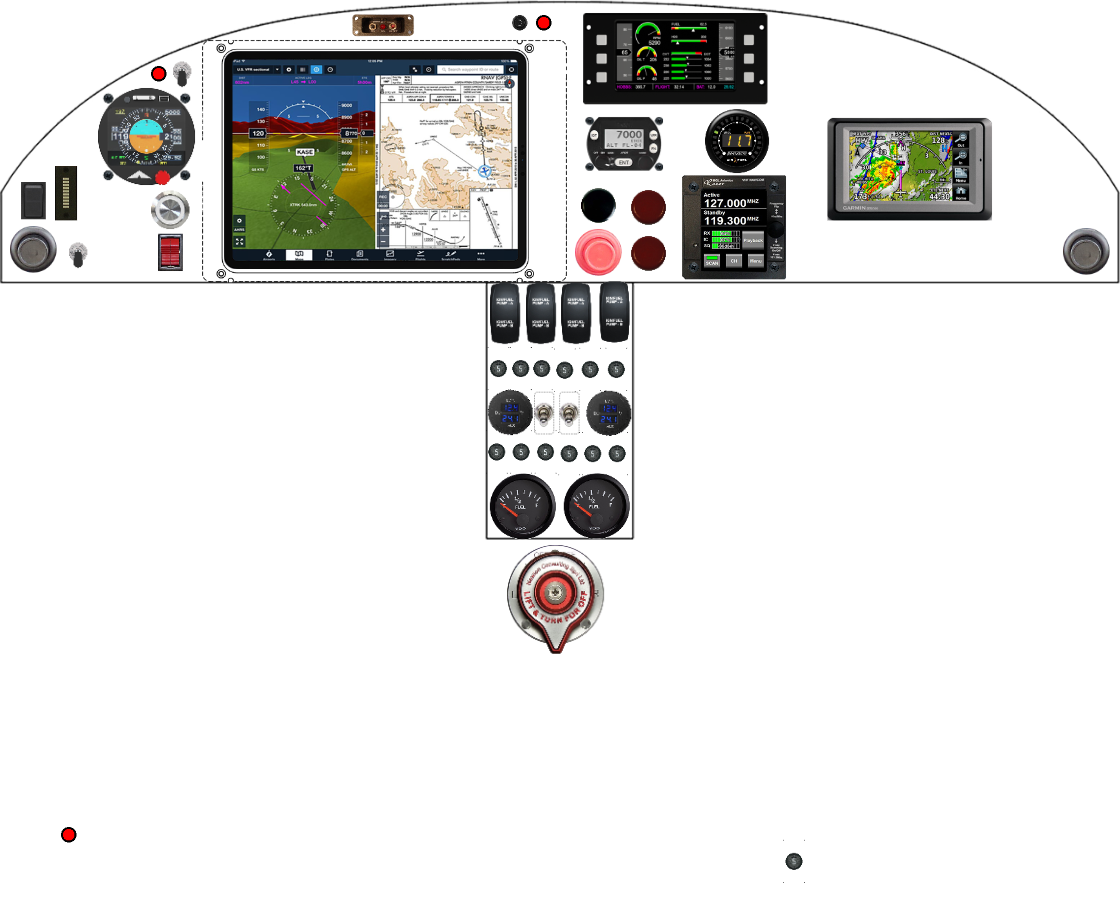

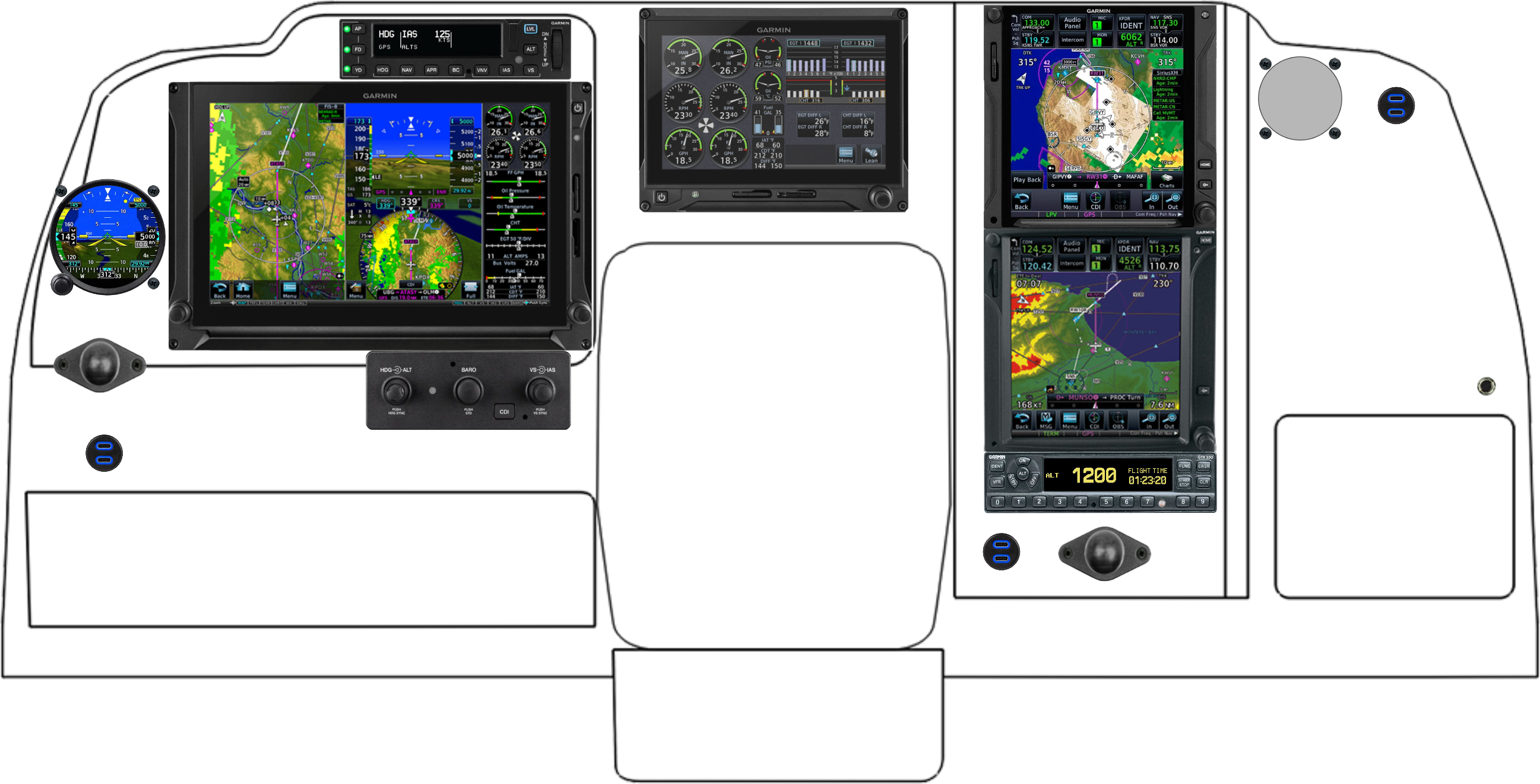

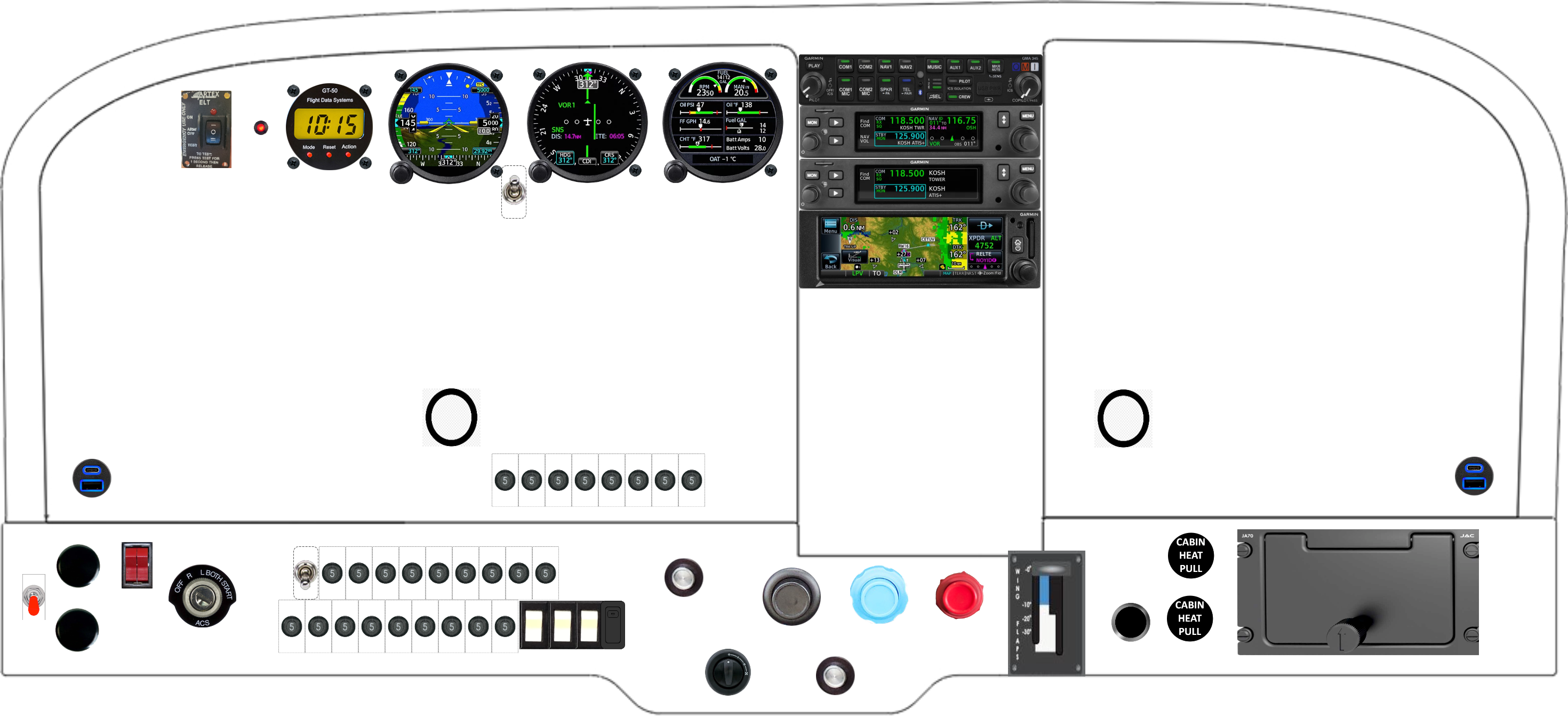

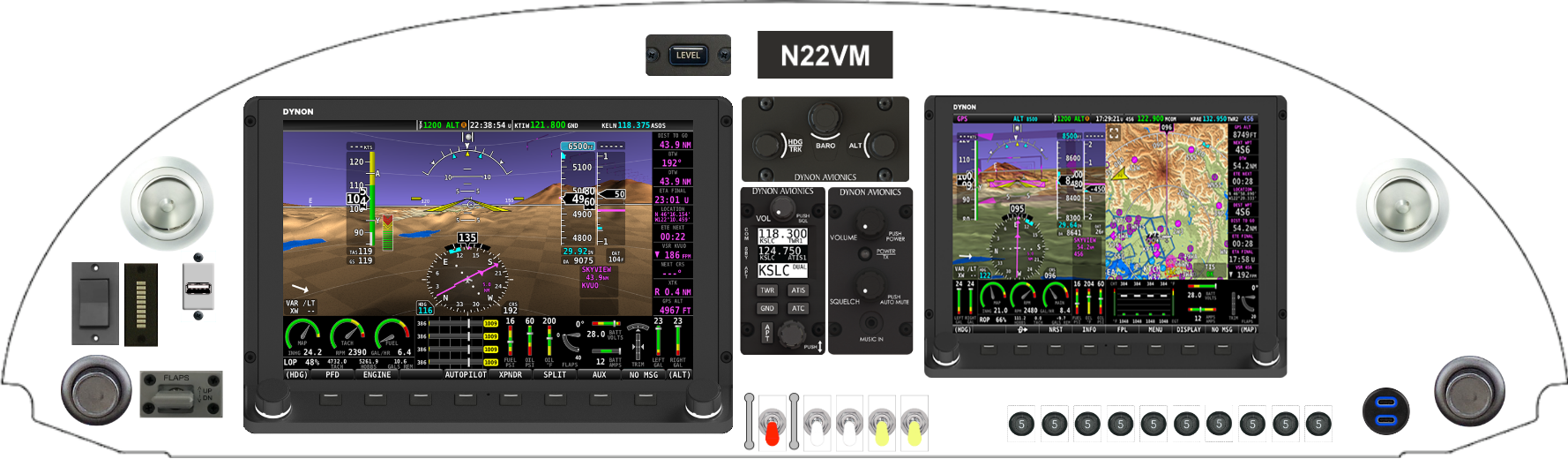

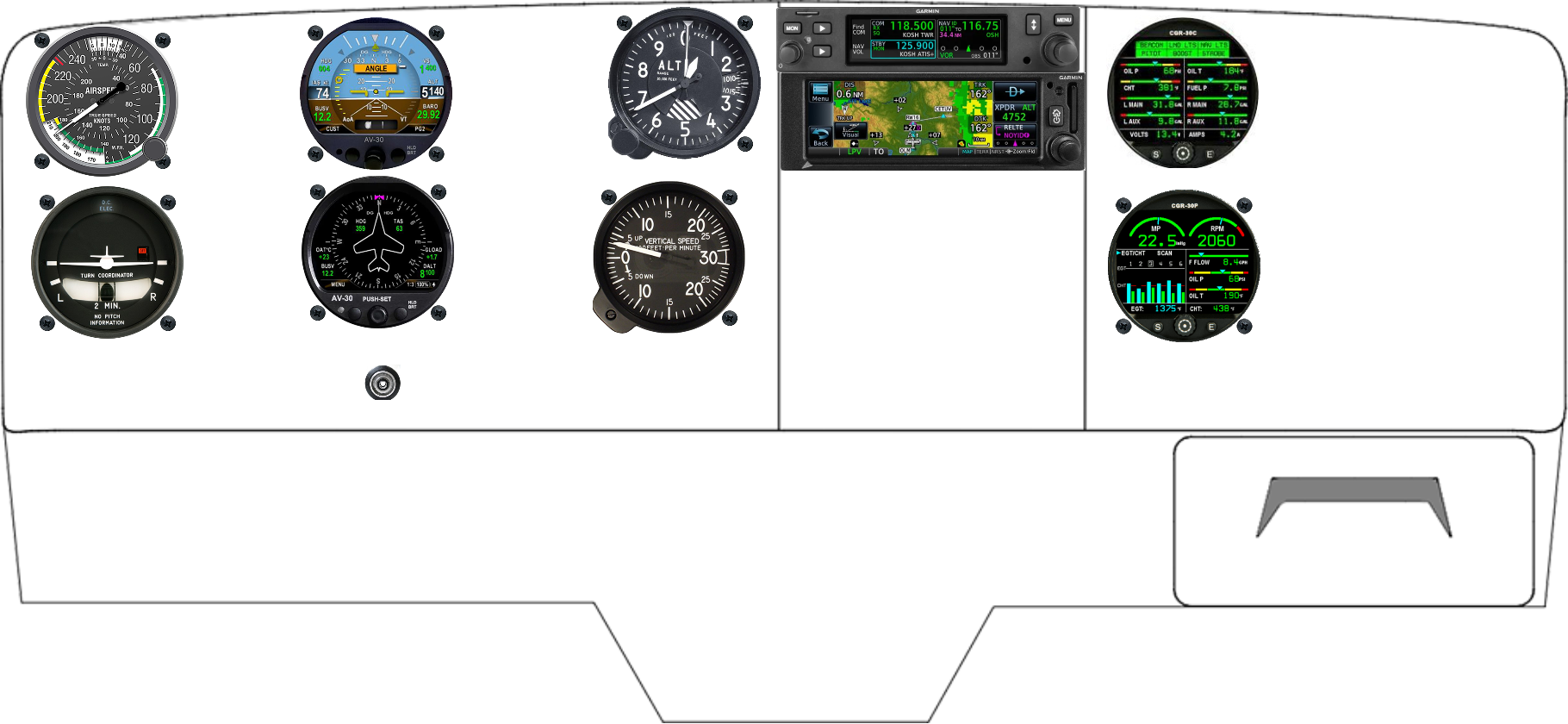

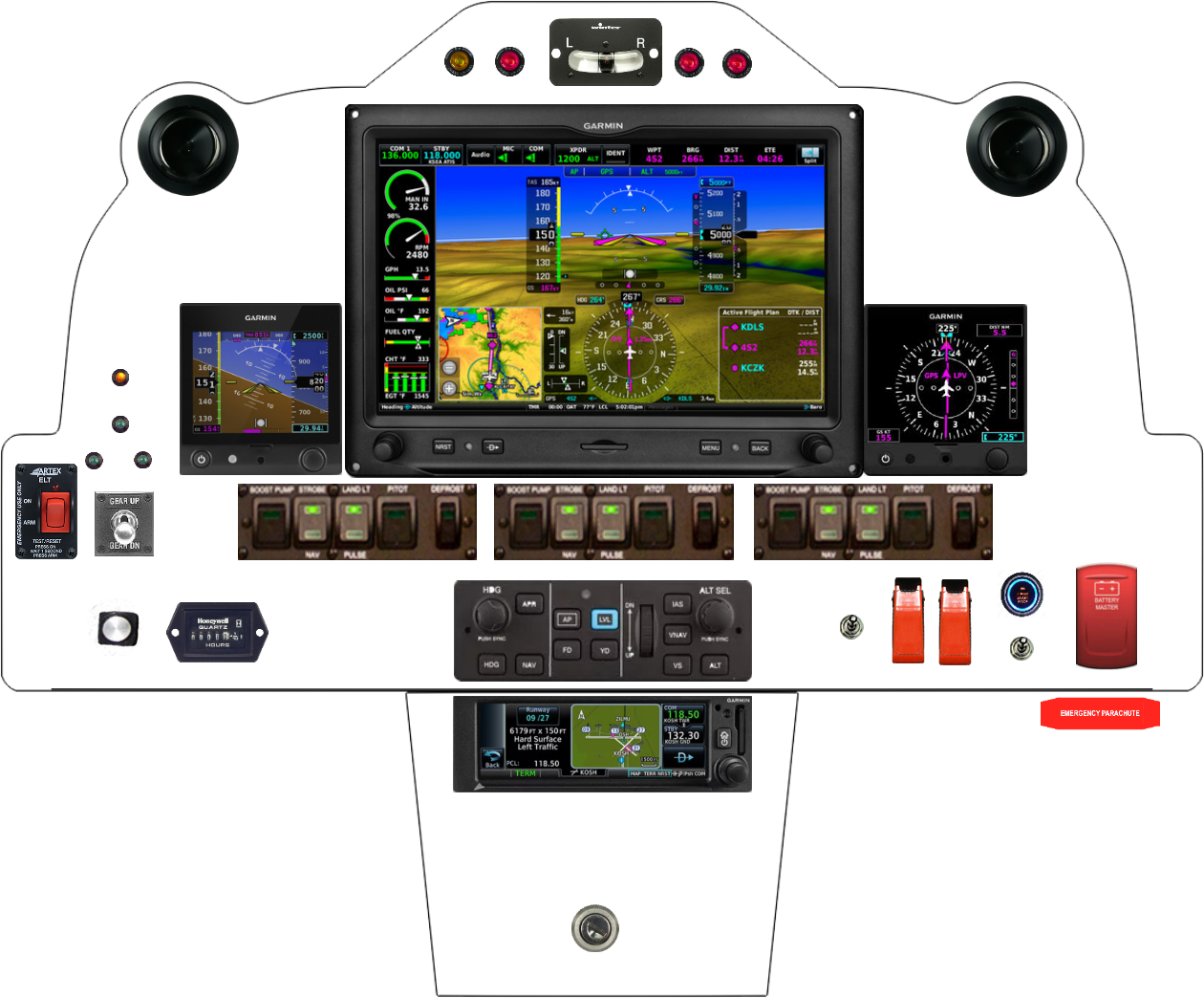

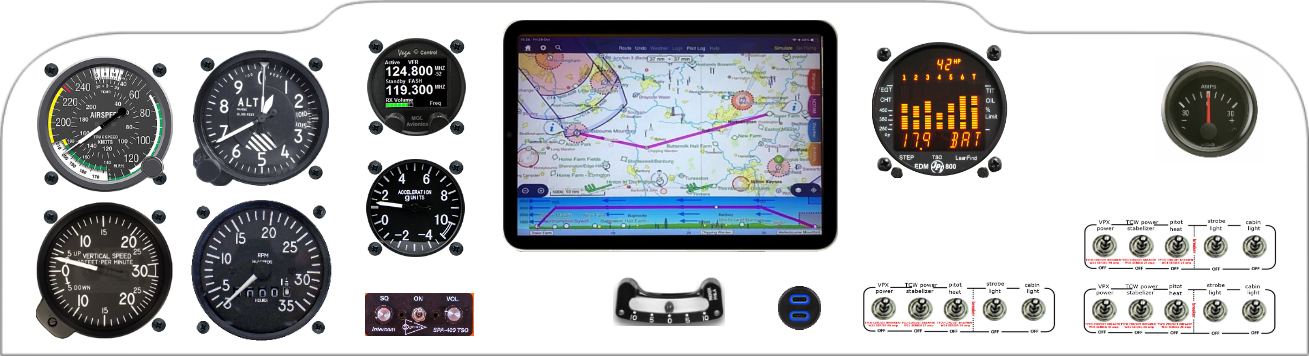

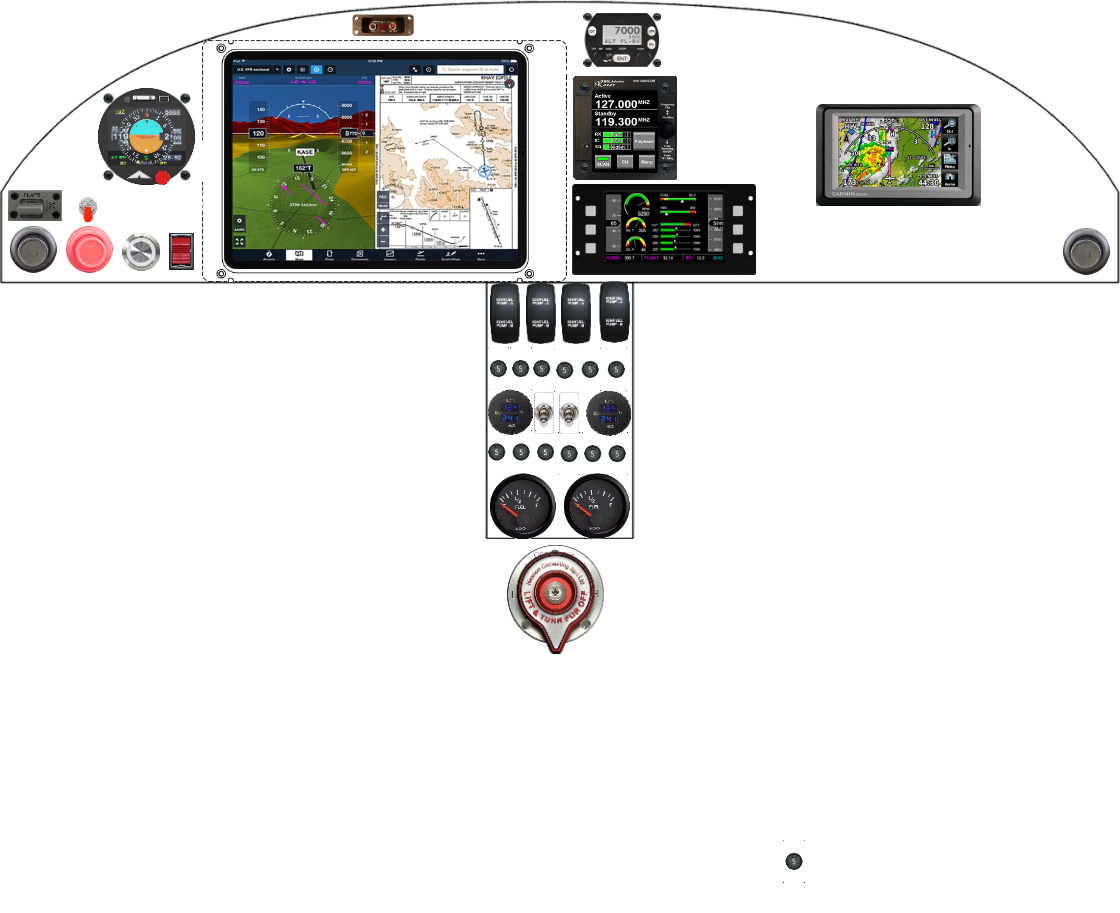

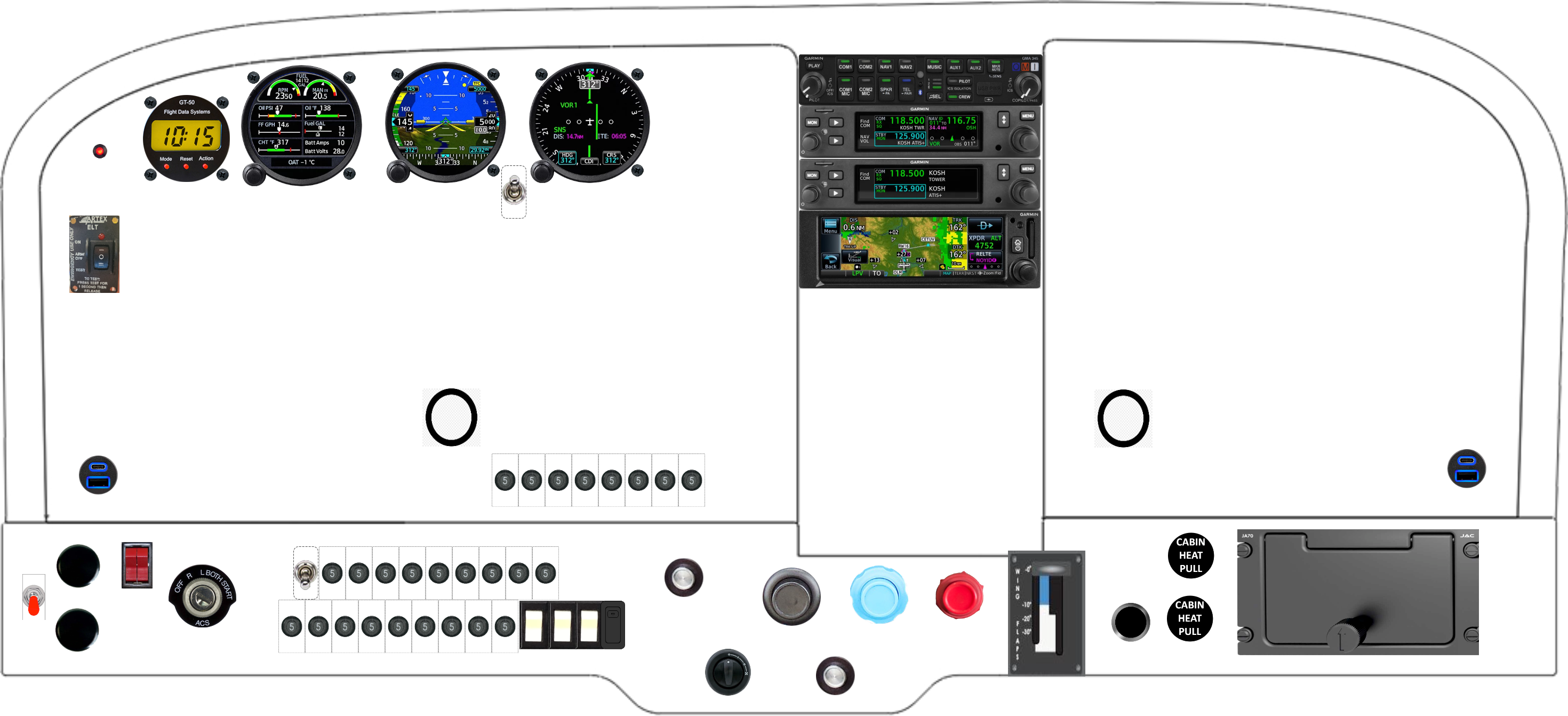

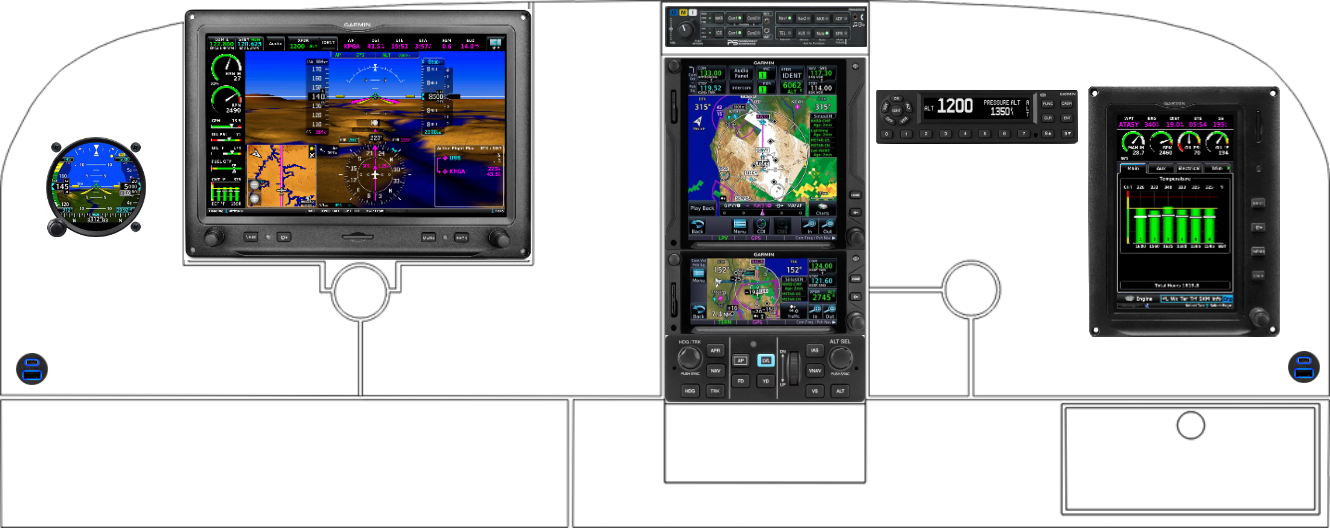

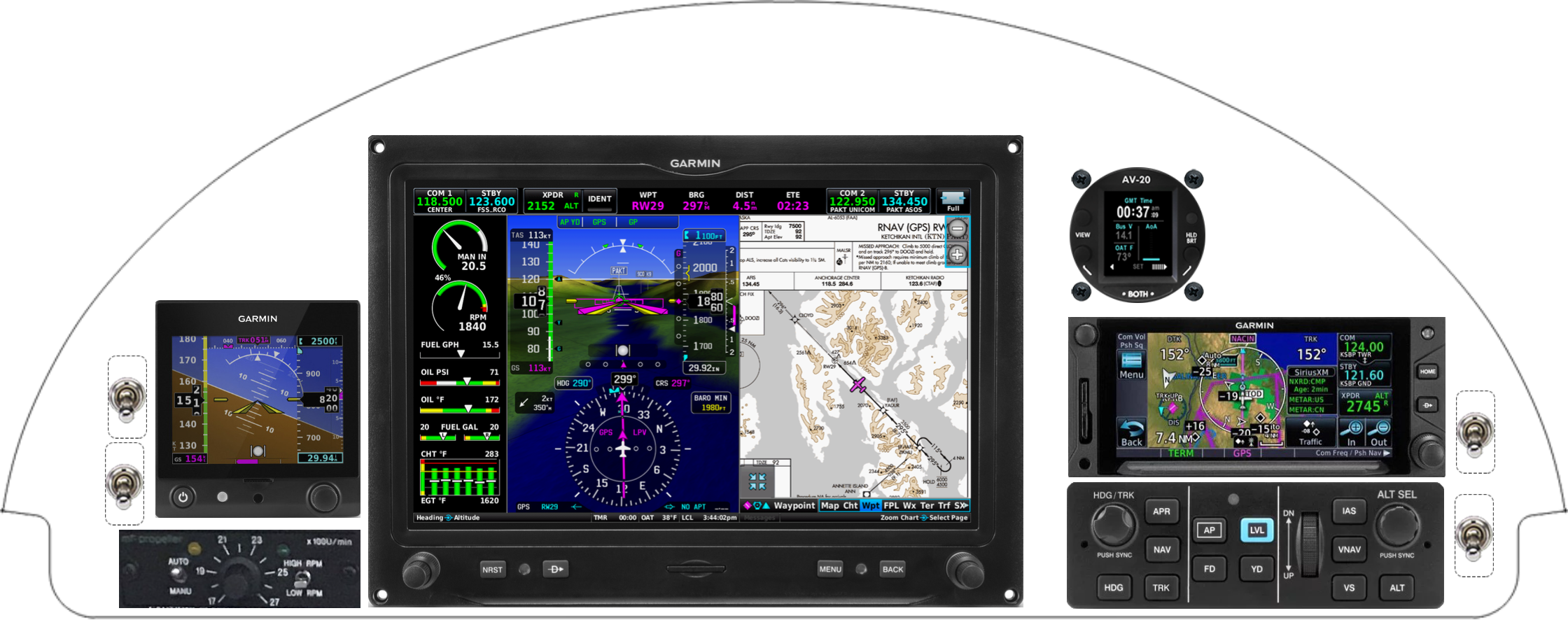

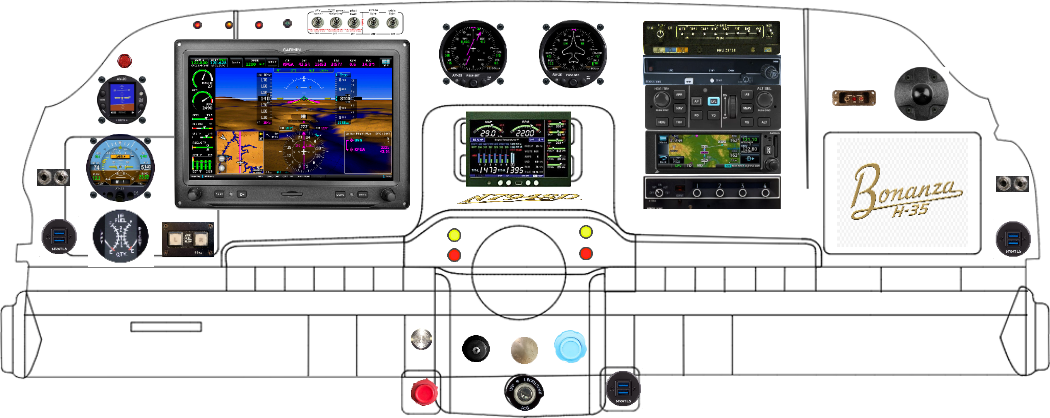

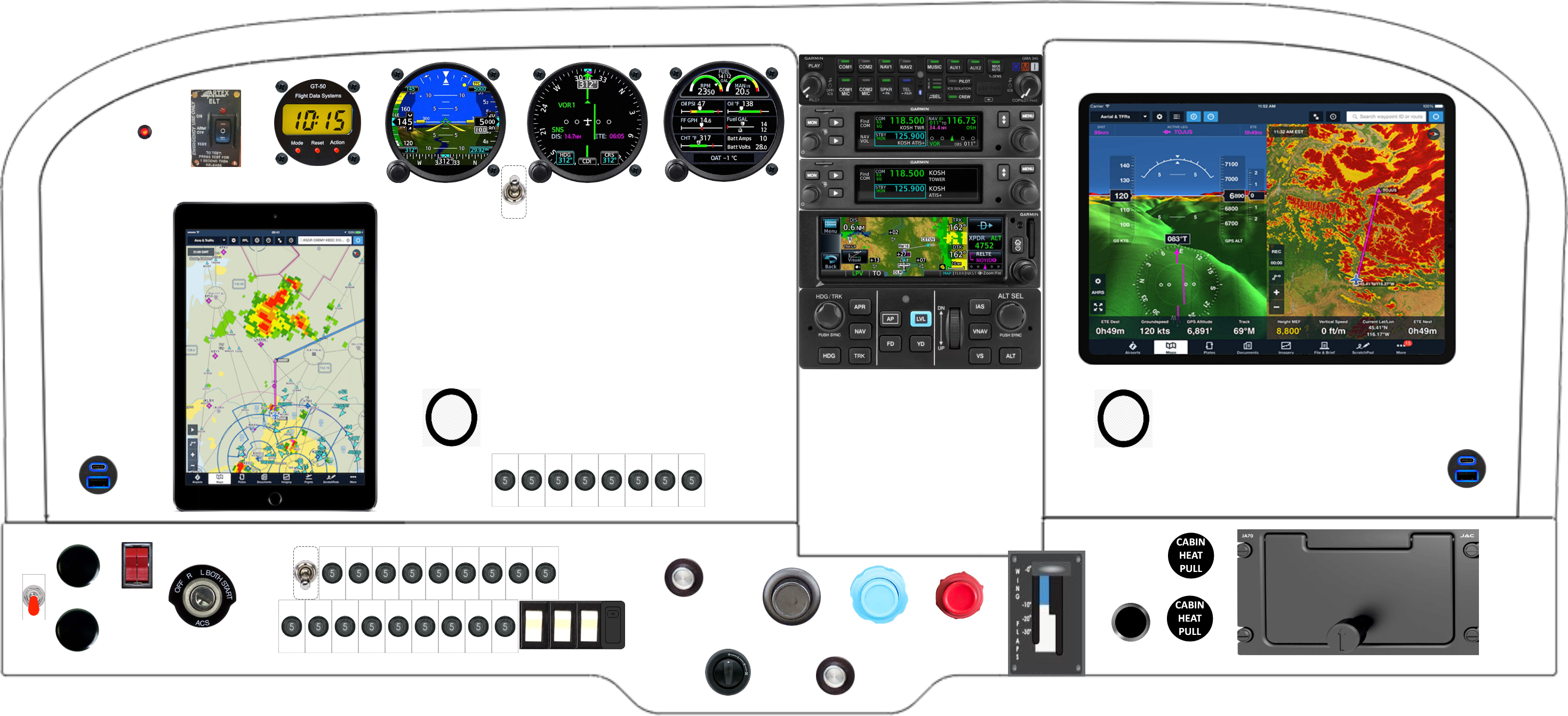

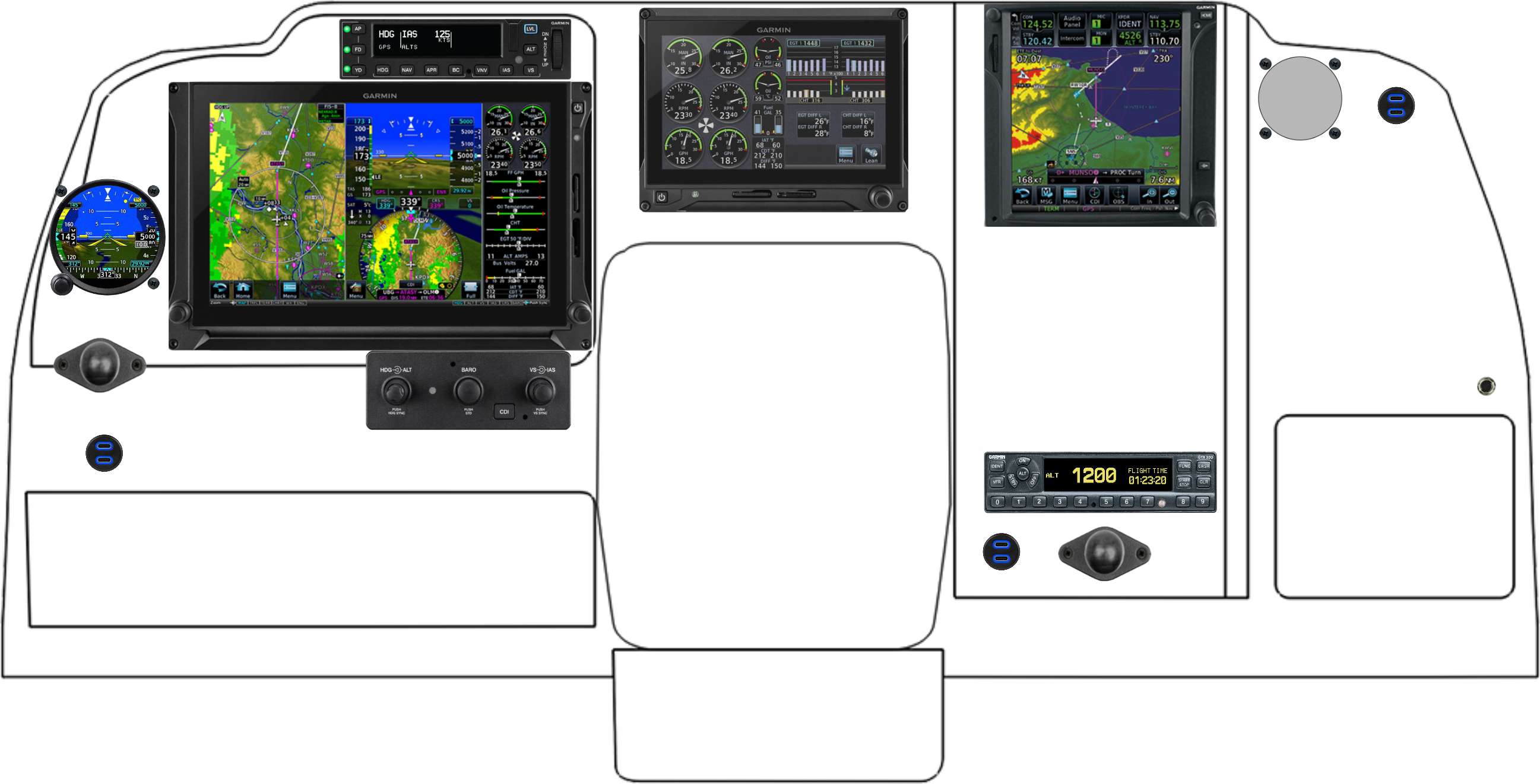

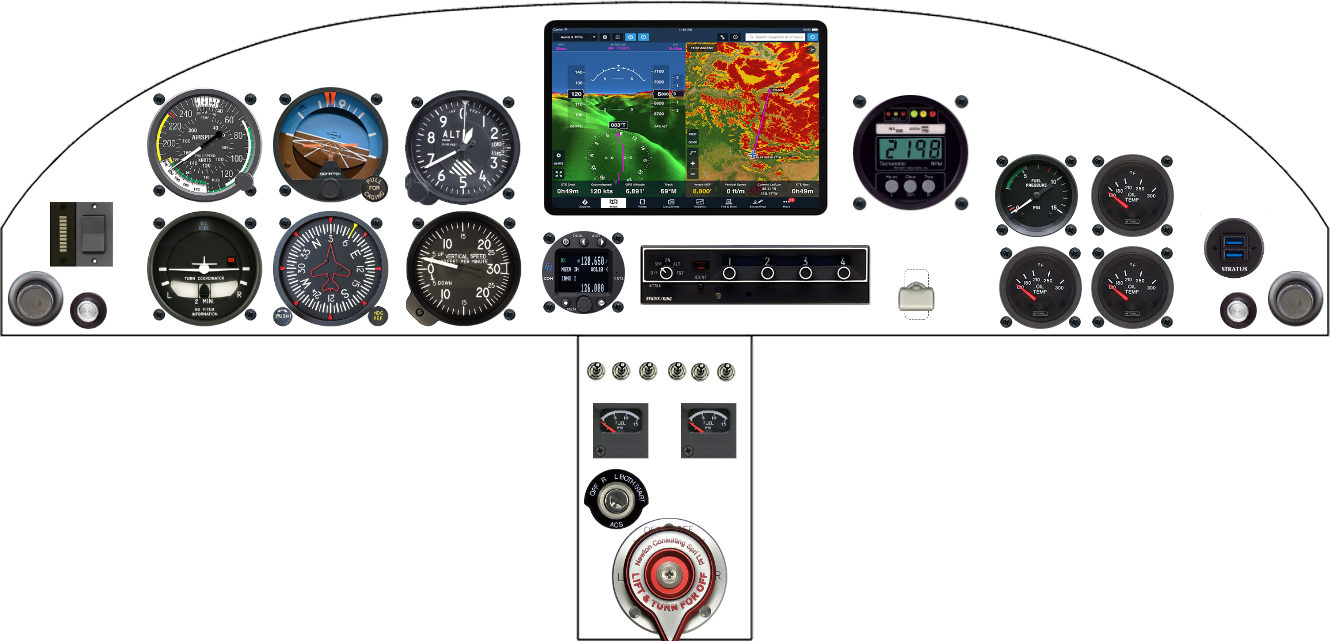

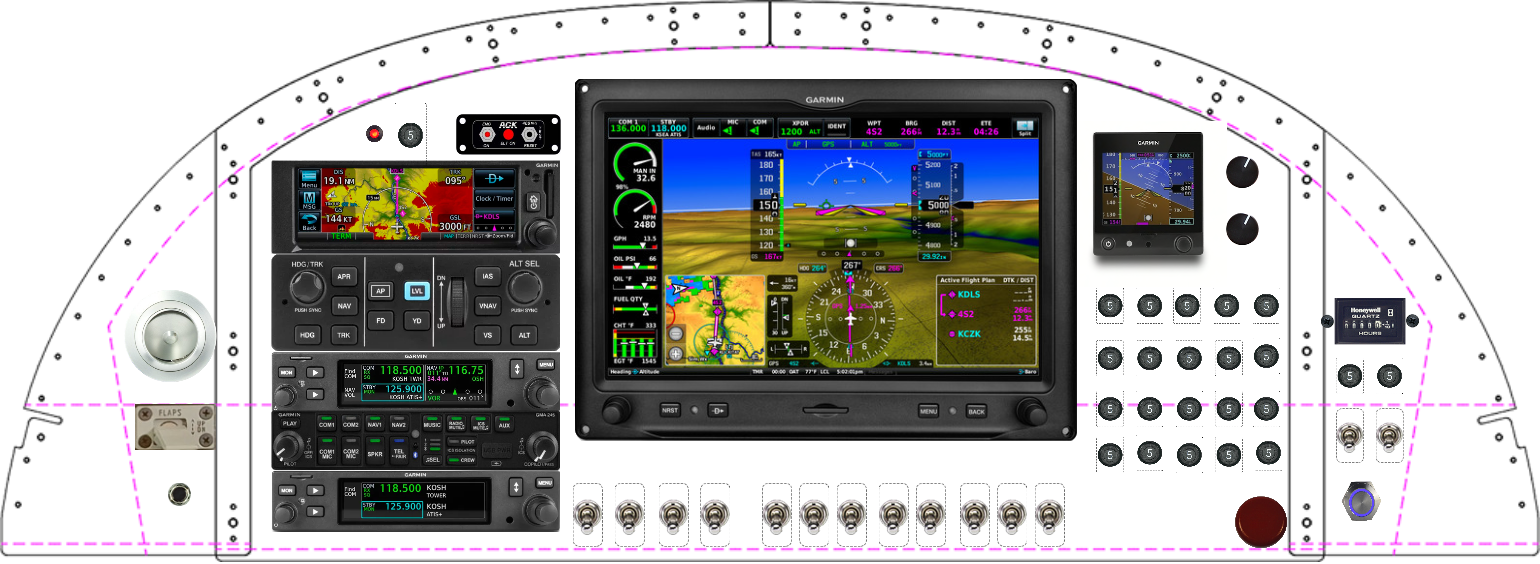

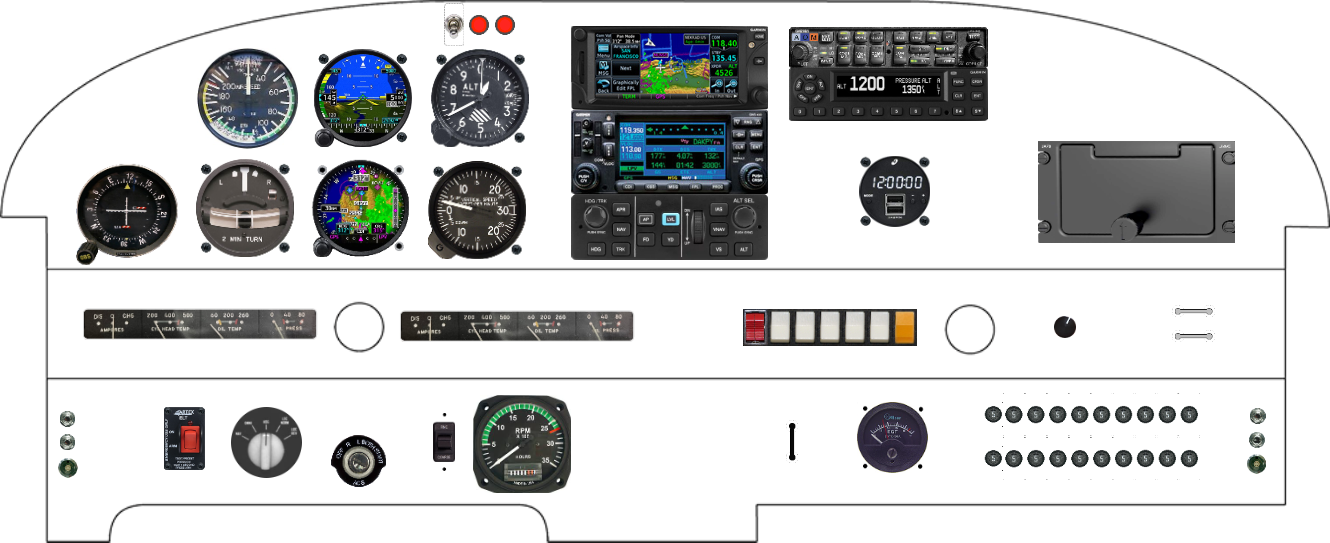

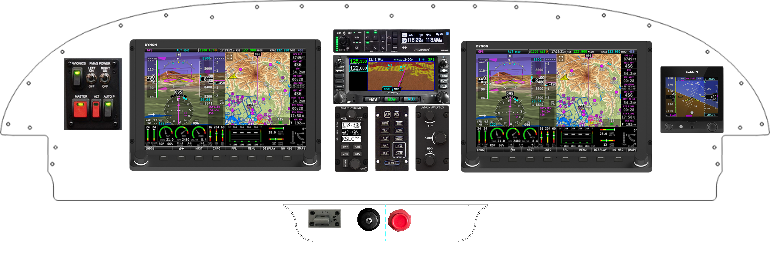

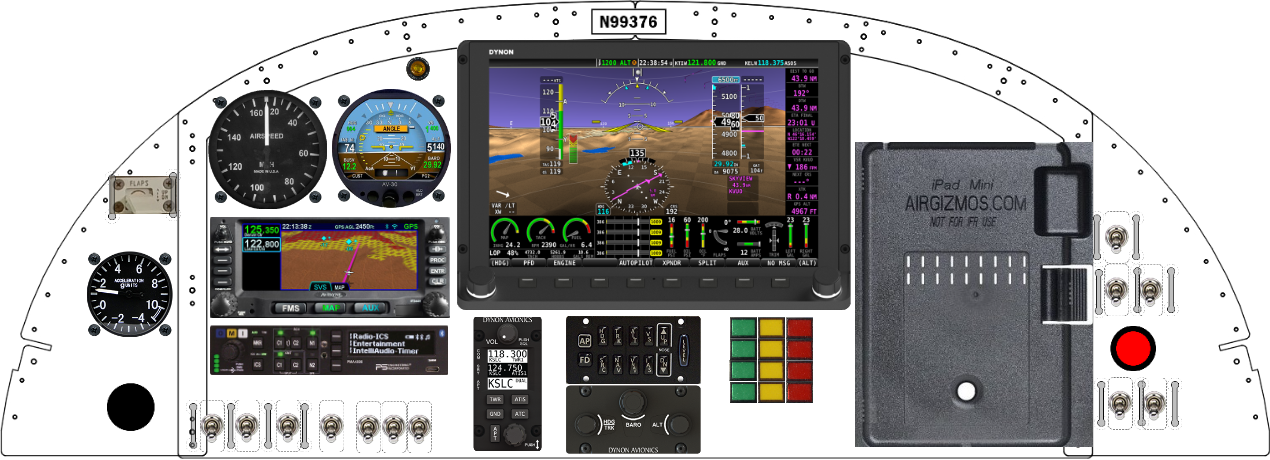

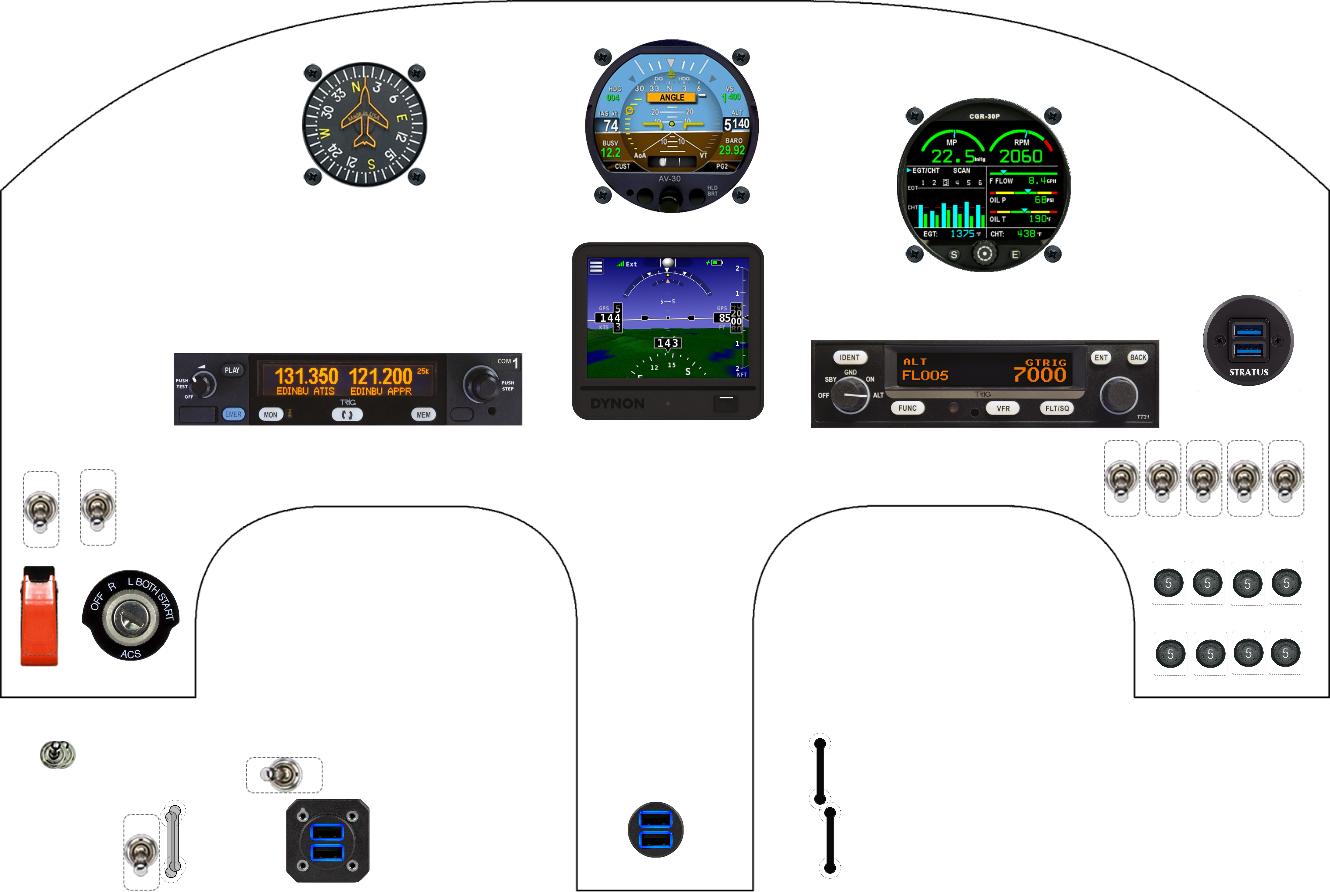

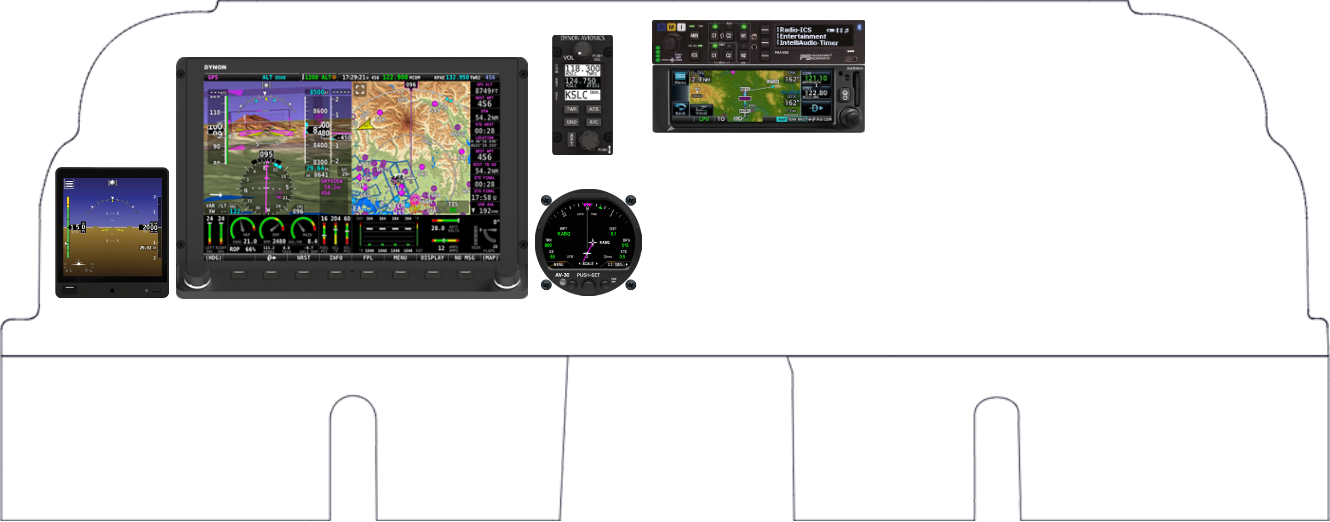

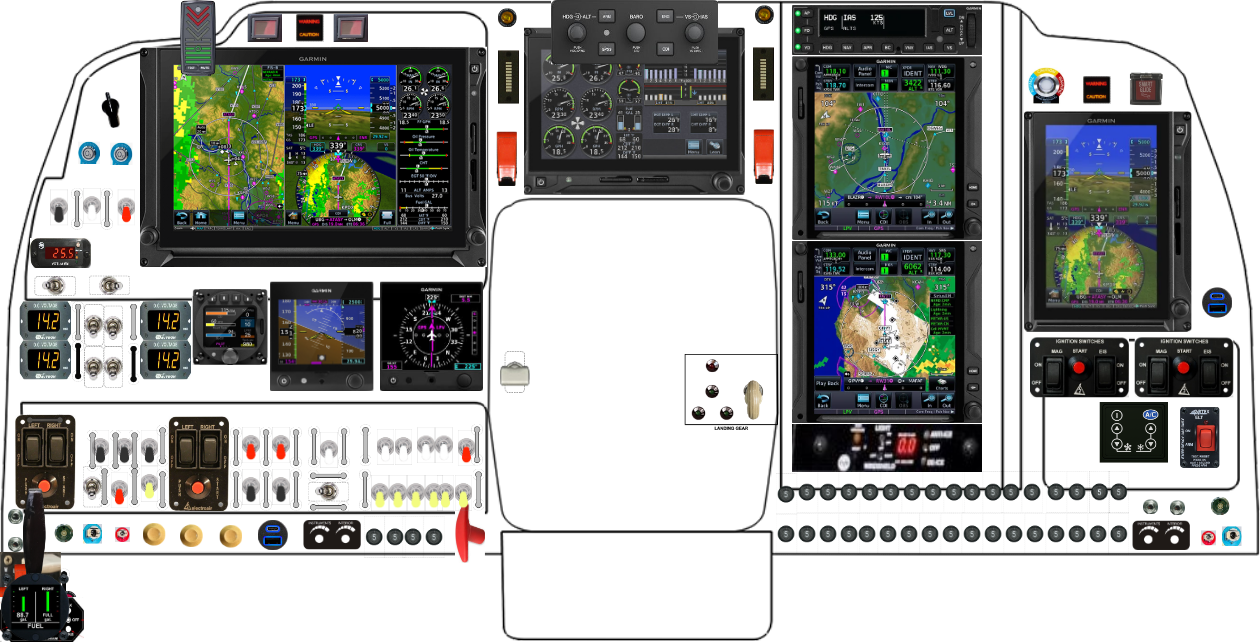

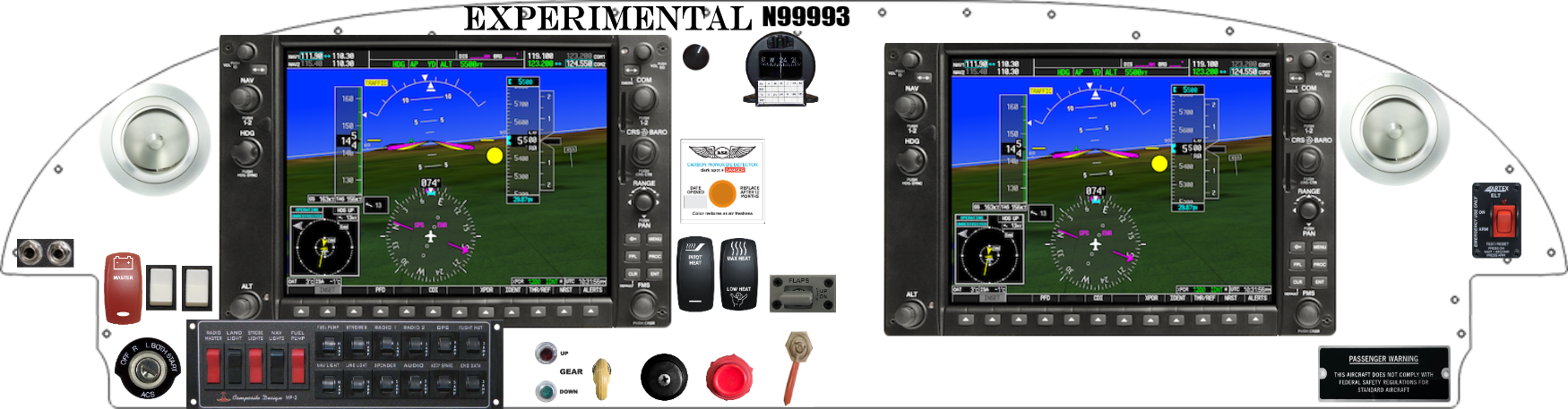

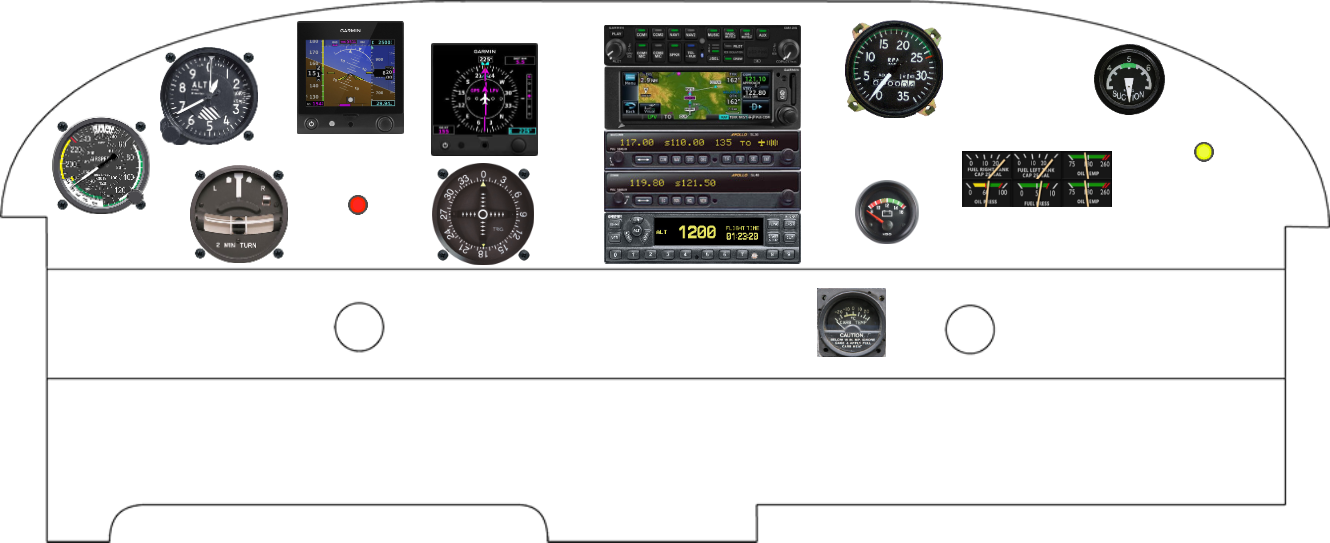

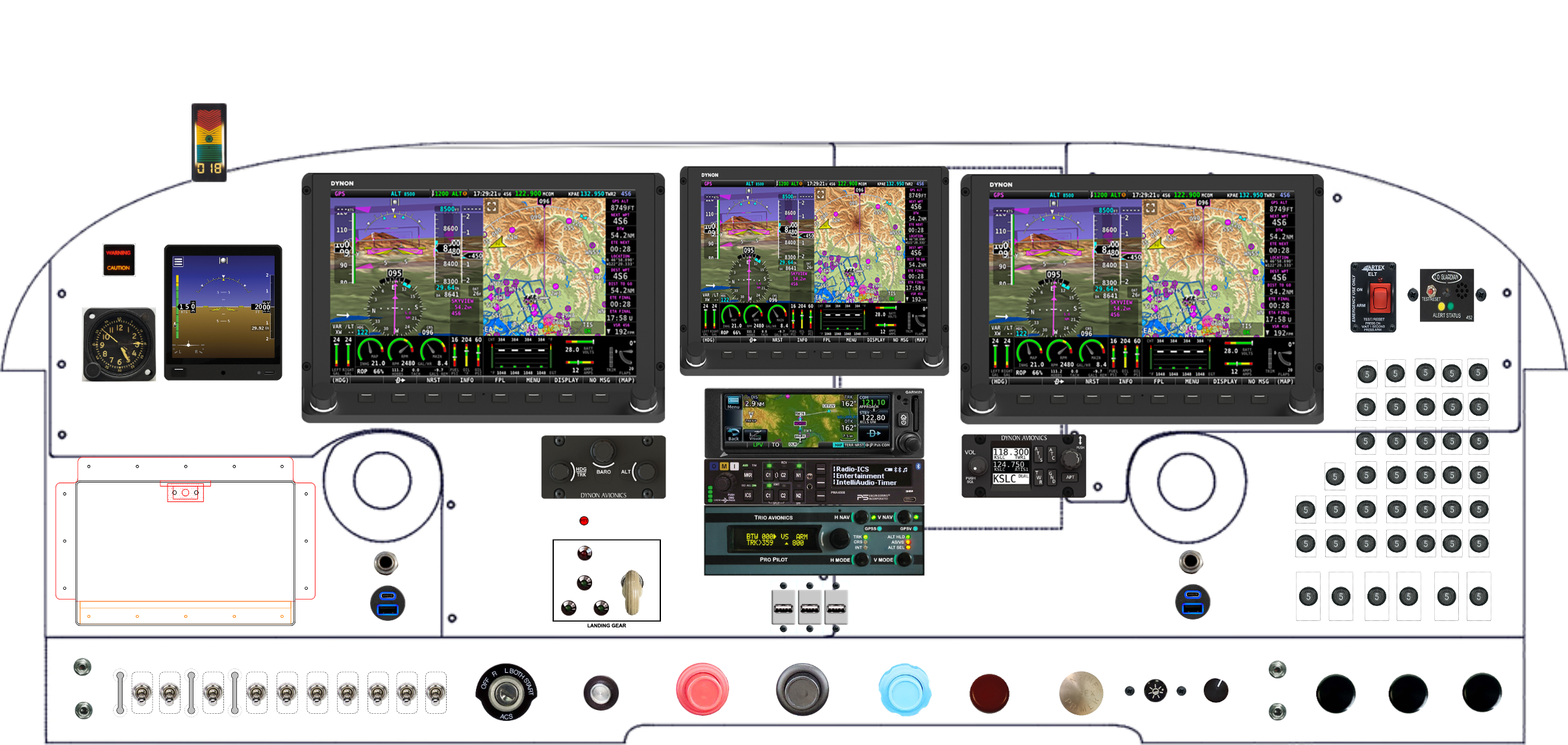

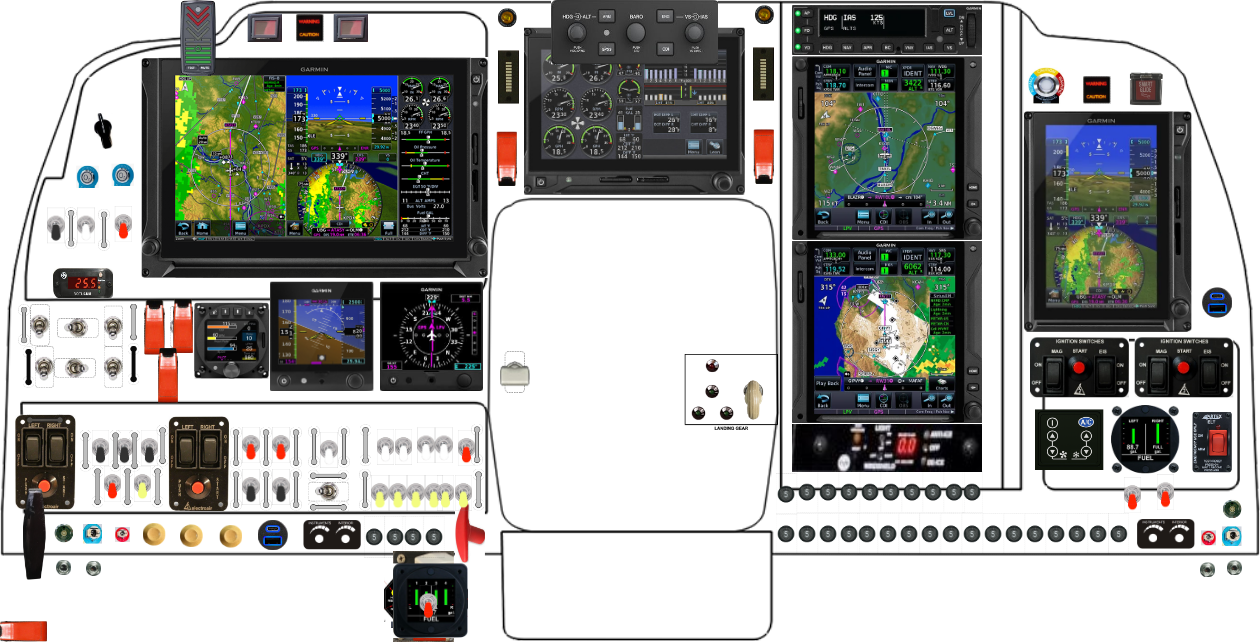

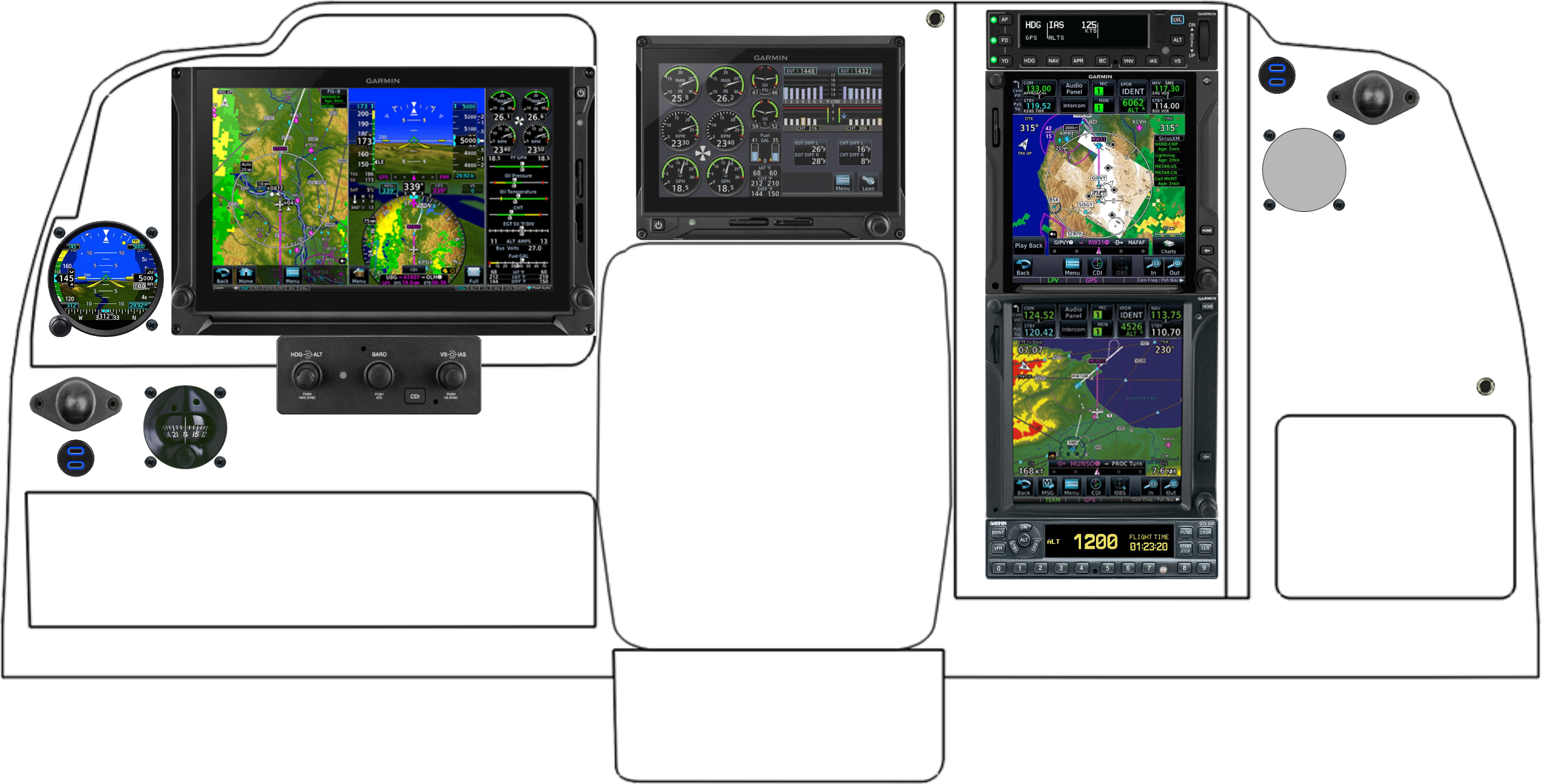

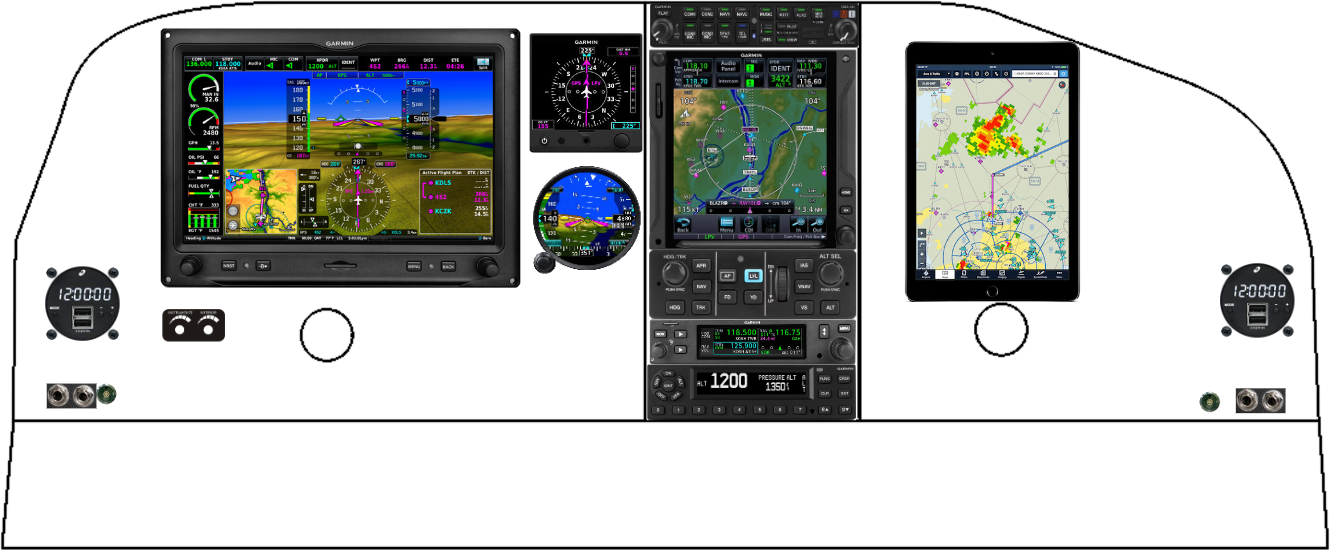

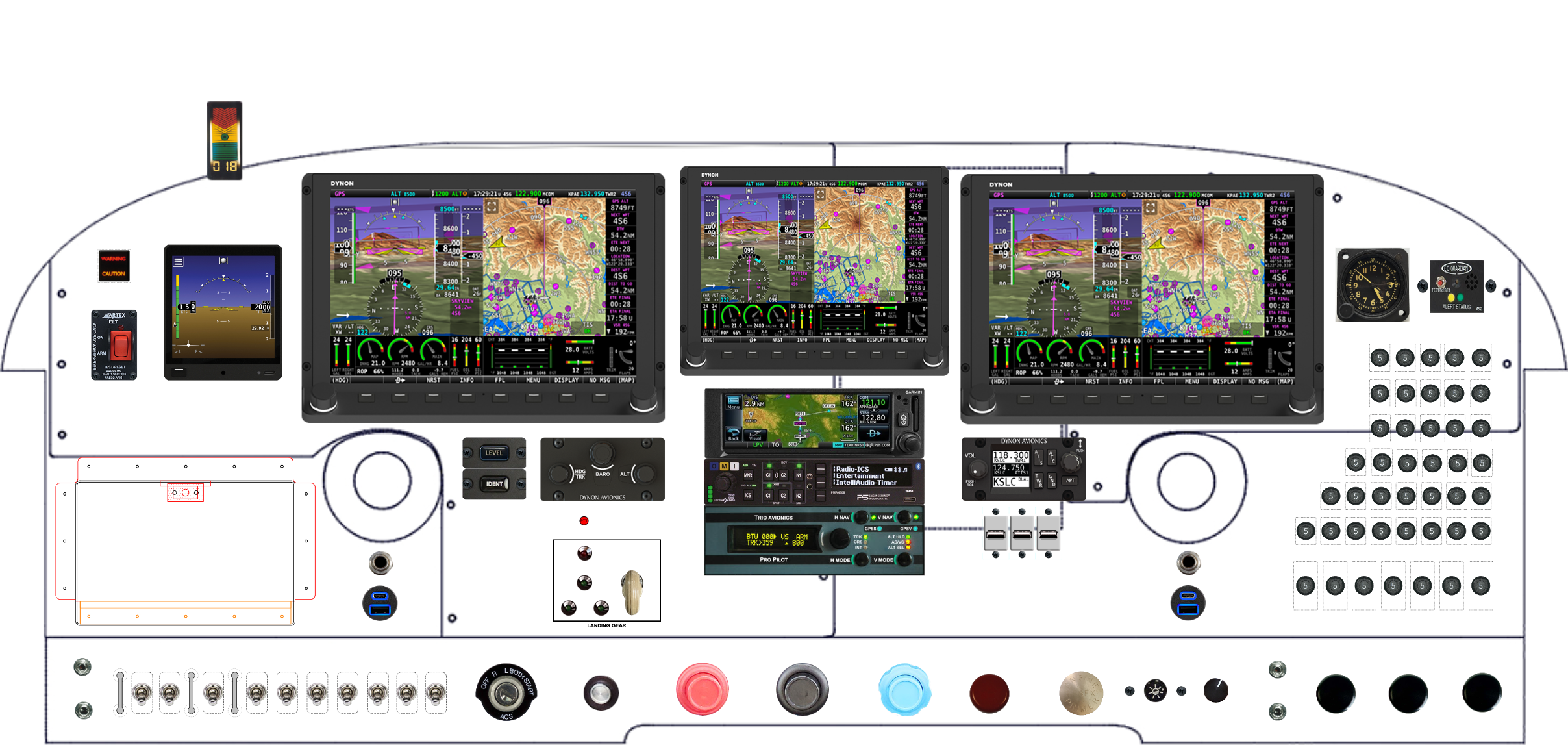

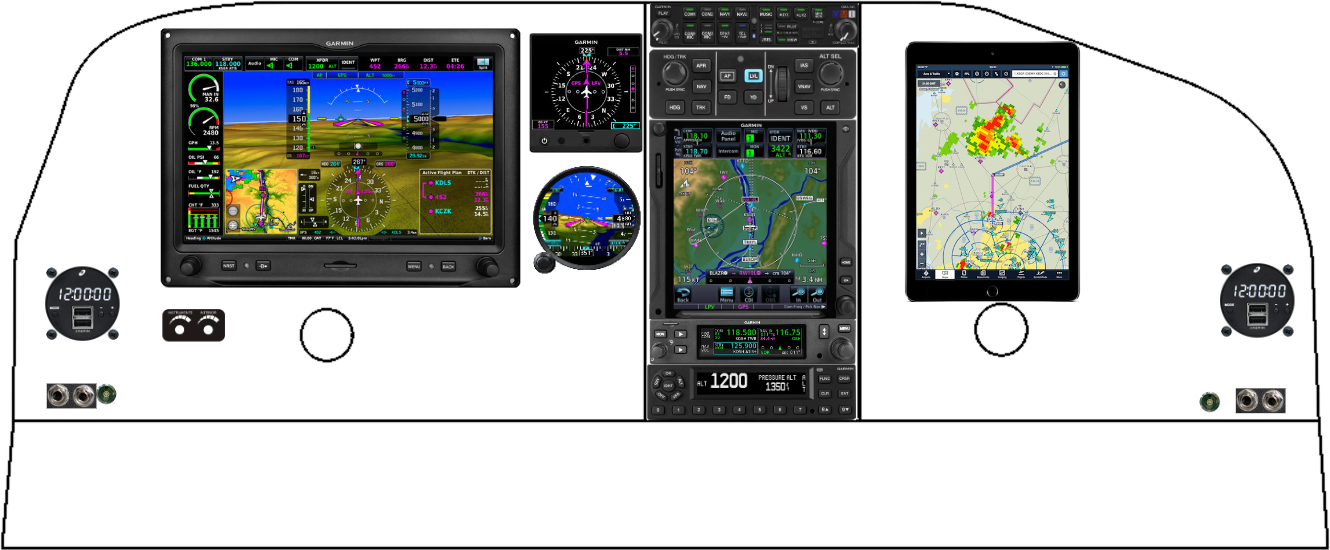

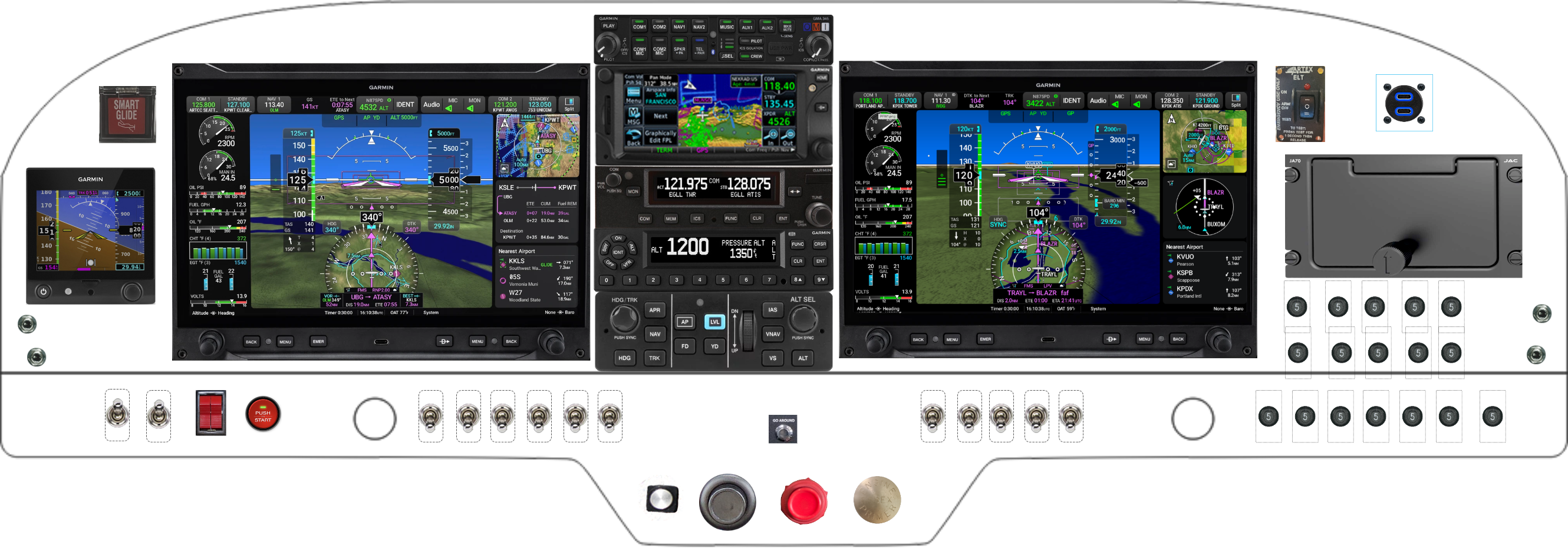

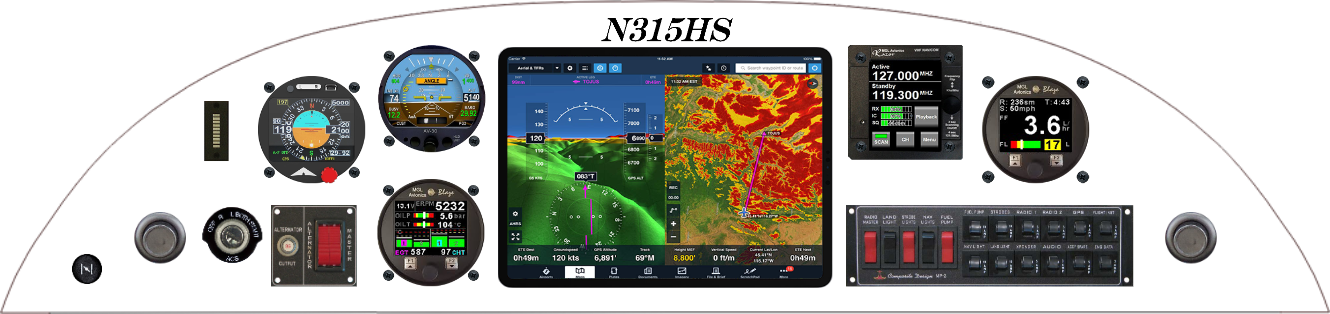

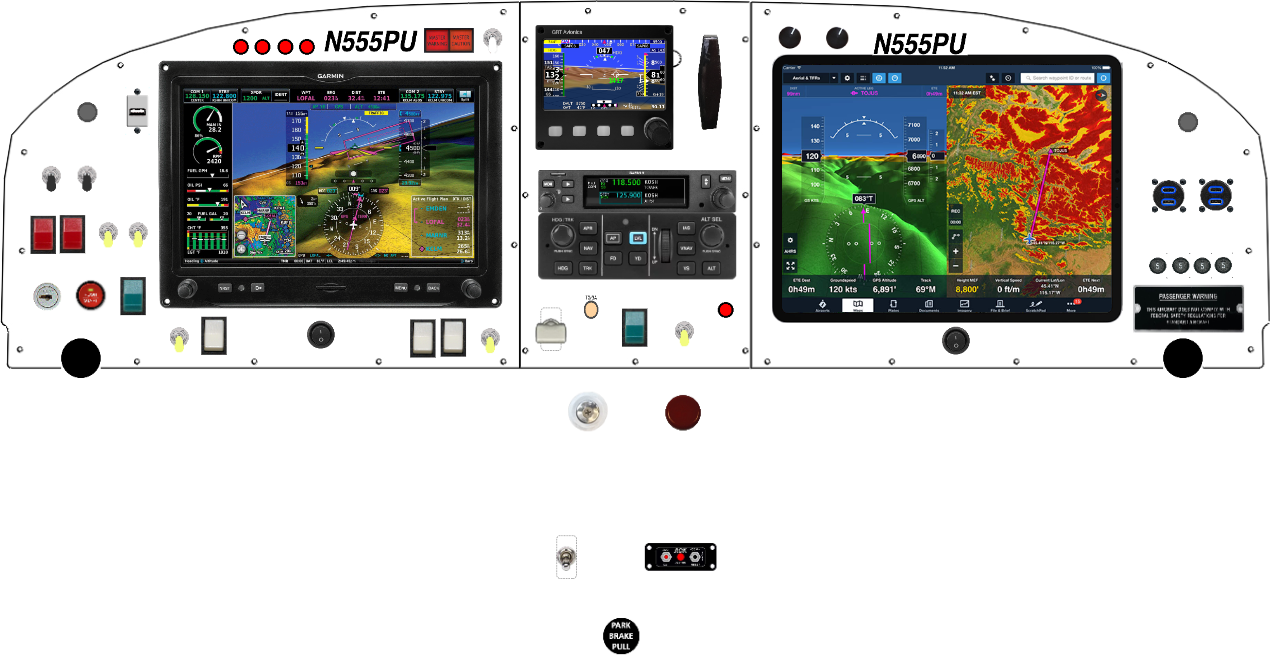

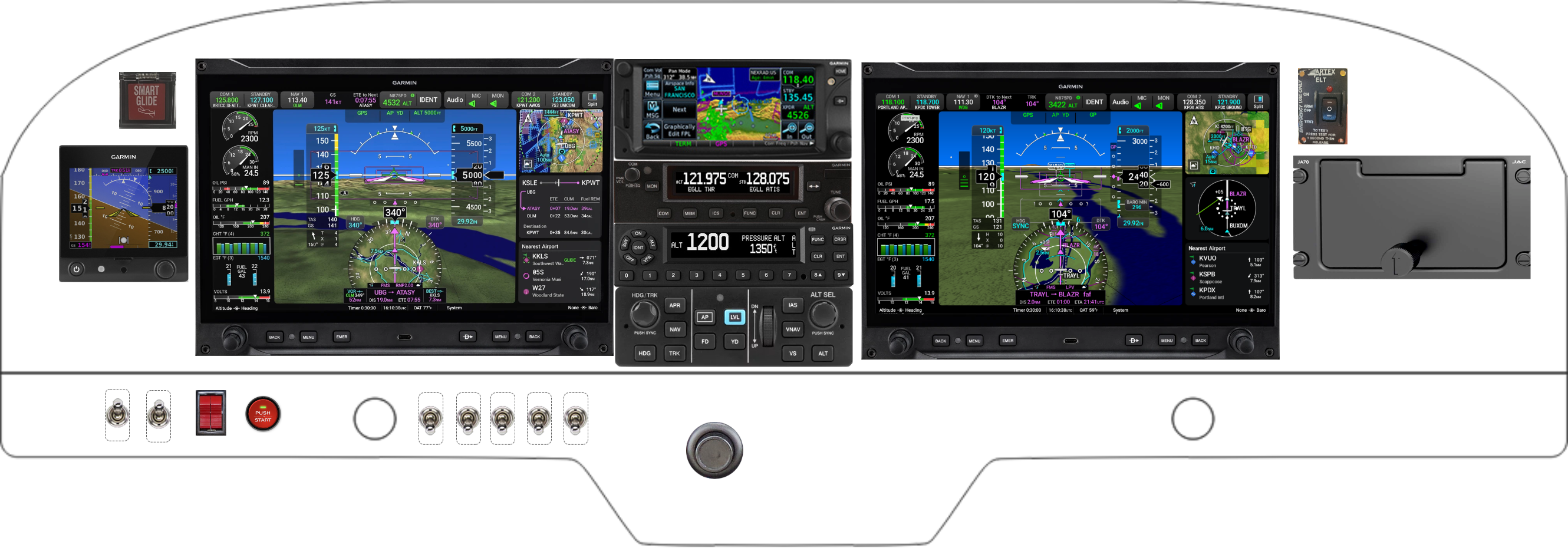

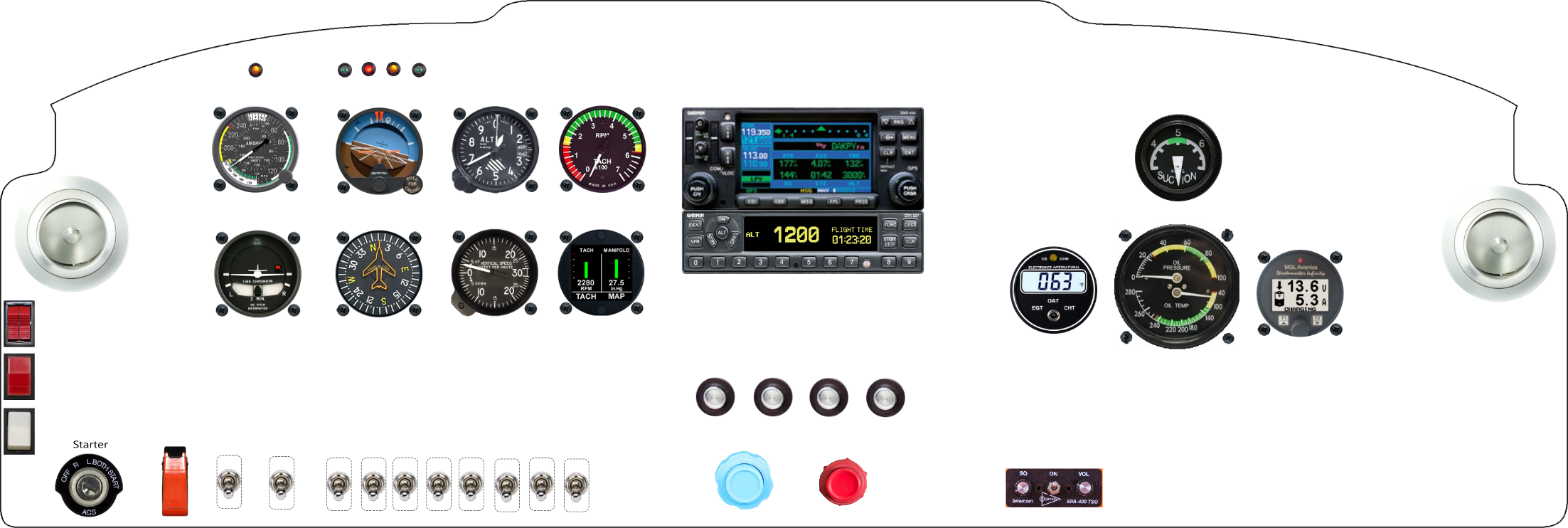

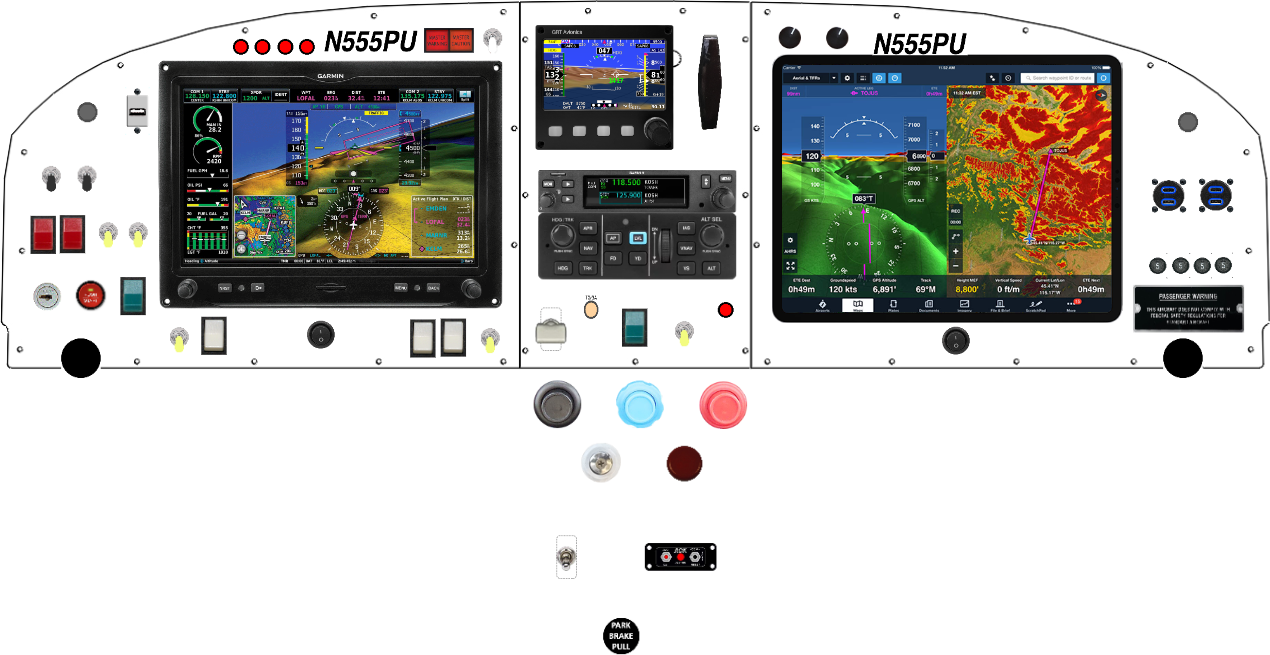

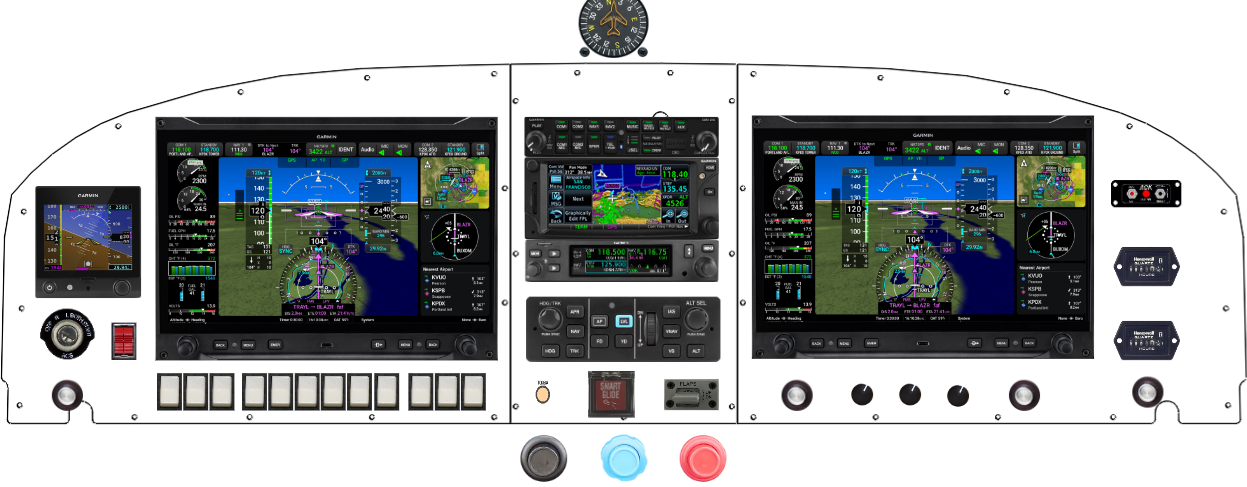

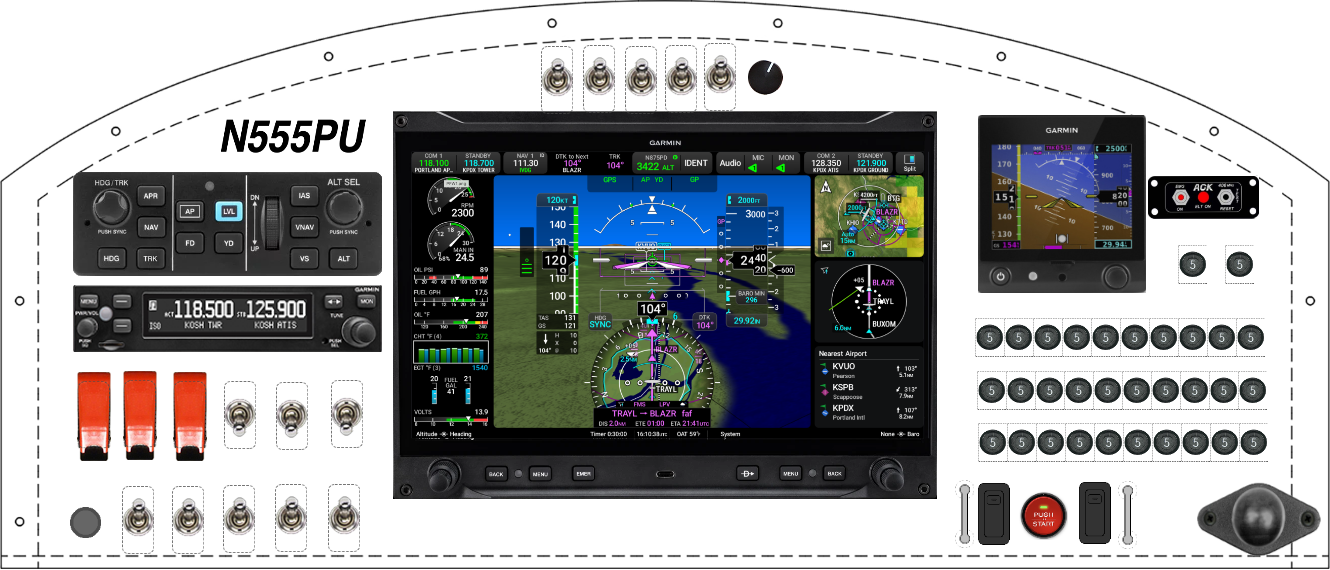

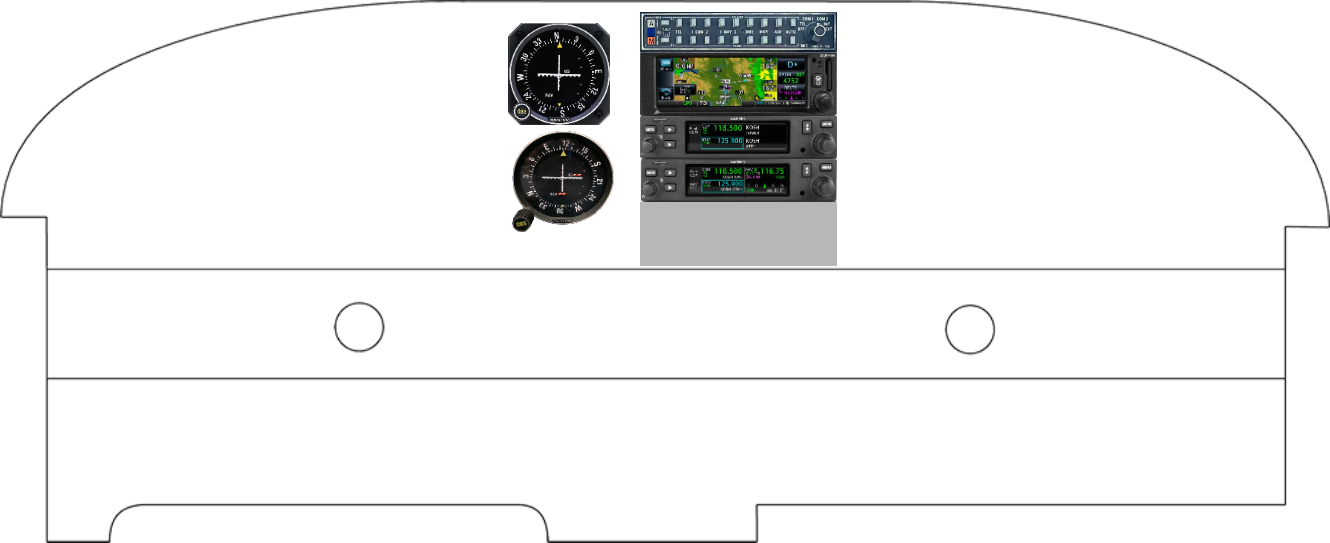

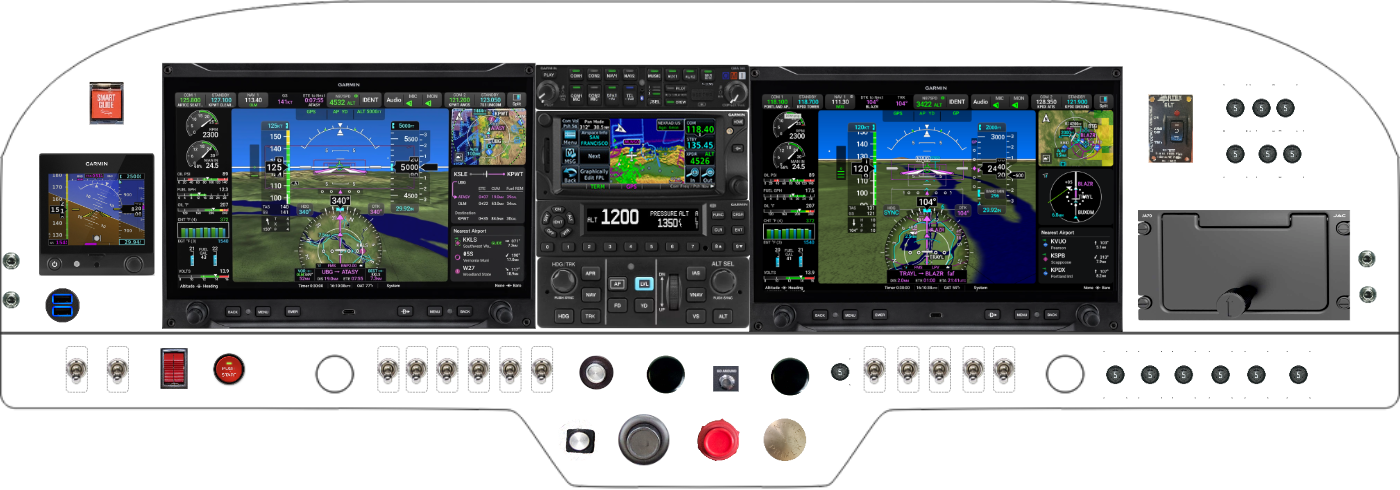

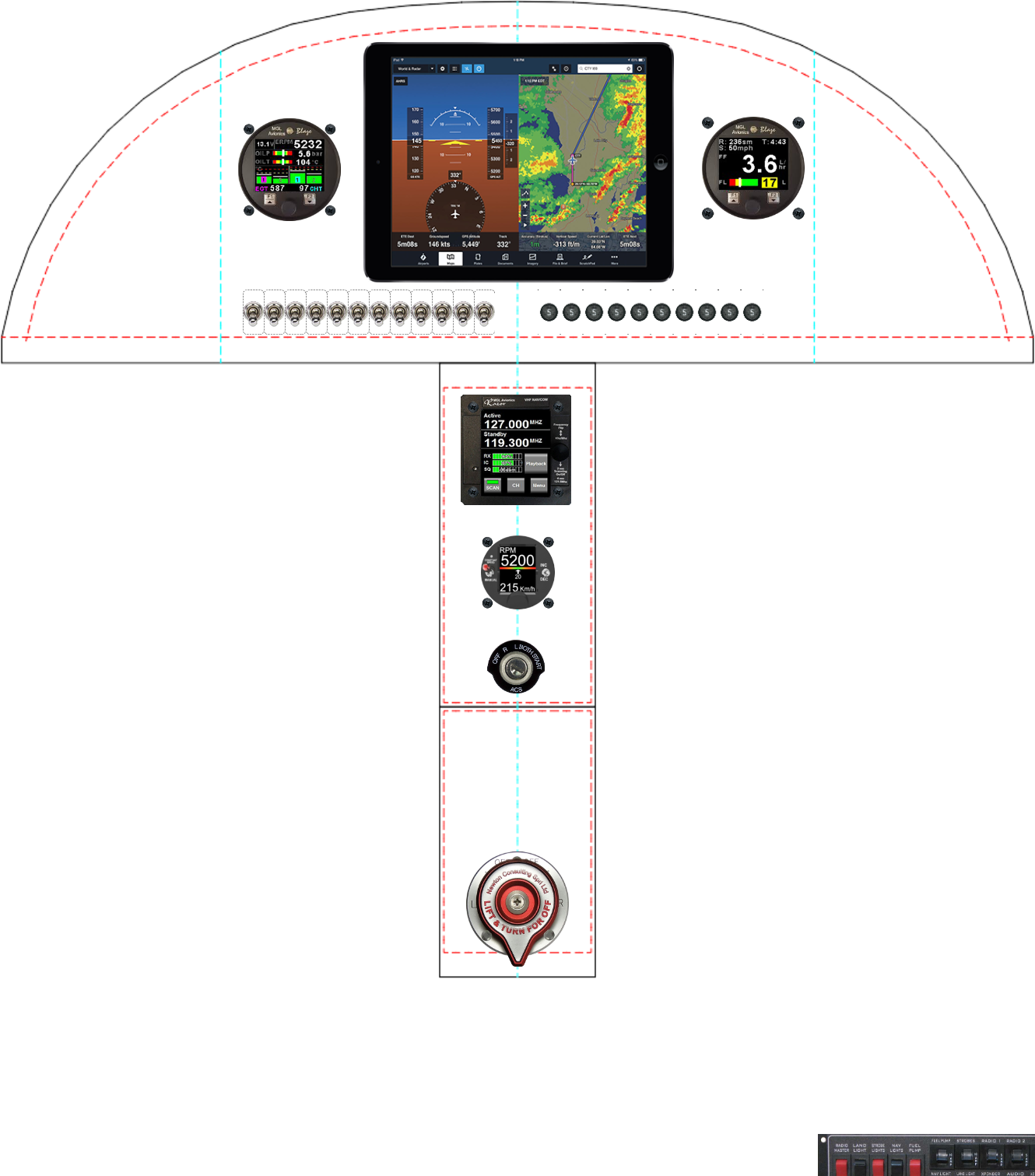

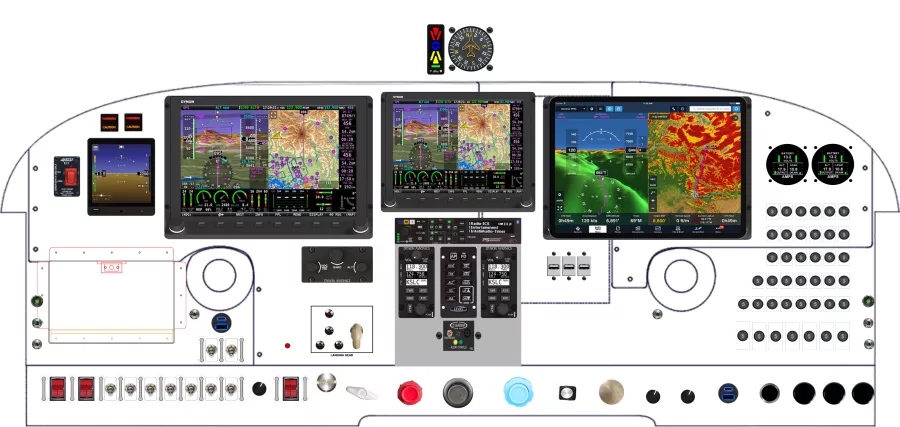

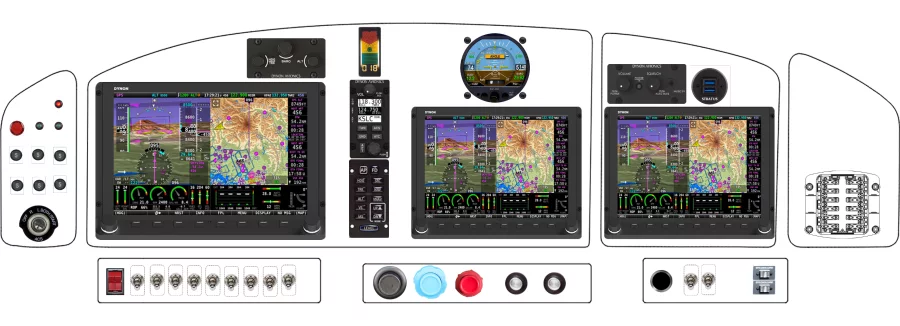

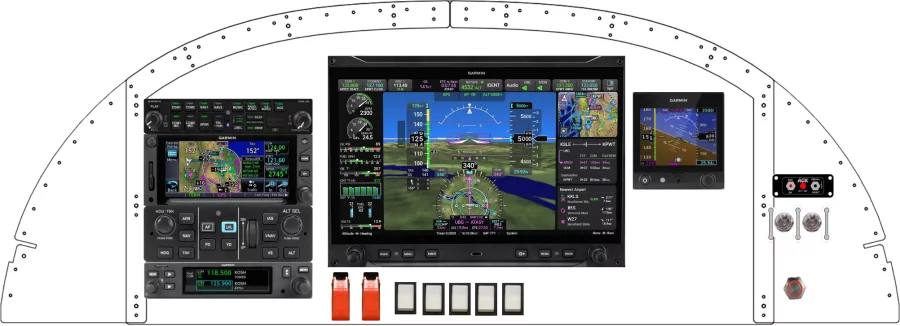

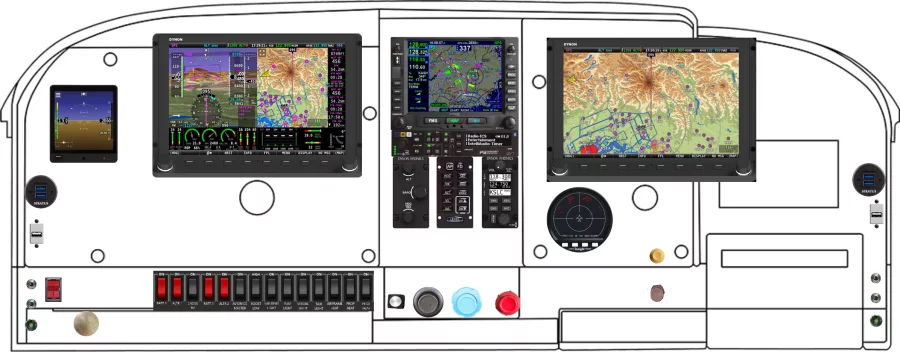

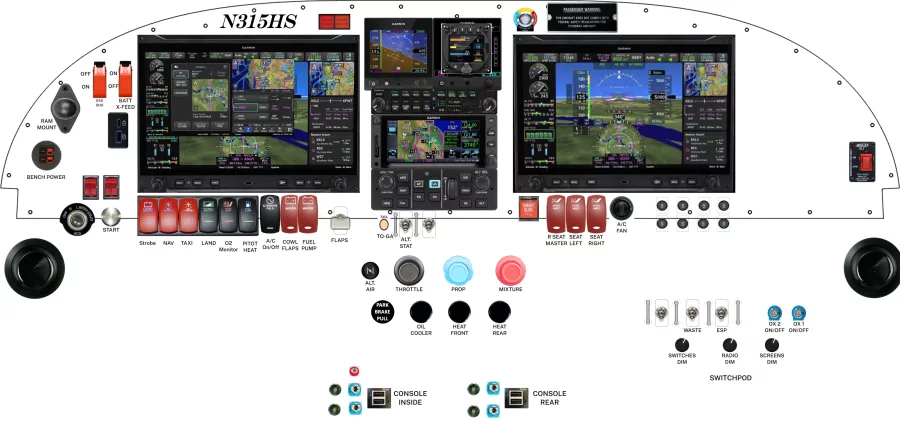

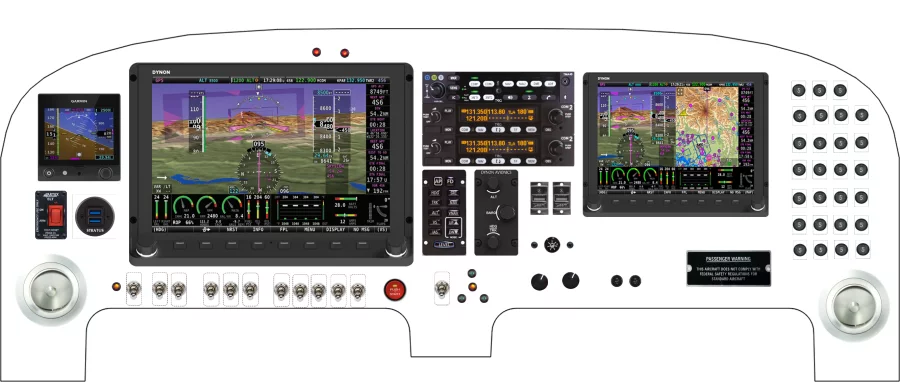

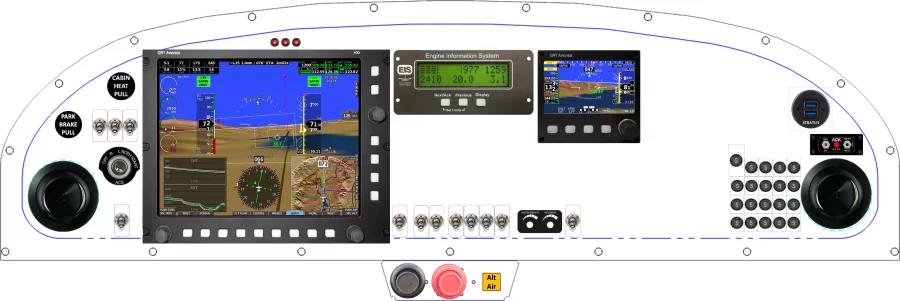

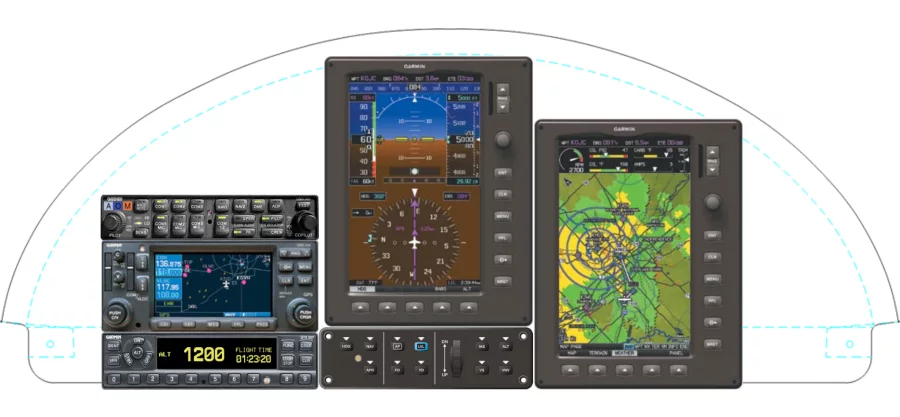

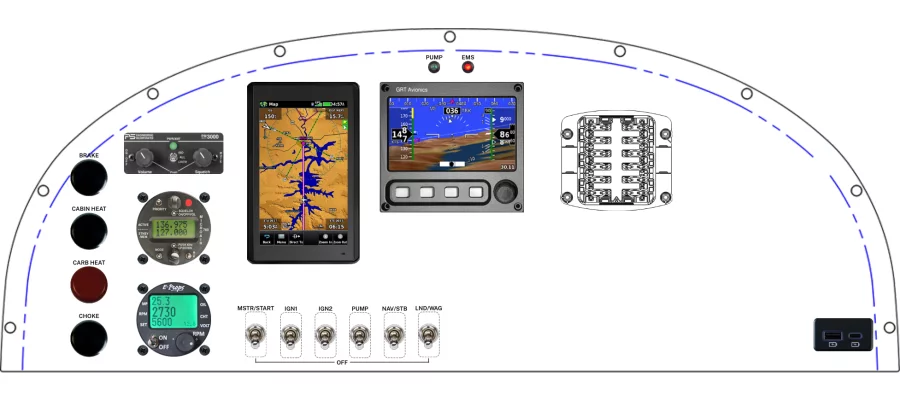

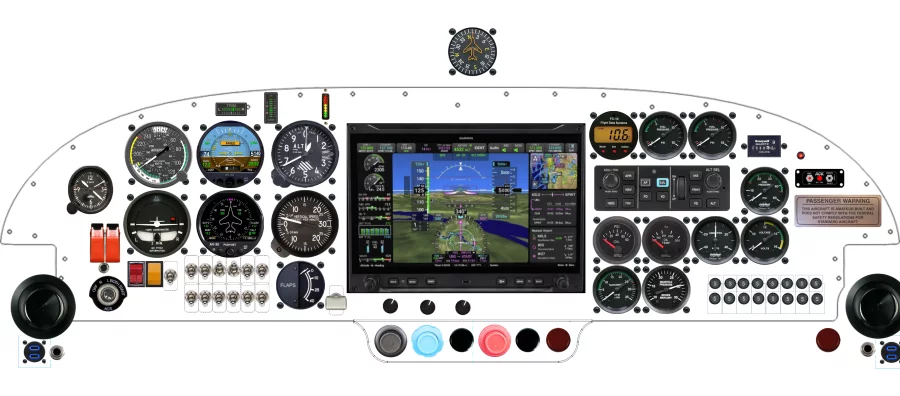

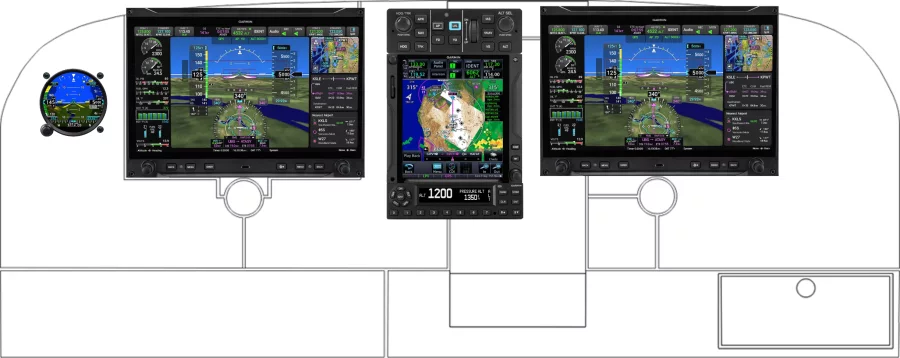

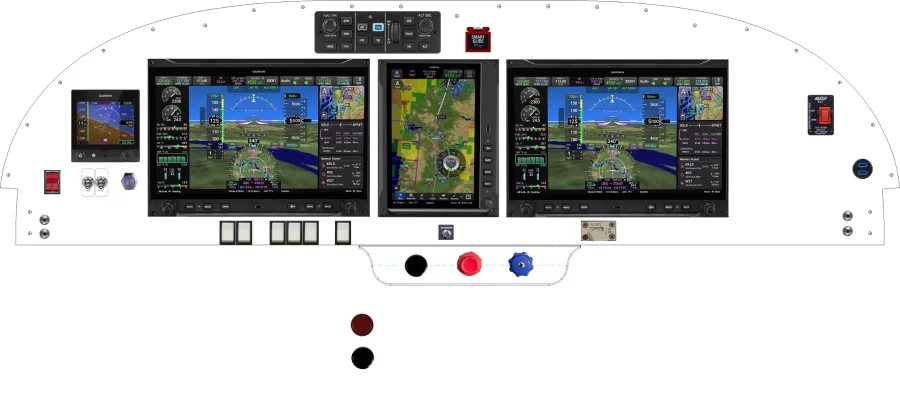

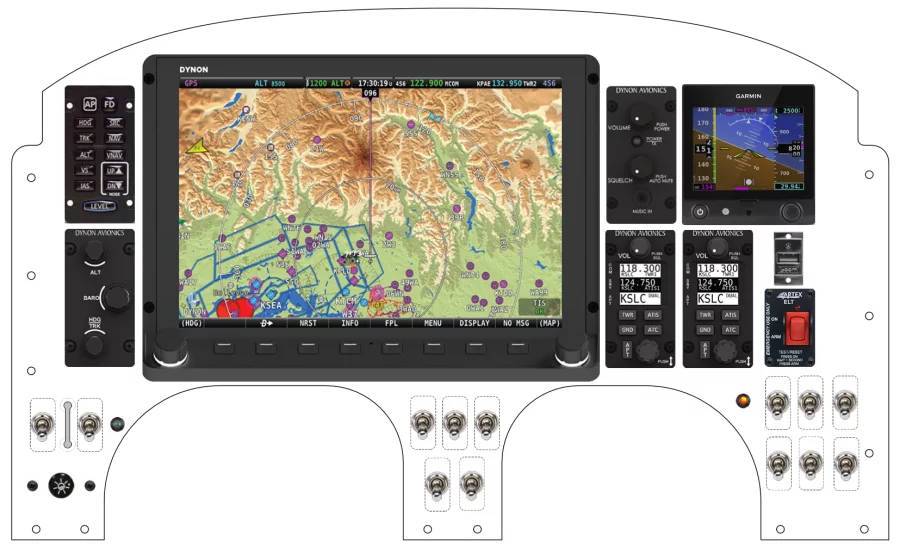

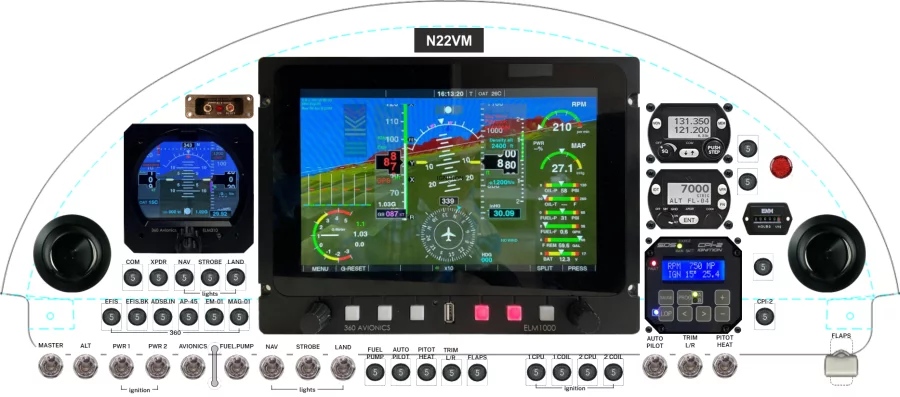

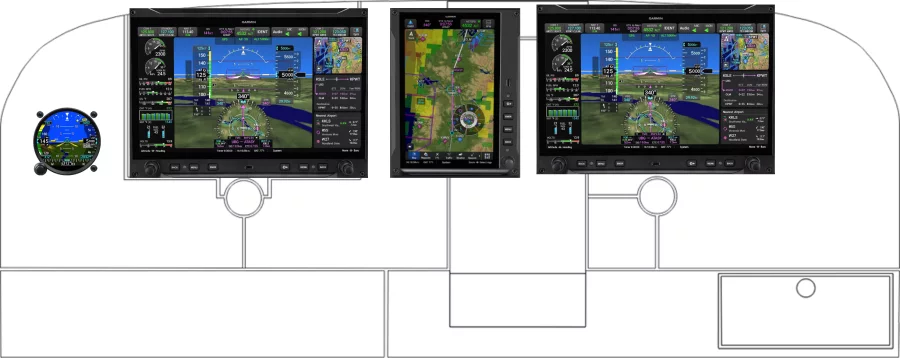

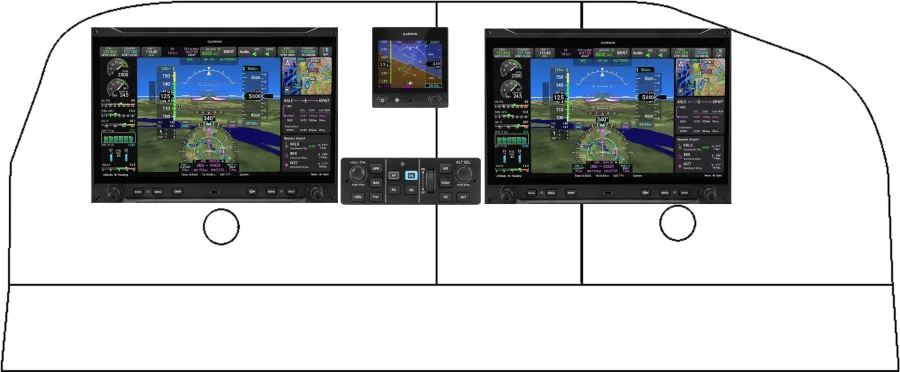

Panel layouts builders have exported from the designer.
Panel templates by aircraft

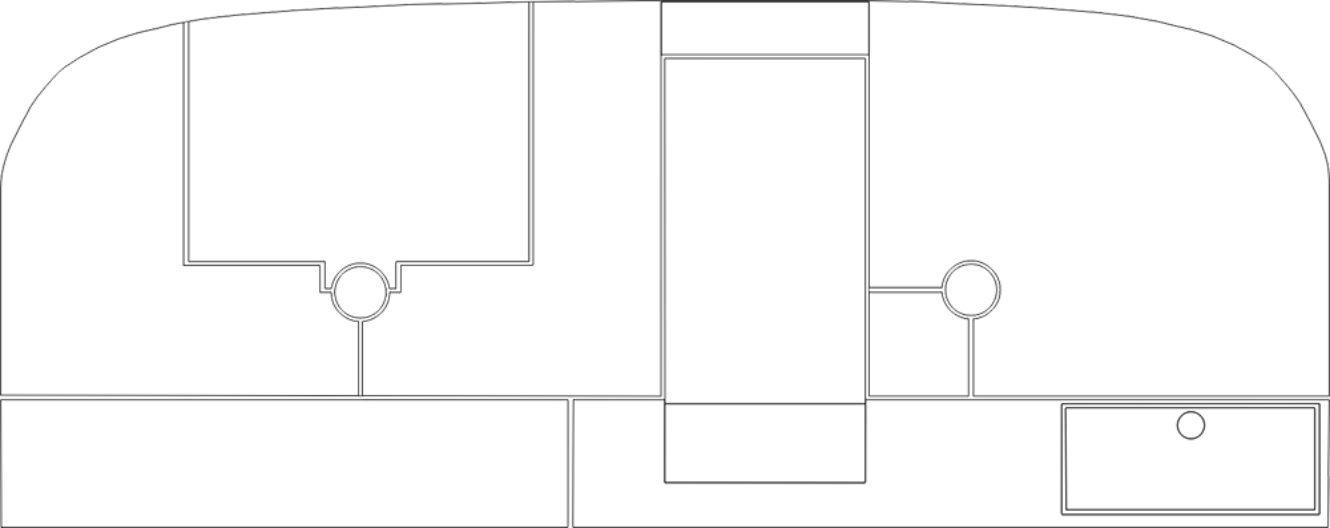

Each template is at the panel's real dimensions. The most laid out:
- Van's Aircraft RV-7/9 1,380
- Van's Aircraft RV-8 1,271
- Piper Aircraft PA-28 739
- Van's Aircraft RV-14 710
- Van's Aircraft RV-10 571
- Van's Aircraft RV-6 551
- Cessna 172 528
- Cessna 180 / 185 525
- Cessna 182P, Q, R, R182, TR182 427
- Van's Aircraft RV-4 390
- RANS Aircraft S-20 / S-21 343
- Kitfox Aircraft Model 5/7 294
From layout to finished panel
Lay out your aircraft's instrument panel
Choose the panel template for your aircraft, then place instruments and avionics at their manufacturer-specified dimensions, with alignment, spacing, snapping and a position readout in inches.
Export the layout and the equipment list
Export a shareable panel image and an equipment list with manufacturer, model and part number for every item installed.

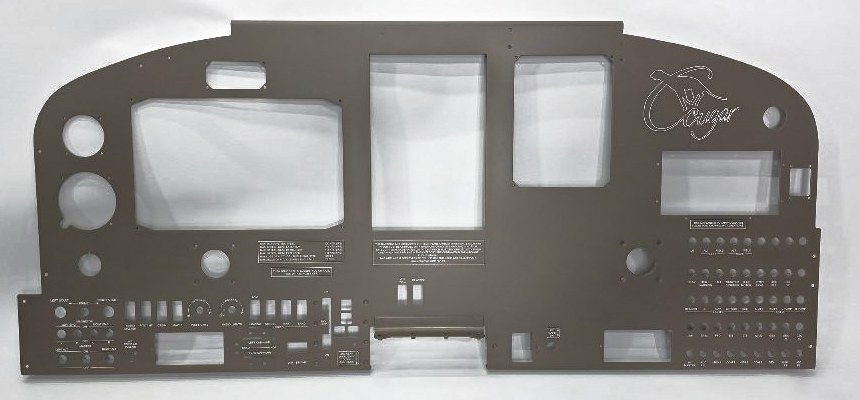

CAD, cut, paint and label
Send the finished layout to our shop. We model it in CAD, quote the work, then cut, paint and label the panel.
