Piper Aircraft PA-34 instrument panel
The PA-34 panel template at the panel's dimensions, 50.01 × 18.25 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
87 panels laid out on this template
Also written PA34 or PA 34.

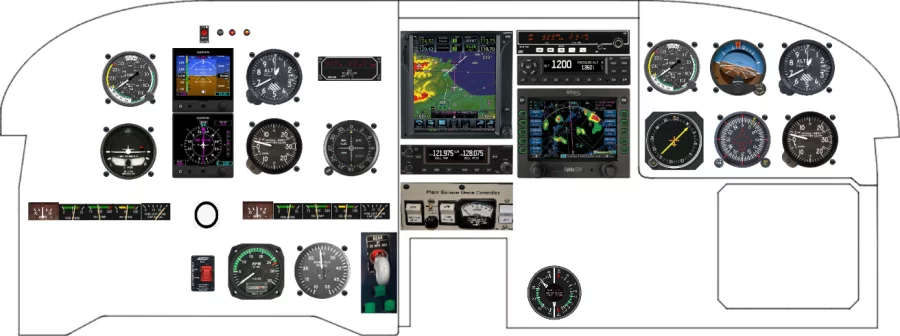

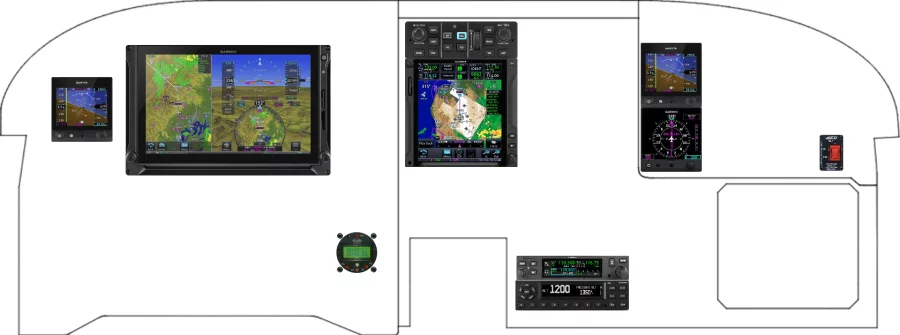

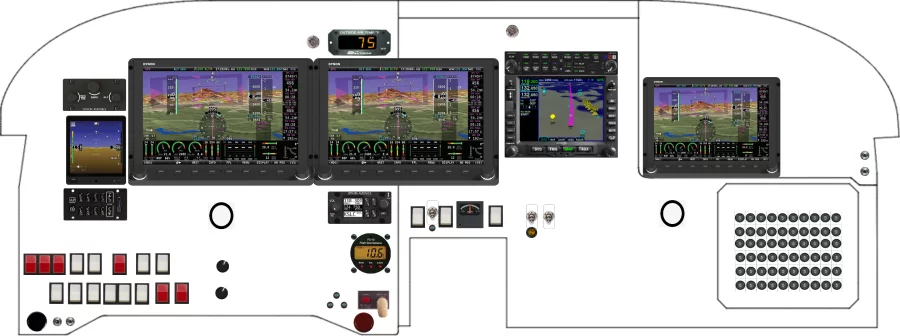

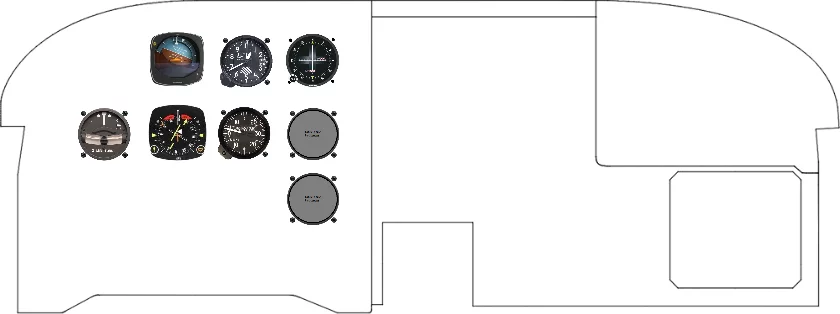

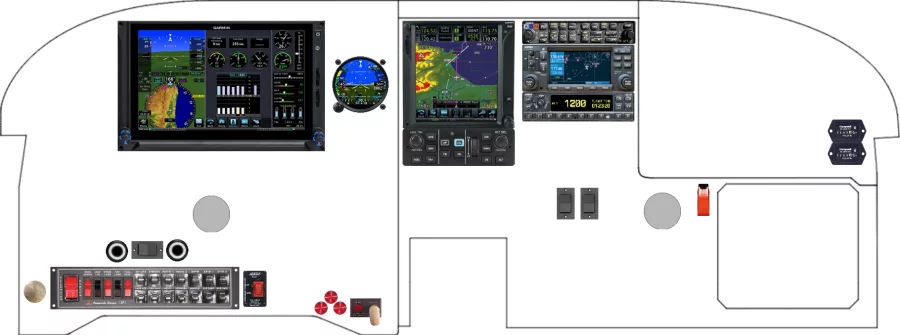

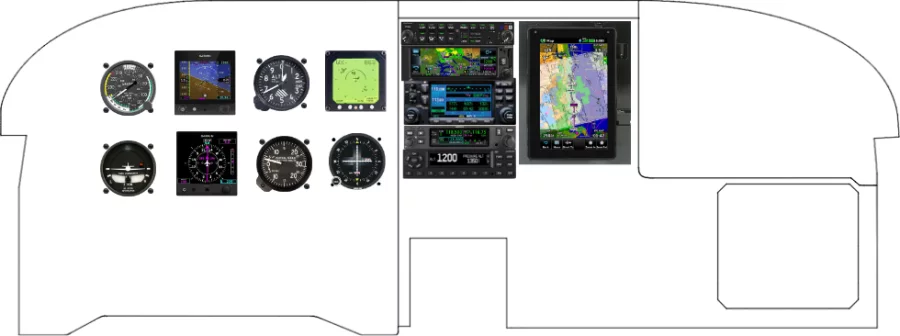

Recent PA-34 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a PA-34 panel
The equipment placed most often across the 87 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GNS 430 | 44 | 51% |
| Garmin International, Inc GFC 500 | 41 | 47% |
| Garmin International, Inc GMA 340 | 39 | 45% |
| Garmin International, Inc GI 275 ADI | 38 | 44% |
| Honeywell Sensing Hobbs Meter | 35 | 40% |
| Composite Design LSA Power Panel | 35 | 40% |
| Garmin International, Inc GTN 750 | 35 | 40% |
| Aero Safety Systems AH500SD | 27 | 31% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-34 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
