Piper Aircraft PA-31 instrument panel
The PA-31 panel template at the panel's dimensions, 46.94 × 15.15 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
25 panels laid out on this template
Also written PA31 or PA 31.

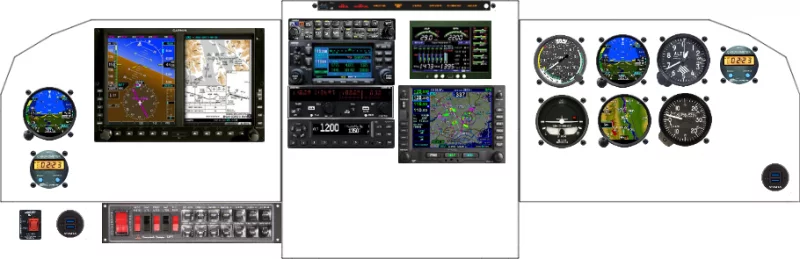

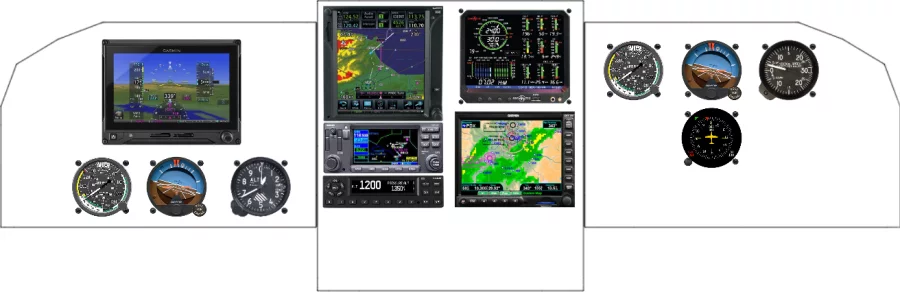

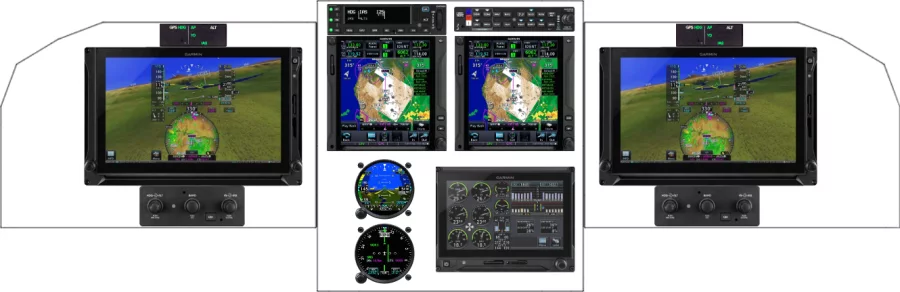

Recent PA-31 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a PA-31 panel
The equipment placed most often across the 25 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GTX 345 | 7 | 28% |
| Garmin International, Inc GI 275 ADI | 7 | 28% |
| Falcon Gauge Vertical Speed Indicator | 5 | 20% |
| Garmin International, Inc GNS 430W | 5 | 20% |
| Falcon Gauge Altimeter 3" | 5 | 20% |
| Falcon Gauge Airspeed Indicator 3" | 5 | 20% |
| Garmin International, Inc GTN 750Xi | 4 | 16% |
| Attitude Indicator | 3 | 12% |
