Piper Aircraft Cherokee 180C instrument panel
The Cherokee 180C panel template at the panel's dimensions, 40.25 × 14.94 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
37 panels laid out on this template

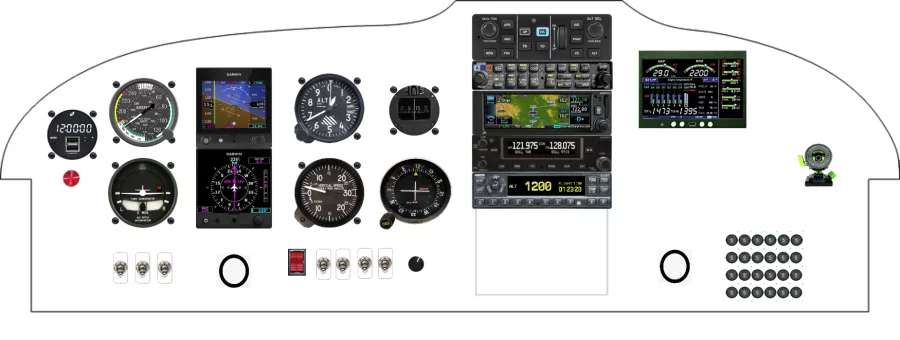

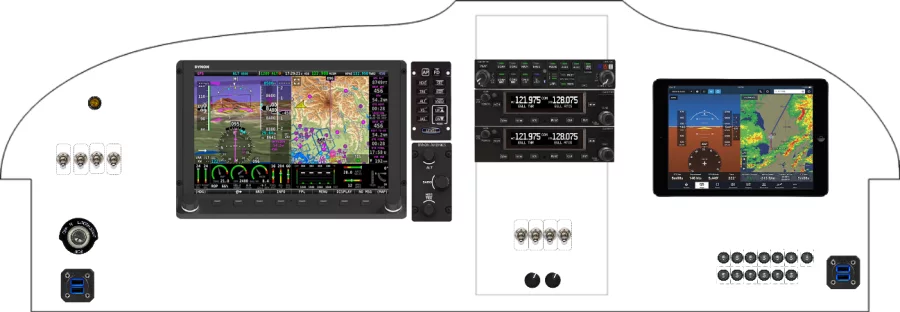

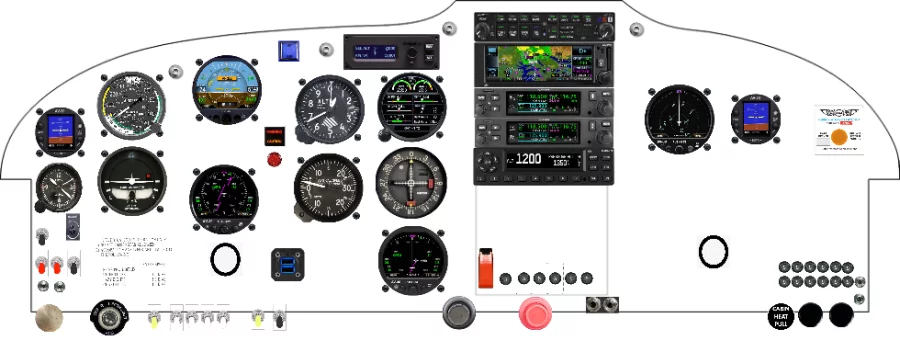

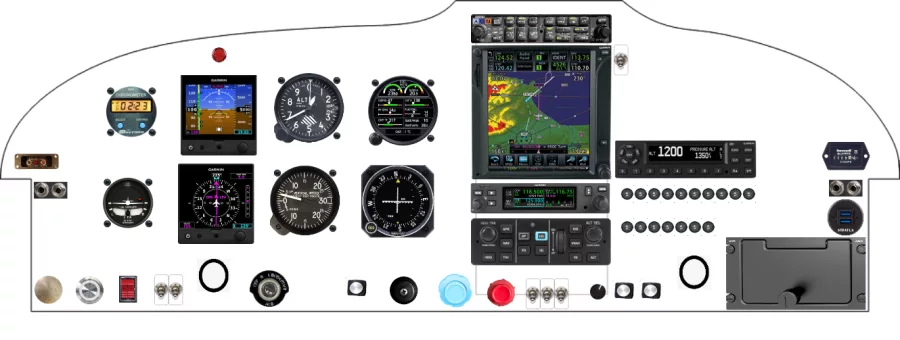

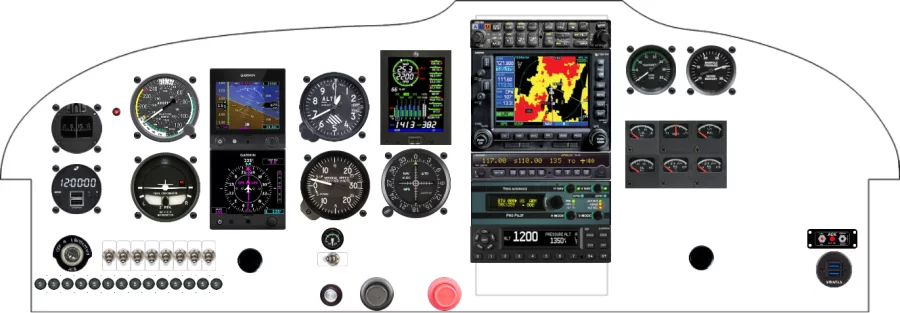

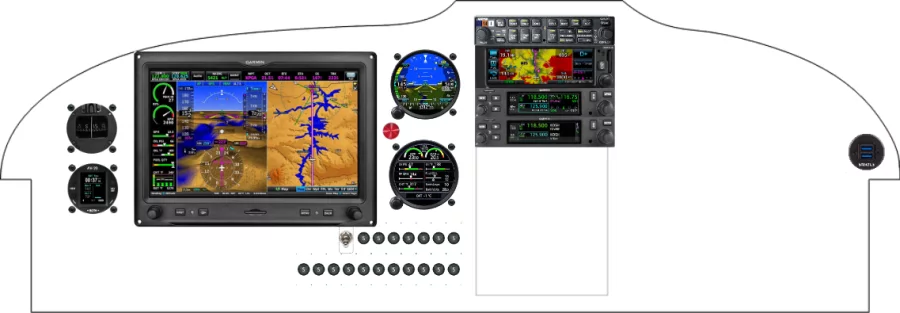

Recent Cherokee 180C panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Cherokee 180C panel
The equipment placed most often across the 37 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Altimeter 3" | 18 | 49% |
| Falcon Gauge Airspeed Indicator 3" | 17 | 46% |
| Airpath Instrument Company Panel Mount Compass | 14 | 38% |
| Falcon Gauge Vertical Speed Indicator | 14 | 38% |
| Garmin International, Inc G5 | 12 | 32% |
| Garmin International, Inc GNC 215 | 12 | 32% |
| Garmin International, Inc GMA 340 | 11 | 30% |
| Garmin International, Inc GFC 500 | 11 | 30% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the Cherokee 180C panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
