CubCrafters EX-3 instrument panel
The EX-3 panel template at the panel's dimensions, 30 × 10.32 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
17 panels laid out on this template
Also written EX3 or EX 3.

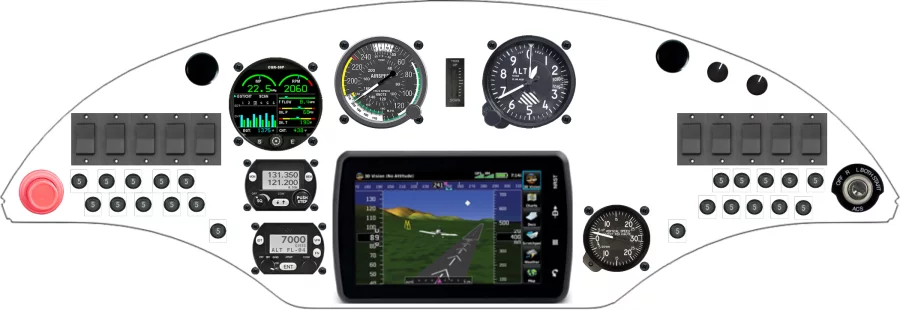

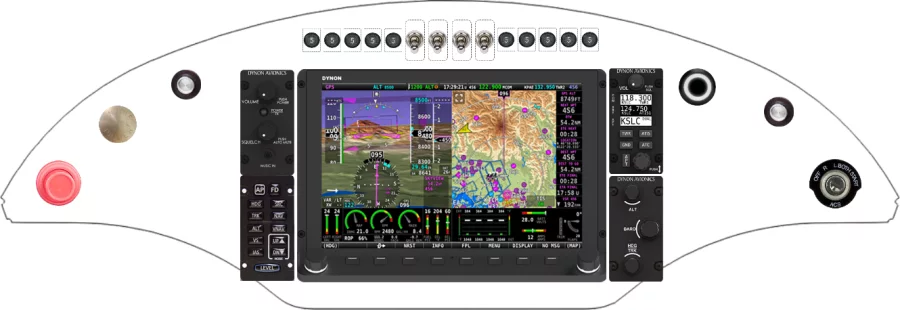

Recent EX-3 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an EX-3 panel
The equipment placed most often across the 17 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 500 | 5 | 29% |
| Garmin International, Inc G3X Touch | 5 | 29% |
| Garmin International, Inc G5 | 4 | 24% |
| Sensa Technologies 7277 | 3 | 18% |
| Dynon Avionics VHF COM | 2 | 12% |
| Falcon Gauge Airspeed Indicator 2" | 2 | 12% |
| Falcon Gauge Altimeter 2" | 2 | 12% |
| Falcon Gauge Vertical Speed Indicator | 2 | 12% |
Other CubCrafters panels
From layout to fabricated panel
Lay out the EX-3 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
