CubCrafters Carbon Cub instrument panel
The Carbon Cub panel template at the panel's dimensions, 30.99 × 10.37 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
109 panels laid out on this template

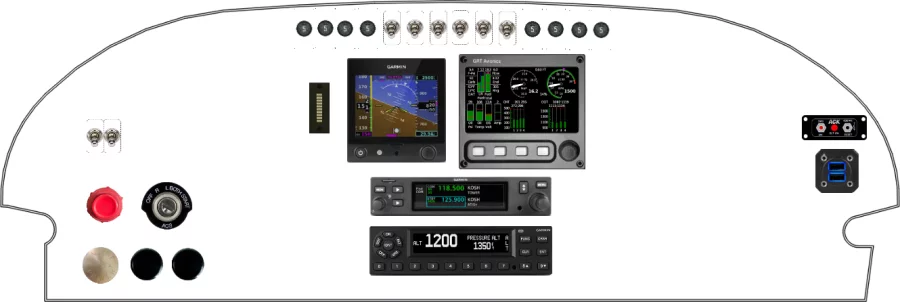

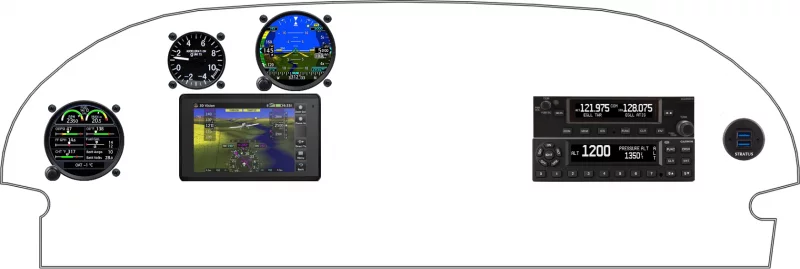

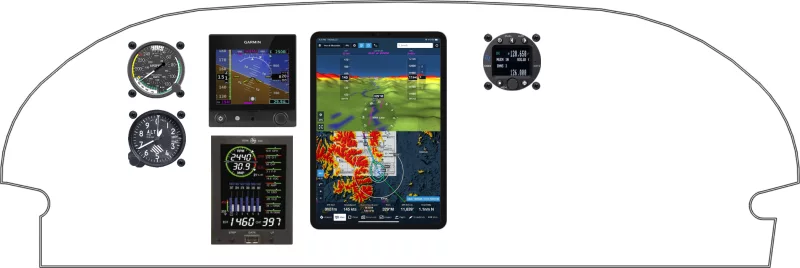

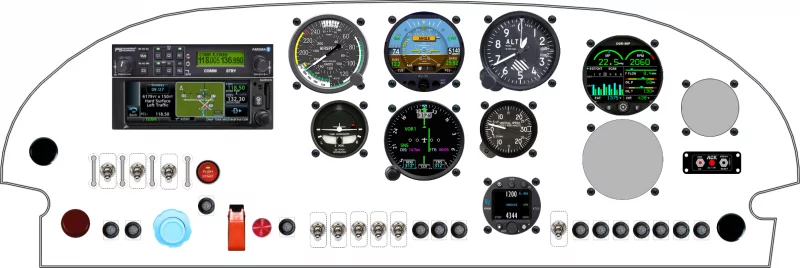

Recent Carbon Cub panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Carbon Cub panel
The equipment placed most often across the 109 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 27 | 25% |
| Falcon Gauge Altimeter 3" | 26 | 24% |
| Falcon Gauge Vertical Speed Indicator | 23 | 21% |
| Sensa Technologies 7277 | 22 | 20% |
| Garmin International, Inc G5 | 17 | 16% |
| ACK Technologies ELT | 14 | 13% |
| Garmin International, Inc G3X Touch | 14 | 13% |
| Garmin International, Inc GNC 255 | 12 | 11% |
Other CubCrafters panels
From layout to fabricated panel
Lay out the Carbon Cub panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
