Cessna 414 instrument panel
The 414 panel template at the panel's dimensions, 52.51 × 26.25 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
27 panels laid out on this template

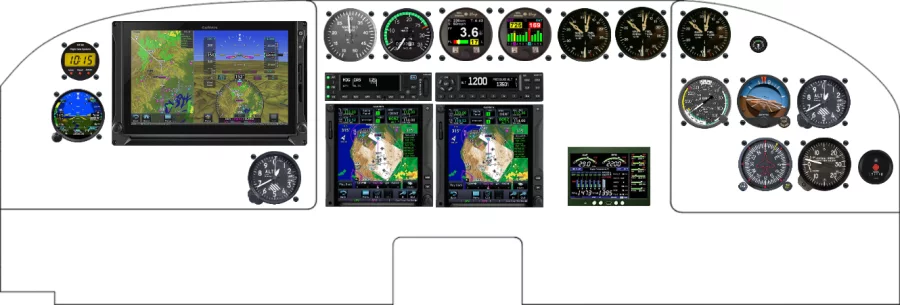

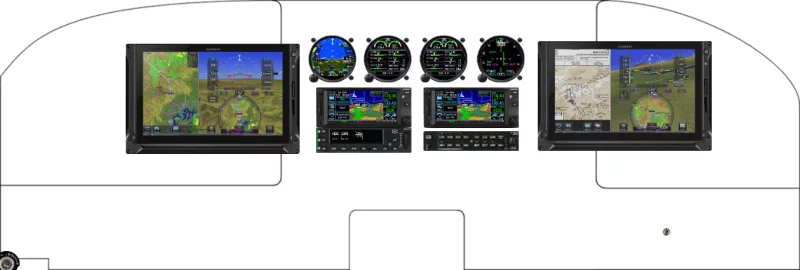

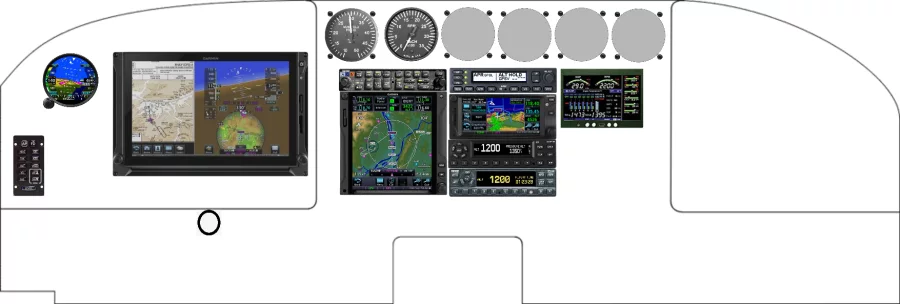

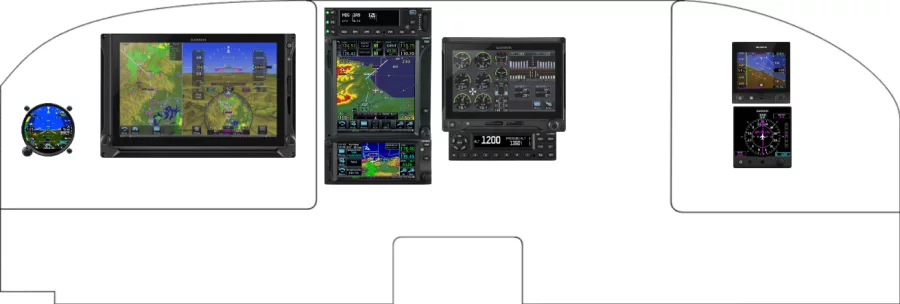

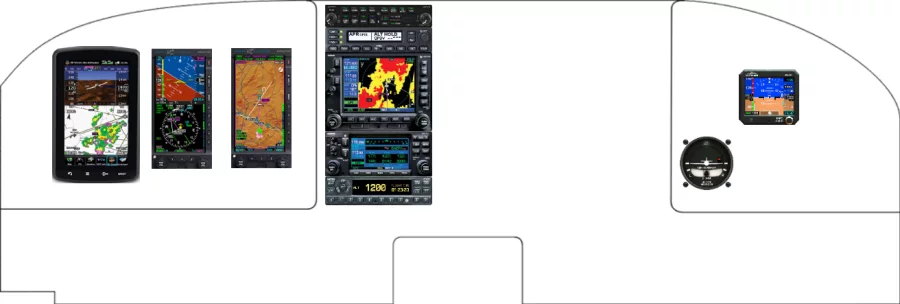

Recent 414 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 414 panel
The equipment placed most often across the 27 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GTN 750Xi | 11 | 41% |
| Garmin International, Inc GTX 345 | 8 | 30% |
| Garmin International, Inc GMA 340 | 8 | 30% |
| Garmin International, Inc GI 275 ADI | 7 | 26% |
| Attitude Indicator | 6 | 22% |
| Falcon Gauge Altimeter 3" | 6 | 22% |
| Garmin International, Inc GTX 330 | 5 | 19% |
| Garmin International, Inc G600 | 5 | 19% |
Other Cessna panels
From layout to fabricated panel
Lay out the 414 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
