Cessna 182S instrument panel
The 182S panel template at the panel's dimensions, 41.5 × 16.6 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
29 panels laid out on this template

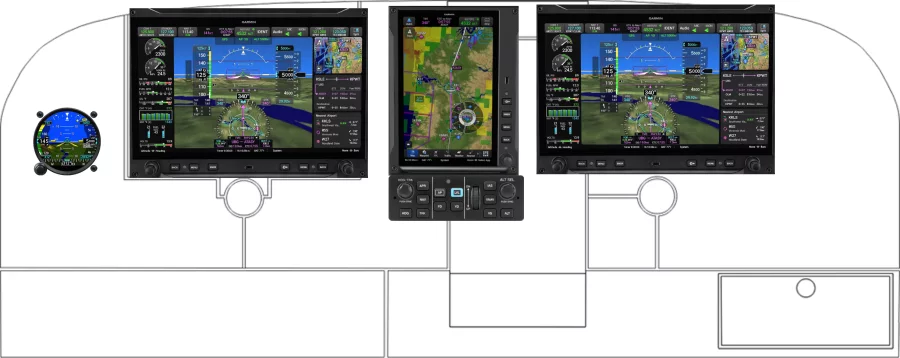

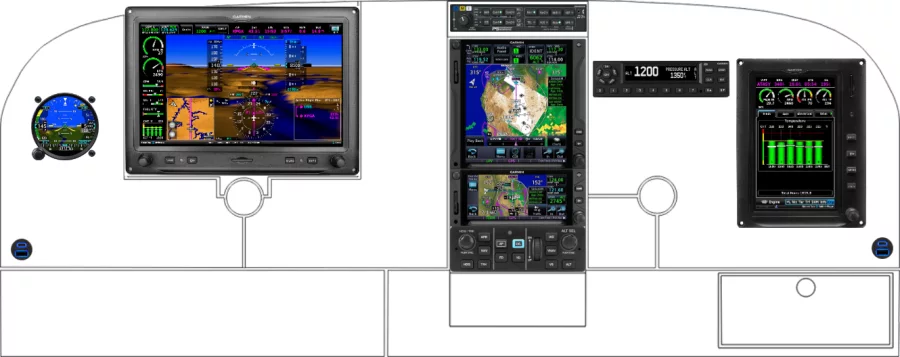

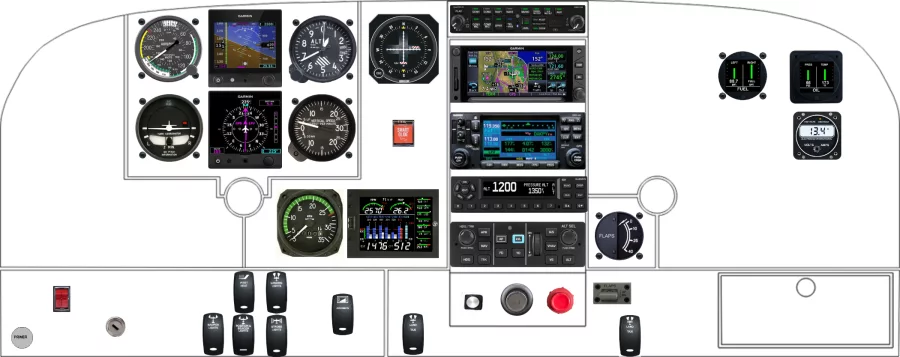

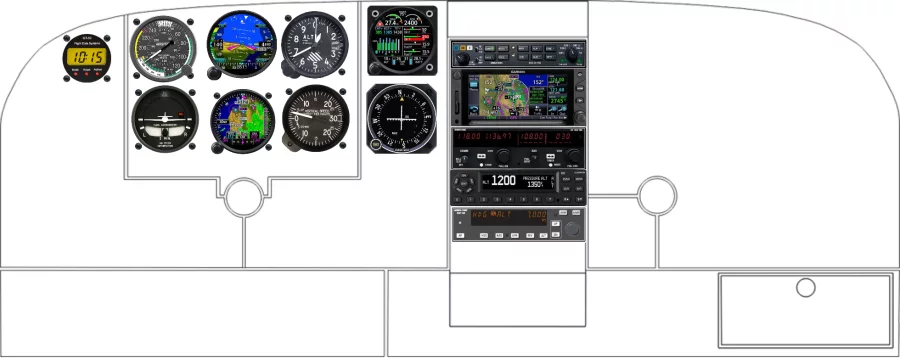

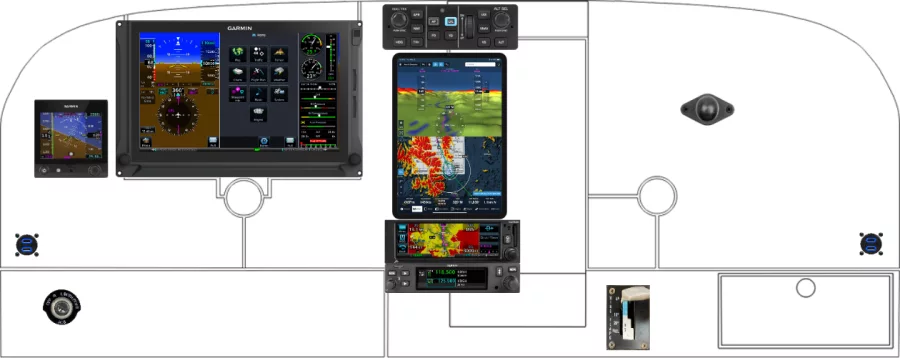

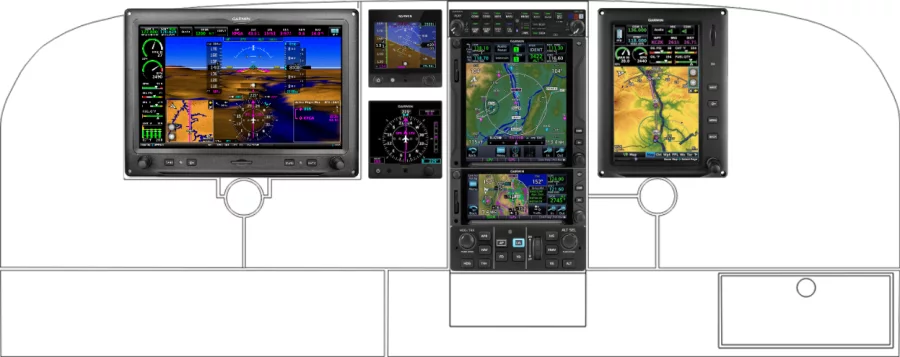

Recent 182S panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 182S panel
The equipment placed most often across the 29 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 500 | 9 | 31% |
| Garmin International, Inc GTN 750Xi | 8 | 28% |
| Garmin International, Inc GTX 345 | 8 | 28% |
| Garmin International, Inc GI 275 ADI | 7 | 24% |
| Dynon Avionics Dynon SkyView HDX 10" | 7 | 24% |
| Dynon Avionics Autopilot Panel | 7 | 24% |
| Garmin International, Inc GTN 650Xi | 7 | 24% |
| Dynon Avionics VHF COM | 6 | 21% |
Other Cessna panels
From layout to fabricated panel
Lay out the 182S panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
