Cessna 182J instrument panel
The 182J panel template at the panel's dimensions, 44.27 × 17.27 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
49 panels laid out on this template

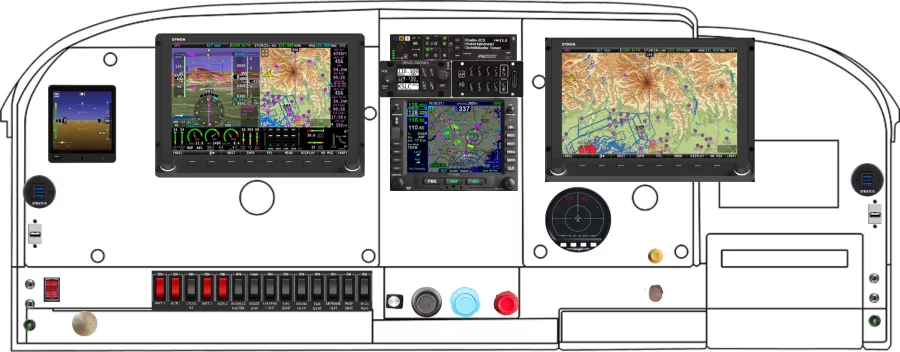

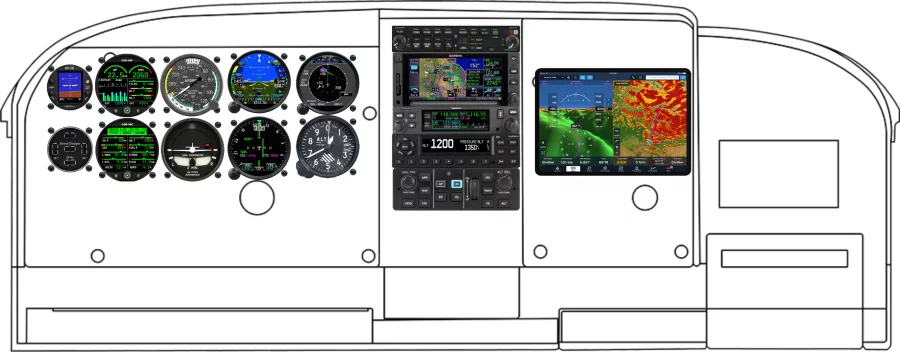

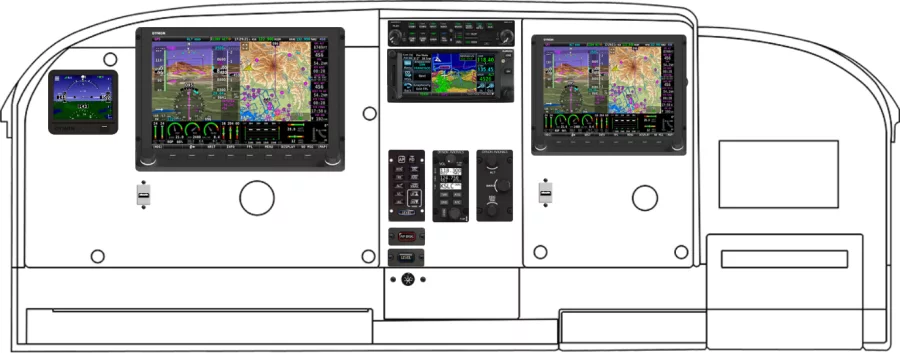

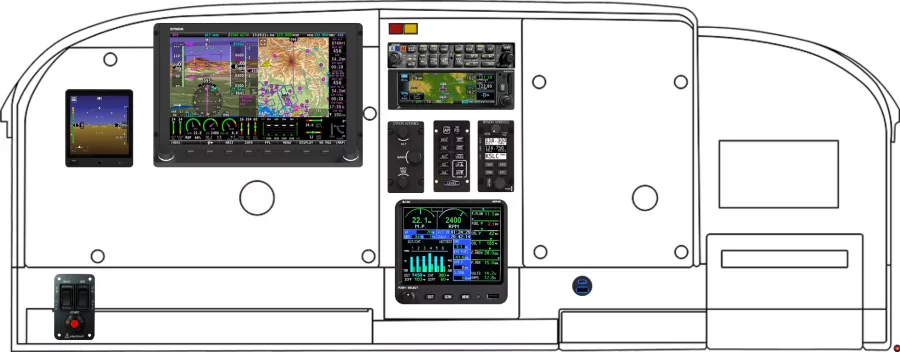

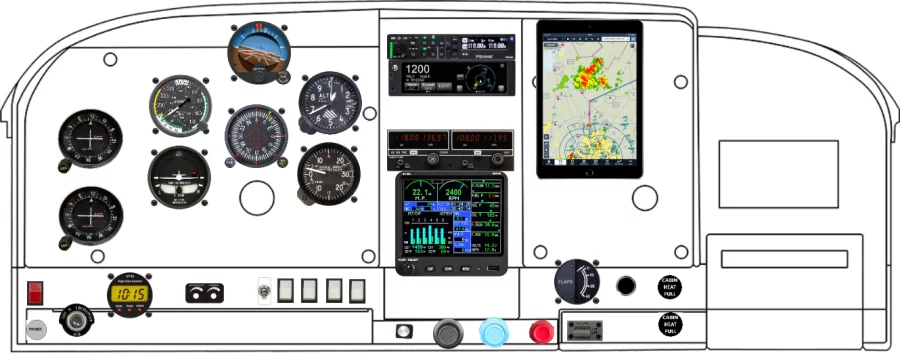

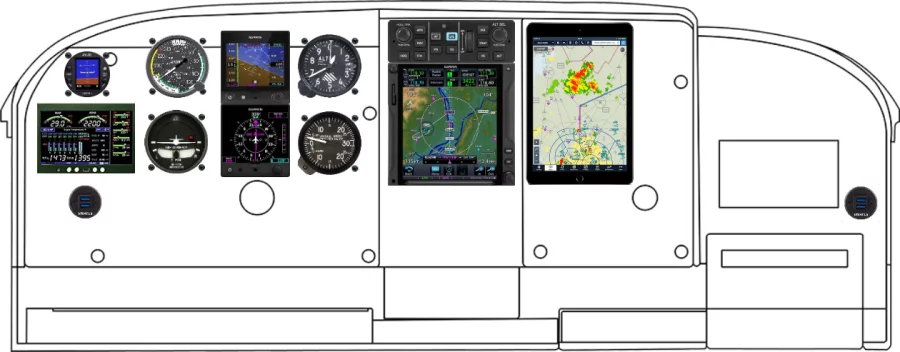

Recent 182J panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 182J panel
The equipment placed most often across the 49 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Airspeed Indicator 3" | 14 | 29% |
| Dynon Avionics Autopilot Panel | 12 | 24% |
| Dynon Avionics VHF COM | 10 | 20% |
| PS Engineering PMA450B | 10 | 20% |
| Garmin International, Inc GFC 500 | 9 | 18% |
| Garmin International, Inc GI 275 ADI | 9 | 18% |
| Garmin International, Inc G5 | 9 | 18% |
| Falcon Gauge Altimeter 3" | 9 | 18% |
Other Cessna panels
From layout to fabricated panel
Lay out the 182J panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
