Cessna 182B/C instrument panel
The 182B/C panel template at the panel's dimensions, 38.55 × 19.35 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
42 panels laid out on this template

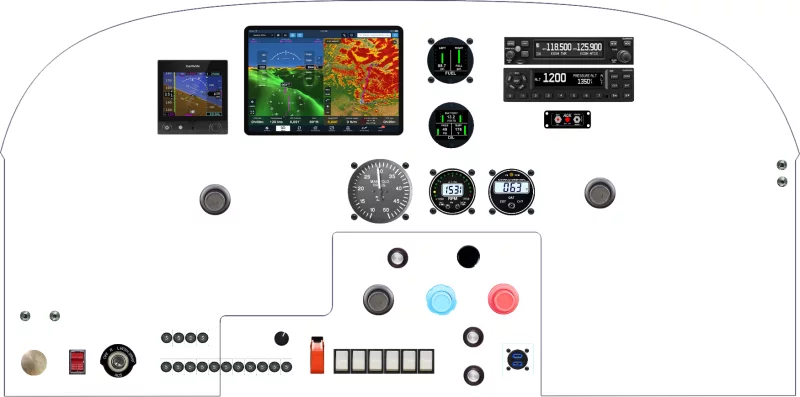

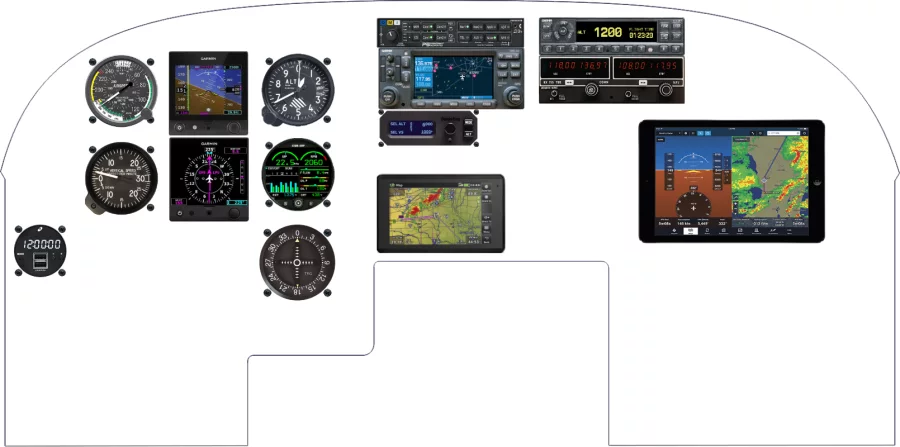

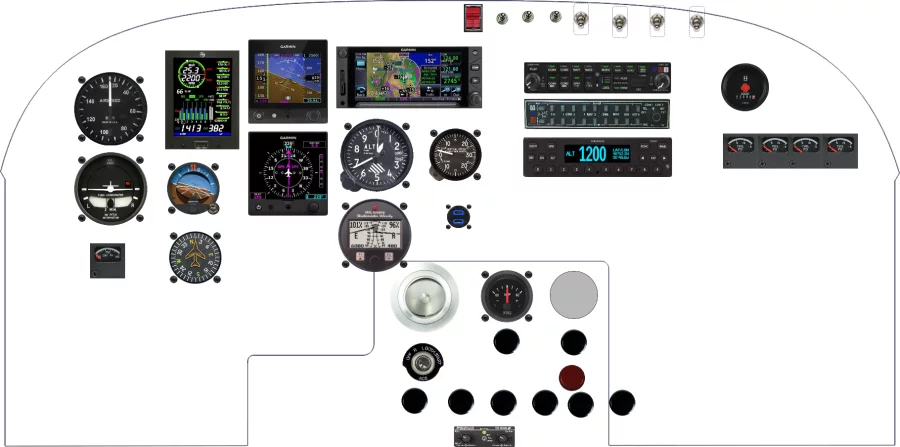

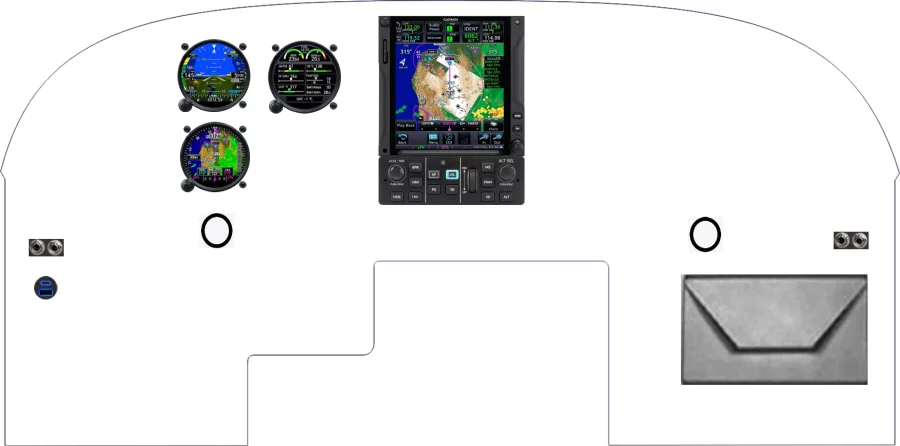

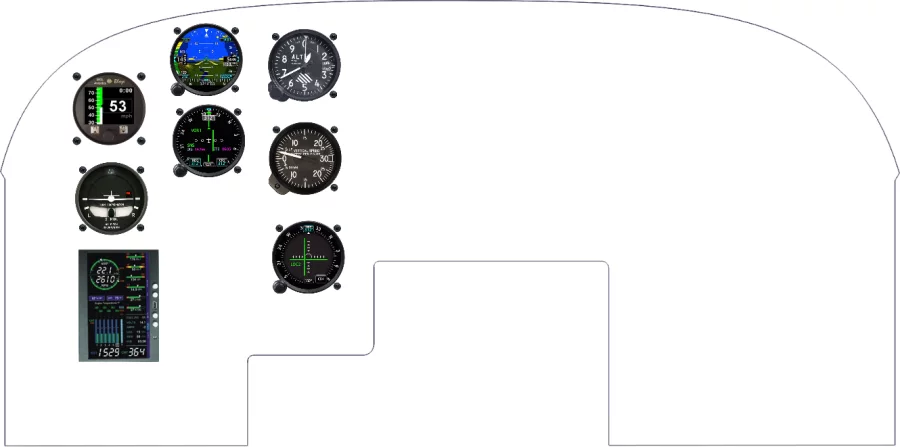

Recent 182B/C panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 182B/C panel
The equipment placed most often across the 42 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Vertical Speed Indicator | 13 | 31% |
| Falcon Gauge Altimeter 3" | 13 | 31% |
| Garmin International, Inc G5 | 12 | 29% |
| Garmin International, Inc GSB 15 | 9 | 21% |
| Garmin International, Inc GMA 345 | 8 | 19% |
| Falcon Gauge Airspeed Indicator 3" | 8 | 19% |
| Garmin International, Inc GTN 650Xi | 8 | 19% |
| Mitchell Aircraft Products, Inc Fuel Pressure Gauge | 7 | 17% |
Other Cessna panels
From layout to fabricated panel
Lay out the 182B/C panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
