Cessna 120 instrument panel
The 120 panel template at the panel's dimensions, 35.67 × 14.13 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
12 panels laid out on this template

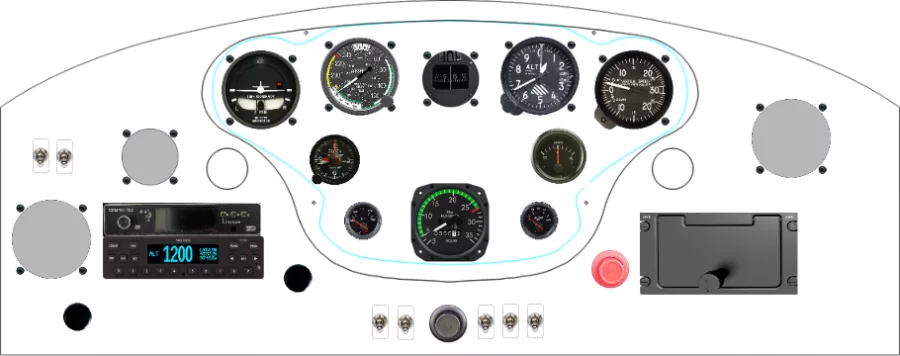

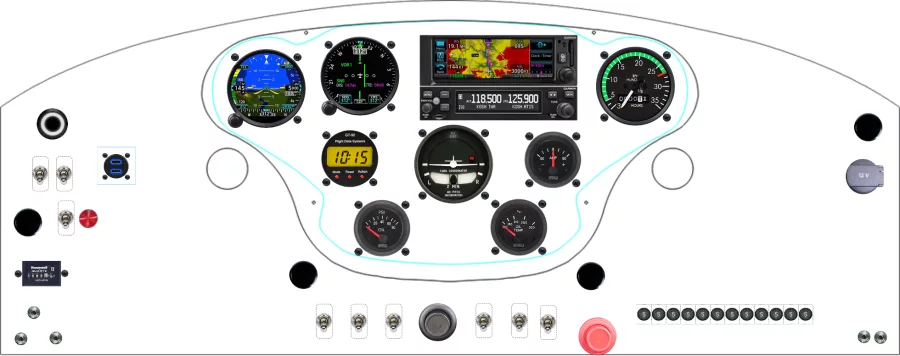

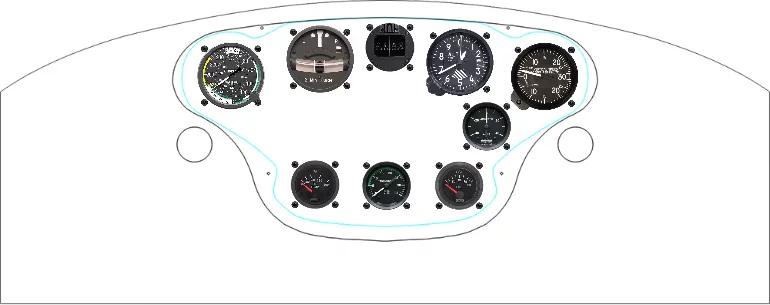

Recent 120 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 120 panel
The equipment placed most often across the 12 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Mitchell Aircraft Products, Inc Oil Pressure Gauge | 7 | 58% |
| Mitchell Aircraft Products, Inc Oil Temperature Gauge | 7 | 58% |
| Falcon Gauge Altimeter 3" | 6 | 50% |
| Garmin International, Inc GI 275 ADI | 5 | 42% |
| Falcon Gauge Vertical Speed Indicator | 5 | 42% |
| Falcon Gauge Airspeed Indicator 3" | 5 | 42% |
| Garmin International, Inc GTR 200 | 4 | 33% |
| Garmin International, Inc GI 275 HSI | 4 | 33% |
Other Cessna panels
From layout to fabricated panel
Lay out the 120 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
