Beechcraft Baron 55 instrument panel
The Baron 55 panel template at the panel's dimensions, 41.35 × 21.3 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
83 panels laid out on this template

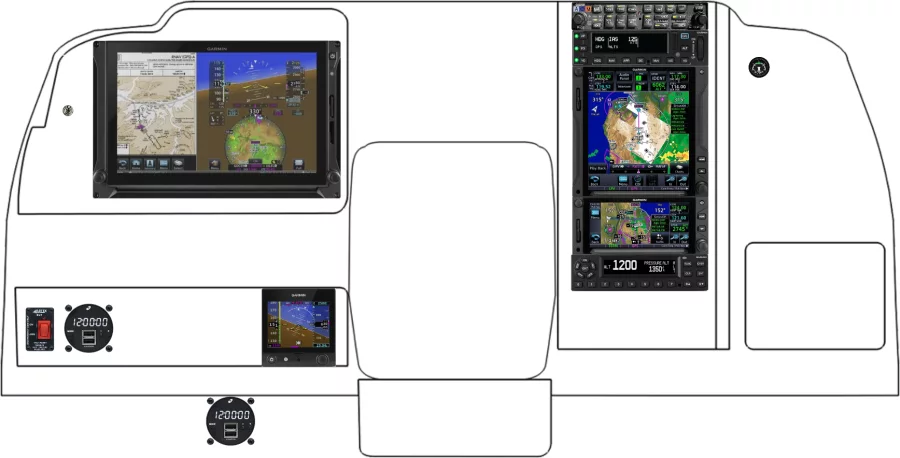

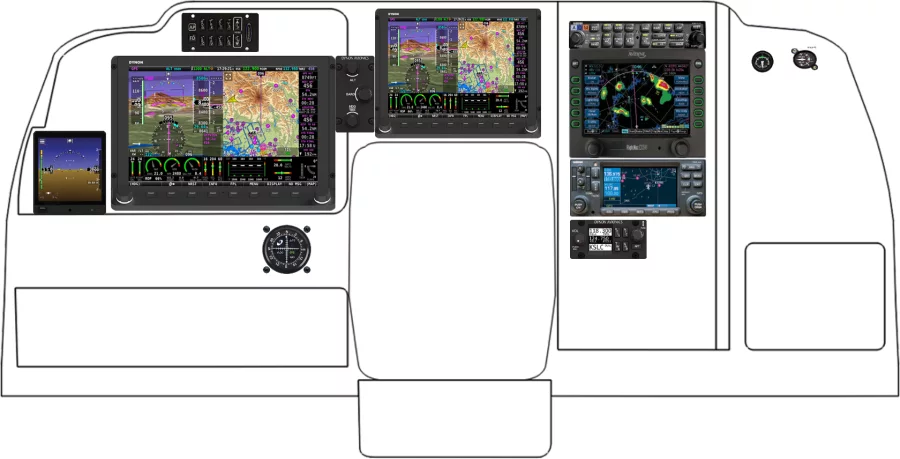

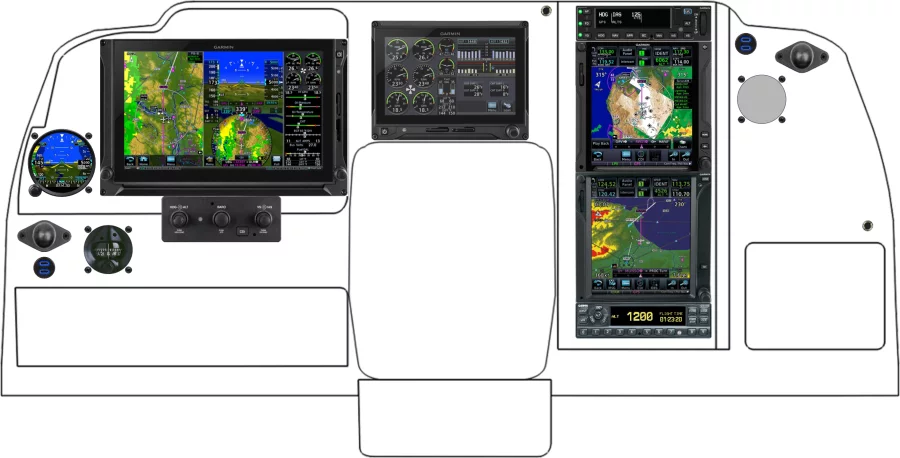

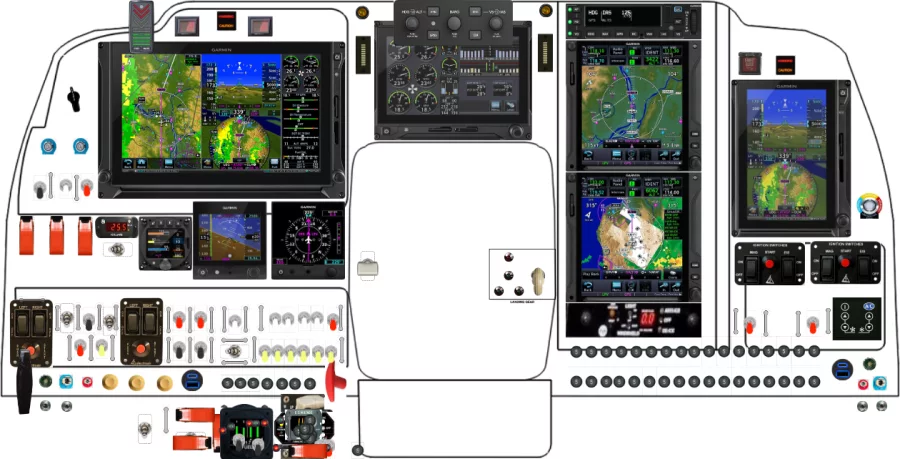

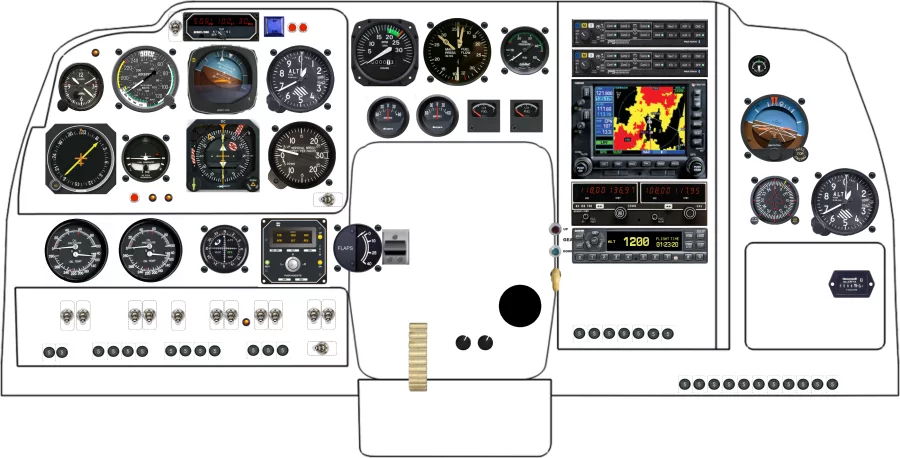

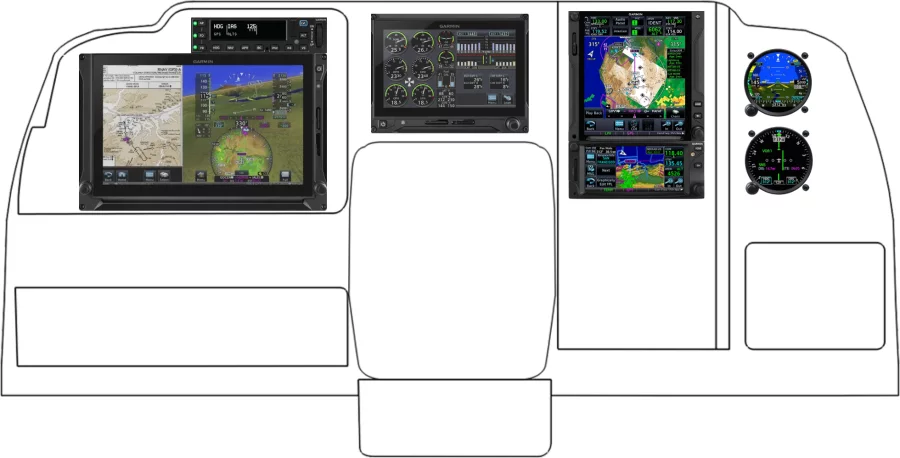

Recent Baron 55 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Baron 55 panel
The equipment placed most often across the 83 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 600 | 31 | 37% |
| Garmin International, Inc GTN 750Xi | 30 | 36% |
| Garmin International, Inc GI 275 ADI | 27 | 33% |
| Garmin International, Inc G600 TXi GDU 700L | 19 | 23% |
| Garmin International, Inc GTX 345 | 16 | 19% |
| Garmin International, Inc G5 | 15 | 18% |
| Falcon Gauge Vertical Speed Indicator | 14 | 17% |
| Falcon Gauge Altimeter 3" | 14 | 17% |
Other Beechcraft panels
From layout to fabricated panel
Lay out the Baron 55 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
