Beechcraft A36 instrument panel
The A36 panel template at the panel's dimensions, 42.44 × 21.25 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
194 panels laid out on this template
2 templates for the A36
42.44 × 21.25 in
40.5 × 20.27 in

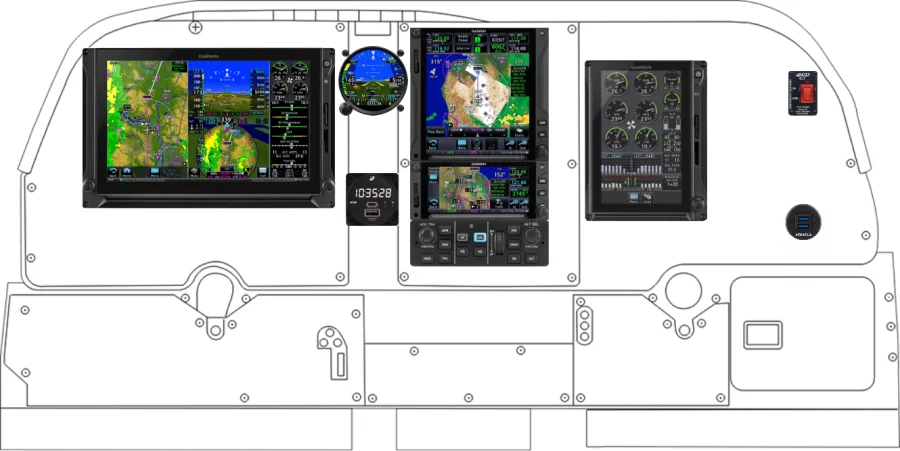

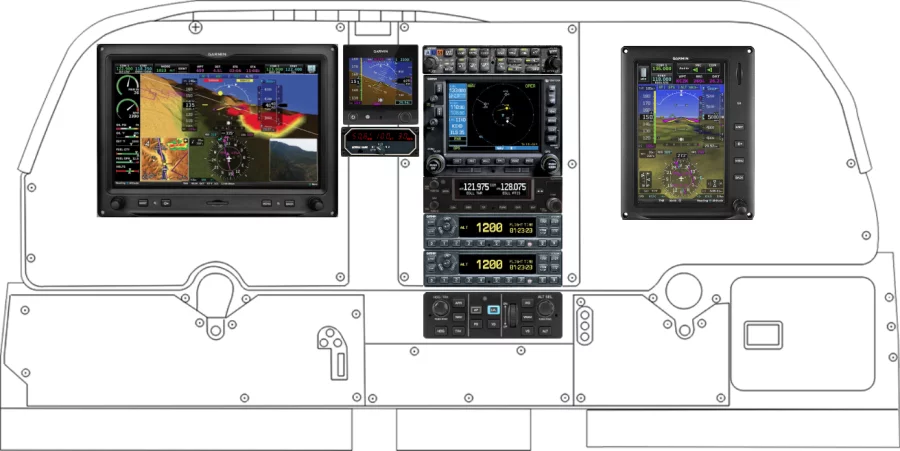

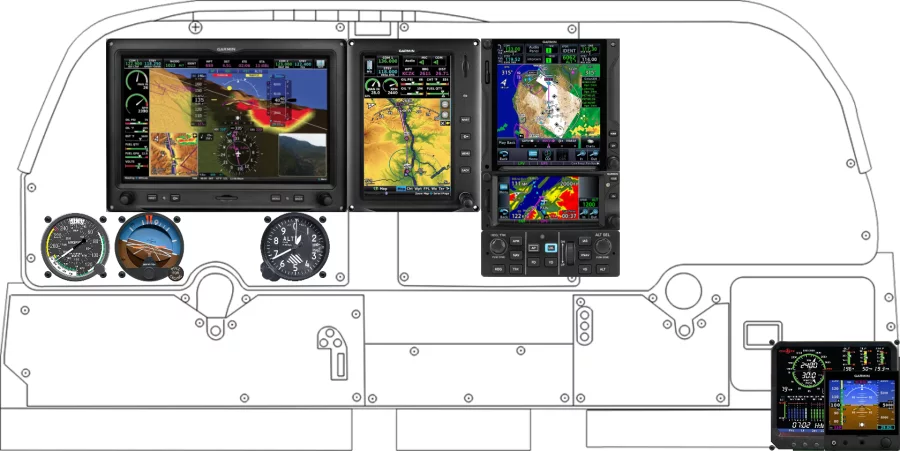

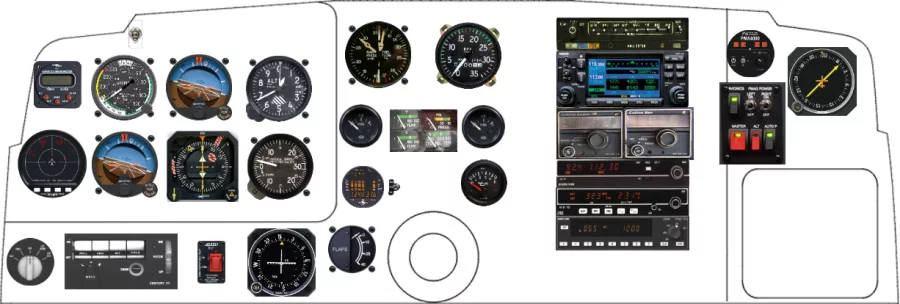

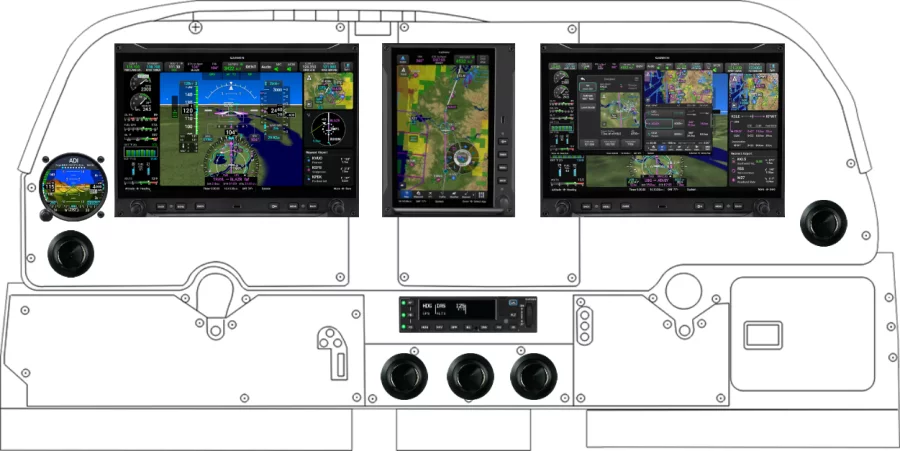

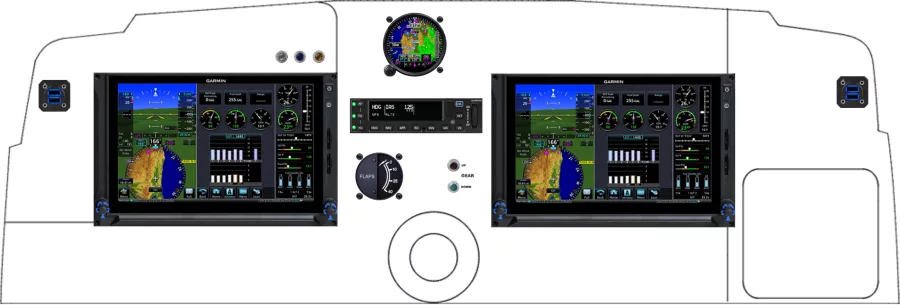

Recent A36 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an A36 panel
The equipment placed most often across the 194 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GFC 500 | 78 | 40% |
| Garmin International, Inc G5 | 61 | 31% |
| Garmin International, Inc GTN 750Xi | 57 | 29% |
| Garmin International, Inc G3X Touch | 55 | 28% |
| Garmin International, Inc GI 275 ADI | 53 | 27% |
| Falcon Gauge Altimeter 3" | 45 | 23% |
| Falcon Gauge Airspeed Indicator 3" | 44 | 23% |
| Garmin International, Inc GTX 345 | 44 | 23% |
