Zenith Aircraft Company STOL CH 750 instrument panel
The STOL CH 750 panel template at the panel's dimensions, 31.5 × 11.04 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
285 panels laid out on these 6 templates
6 templates for the STOL CH 750
Zenith Aircraft Company · And SD
Start a panel layout on this template
Zenith Aircraft Company · With consoles
Start a panel layout on this template
Hangar Flying · Modular Instrument Panel
Start a panel layout on this template
Hangar Flying · Modular Instrument Panel w/Consoles
Start a panel layout on this template
Zenith Aircraft Company · With flanges
Start a panel layout on this template
Zenith Aircraft Company · With markups
Start a panel layout on this template

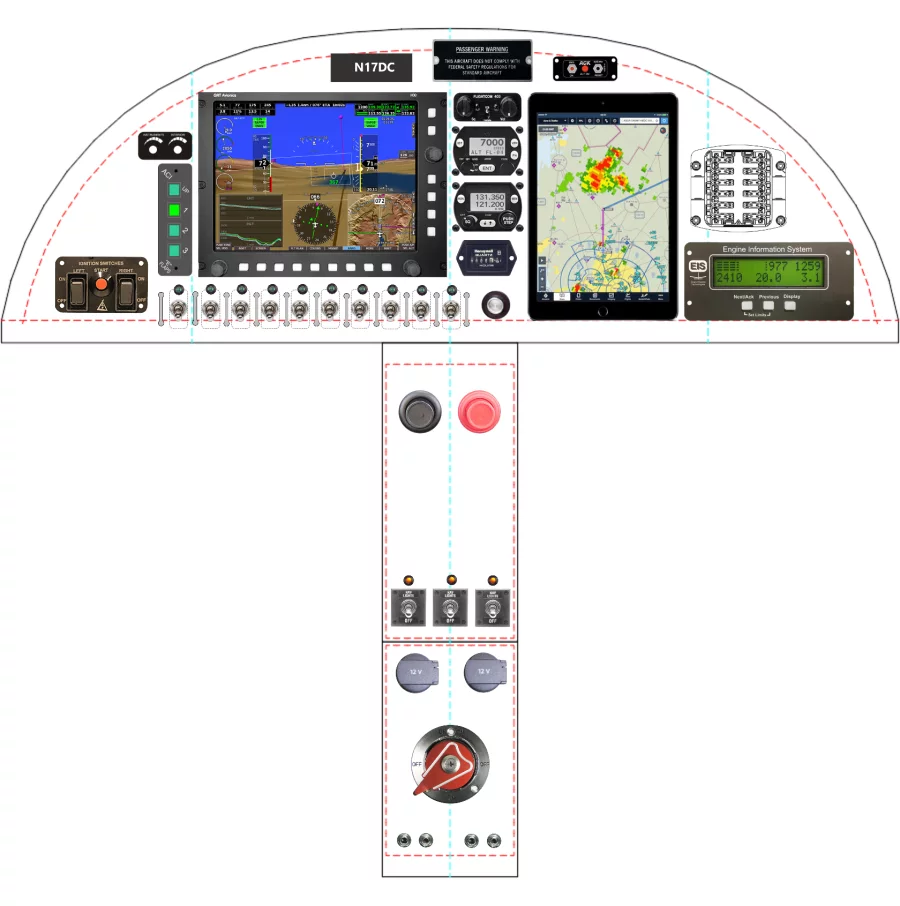

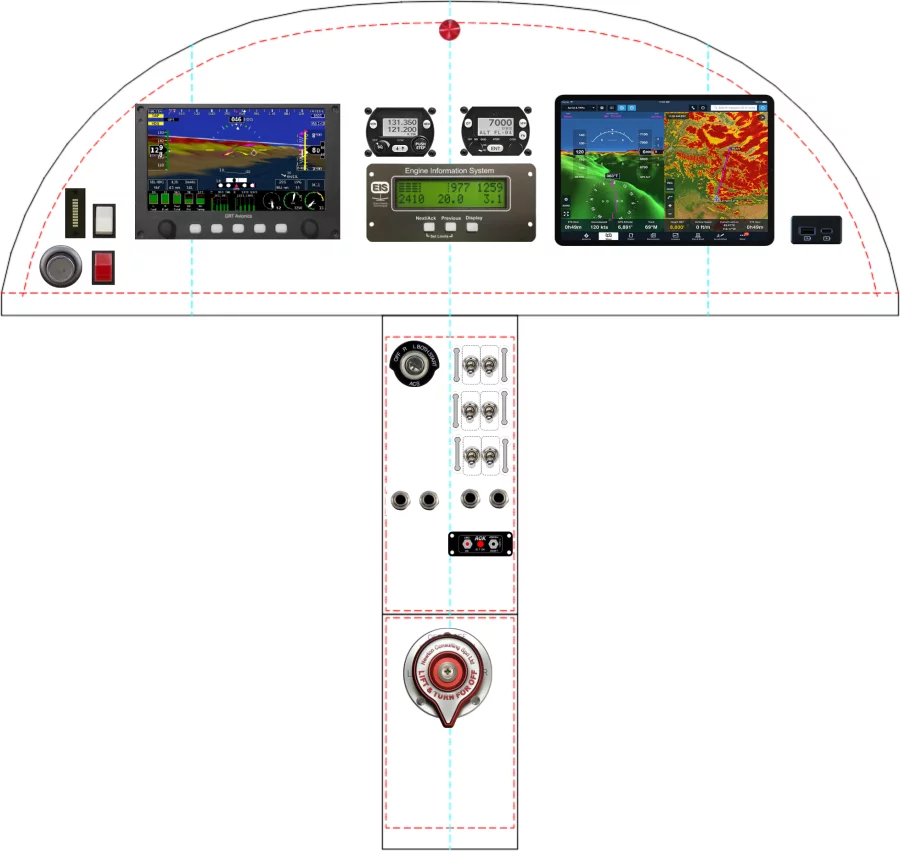

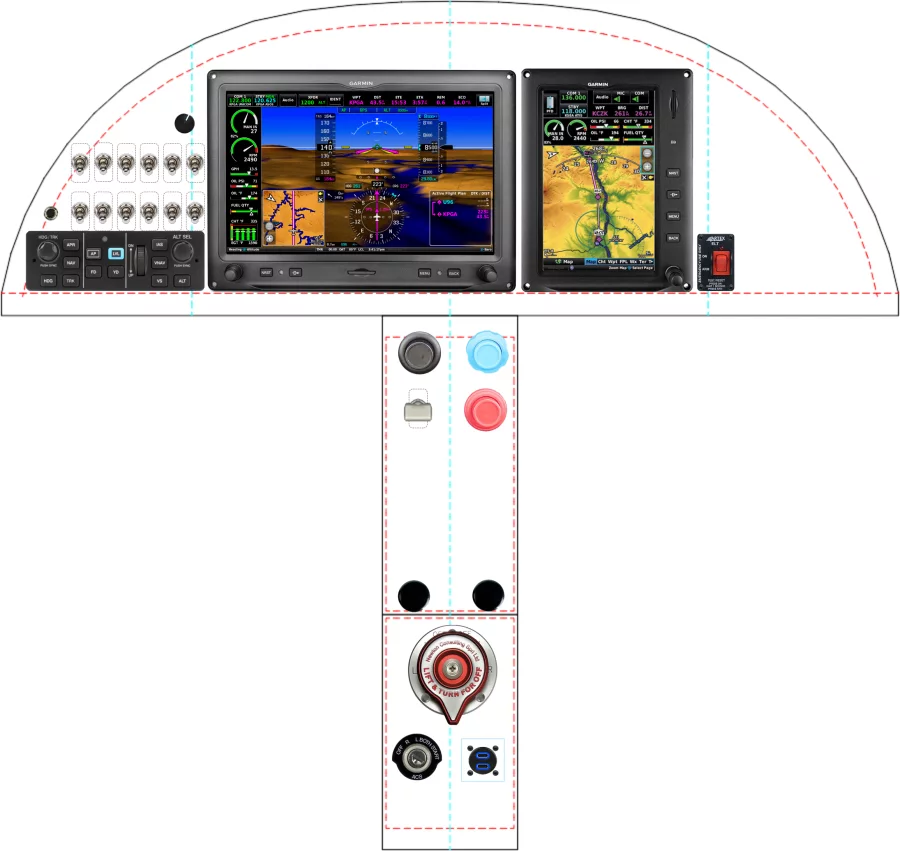

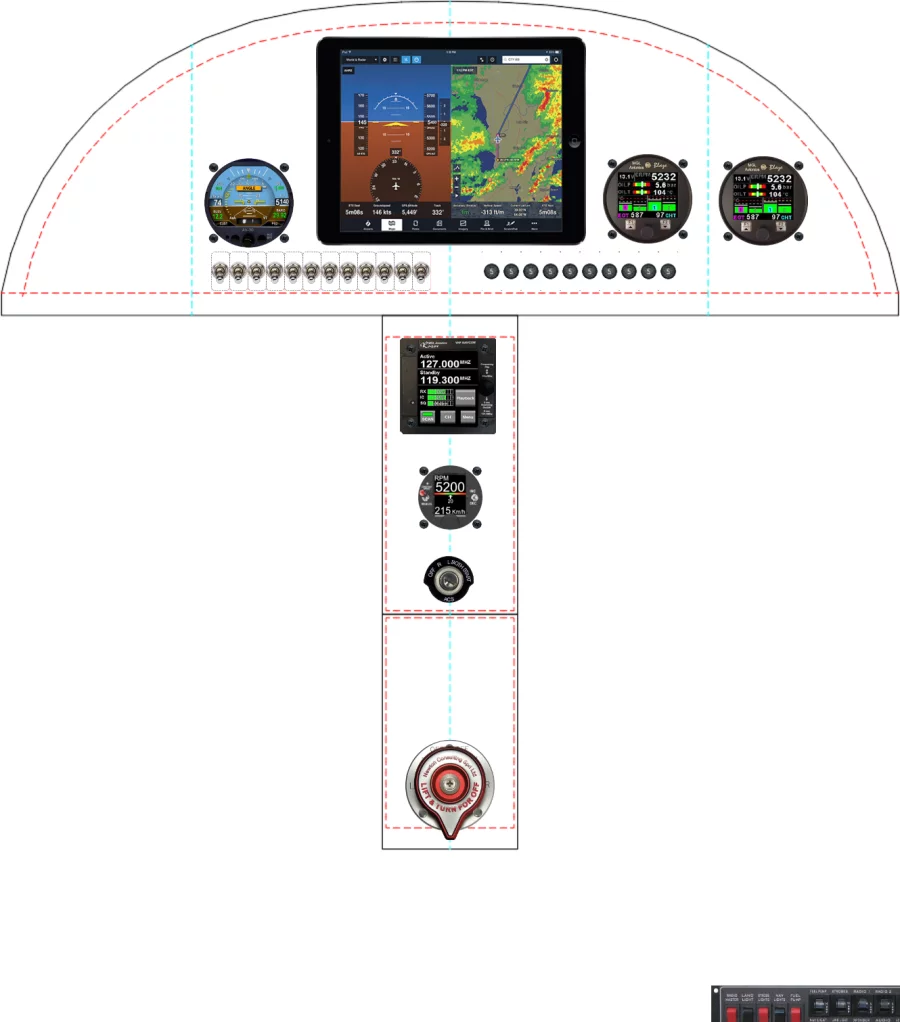

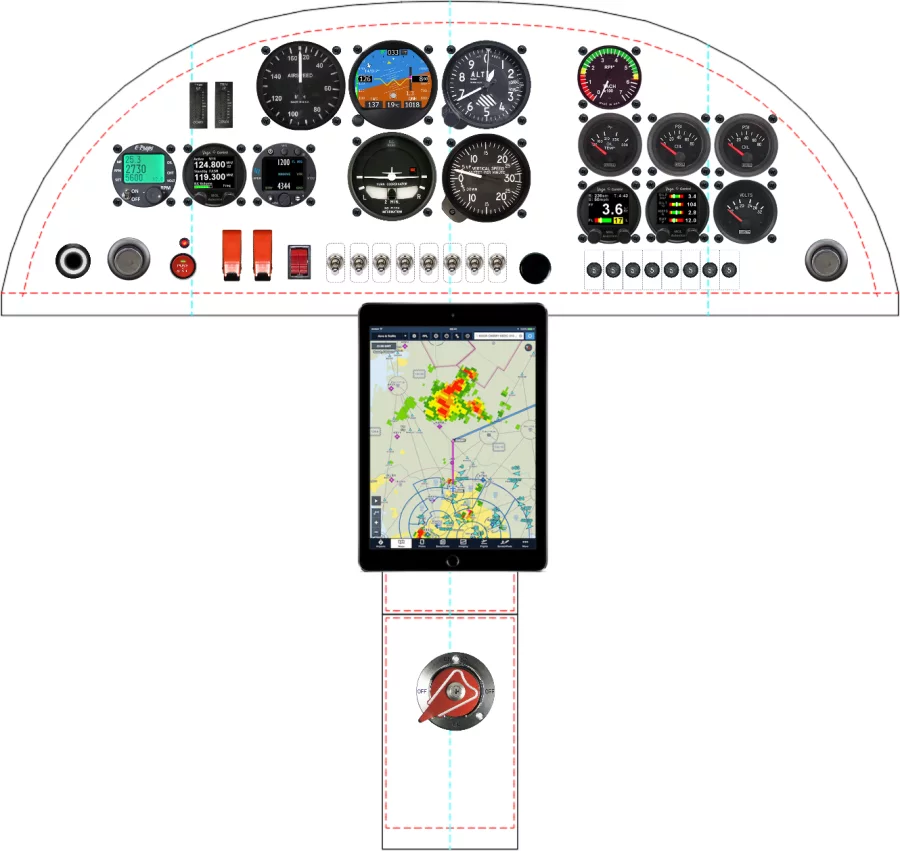

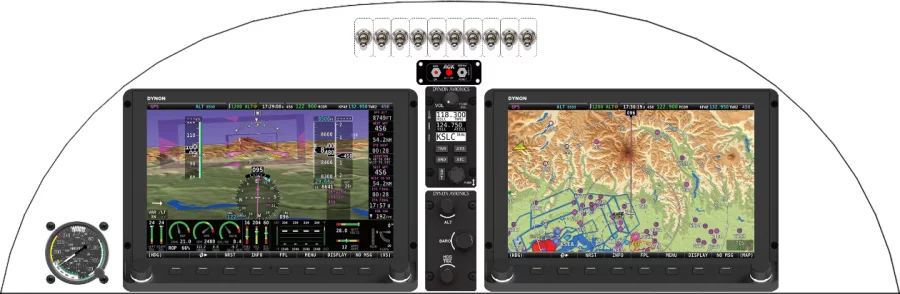

Recent STOL CH 750 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a STOL CH 750 panel
The equipment placed most often across the 285 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| The Ray Allen Company RS2 | 63 | 22% |
| Sensa Technologies 7277 | 63 | 22% |
| Dynon Avionics VHF COM | 57 | 20% |
| ACK Technologies ELT | 53 | 19% |
| Newton Consulting SPRL Limited SPRL V1-3P Fuel Valve | 50 | 18% |
| The Ray Allen Company Trim Indicator | 49 | 17% |
| Dynon Avionics Stereo Intercom | 43 | 15% |
| Dynon Avionics Dynon SkyView HDX 10" | 42 | 15% |
Other Zenith Aircraft Company panels
From layout to fabricated panel
Lay out the STOL CH 750 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
