Yakovlev
Yakovlev Yak-52 instrument panel
The Yak-52 panel template at the panel's dimensions, 31.3 × 18.9 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
12 panels laid out on this template
Also written Yak52 or Yak 52.

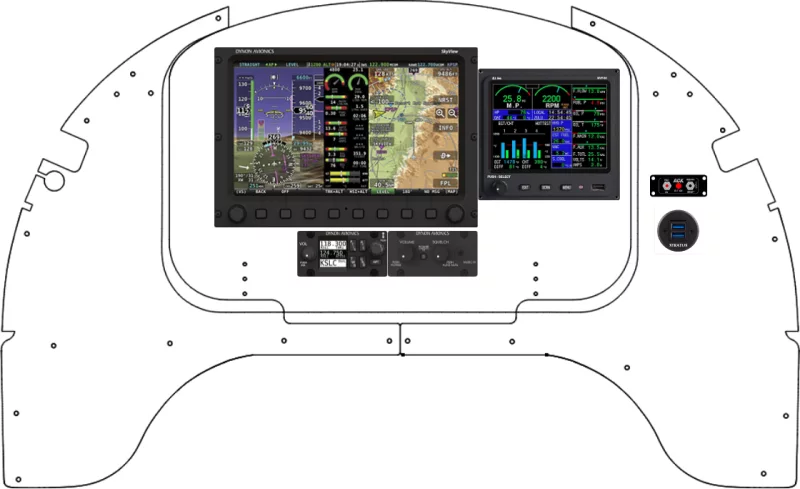

Recent Yak-52 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Yak-52 panel
The equipment placed most often across the 12 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 3 | 25% |
| Garmin International, Inc GMC 507 | 3 | 25% |
| UMA Instruments Manifold Pressure Gauge | 2 | 17% |
| Dynon Avionics Autopilot Panel | 2 | 17% |
| Dynon Avionics Stereo Intercom | 2 | 17% |
| Dynon Avionics VHF COM | 2 | 17% |
| Garmin International, Inc G3X Touch | 2 | 17% |
| Falcon Gauge Airspeed Indicator 3" | 2 | 17% |
From layout to fabricated panel
Lay out the Yak-52 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
