Taylorcraft 2000 LLC BC-12D instrument panel
The BC-12D panel template at the panel's dimensions, 37.5 × 10 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
12 panels laid out on this template
Also written BC12D or BC 12D.

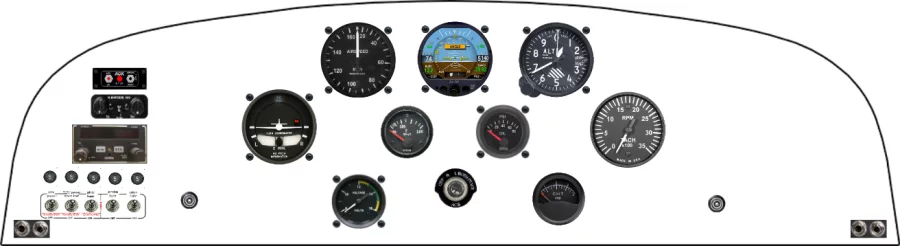

Recent BC-12D panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a BC-12D panel
The equipment placed most often across the 12 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Sensa Technologies 7277 | 5 | 42% |
| Falcon Gauge Altimeter 3" | 5 | 42% |
| Mitchell Aircraft Products, Inc Oil Pressure Gauge | 4 | 33% |
| Aircraft Spruce & Specialty Co 1040 Ball Bank Indicator | 3 | 25% |
| Falcon Gauge Airspeed Indicator 3" | 3 | 25% |
| Garmin International, Inc GTR 200B | 2 | 17% |
| Falcon Gauge ASI160M-3 | 2 | 17% |
| Flightcom 403 | 2 | 17% |
From layout to fabricated panel
Lay out the BC-12D panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
