Stinson Aircraft Company
Stinson Aircraft Company 108 instrument panel
The 108 panel template at the panel's dimensions, 38 × 15.25 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
22 panels laid out on this template

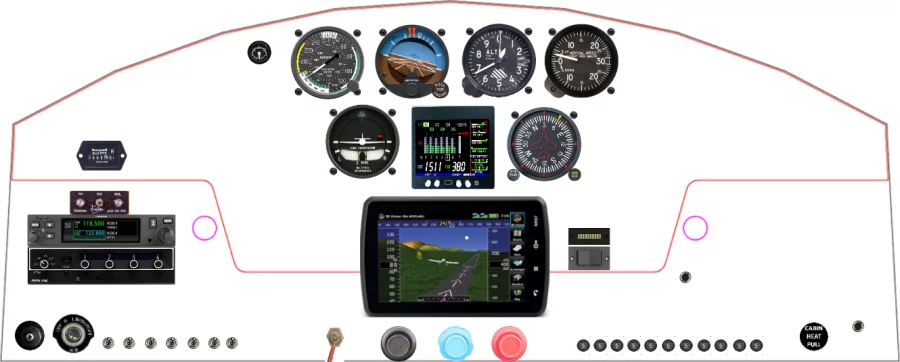

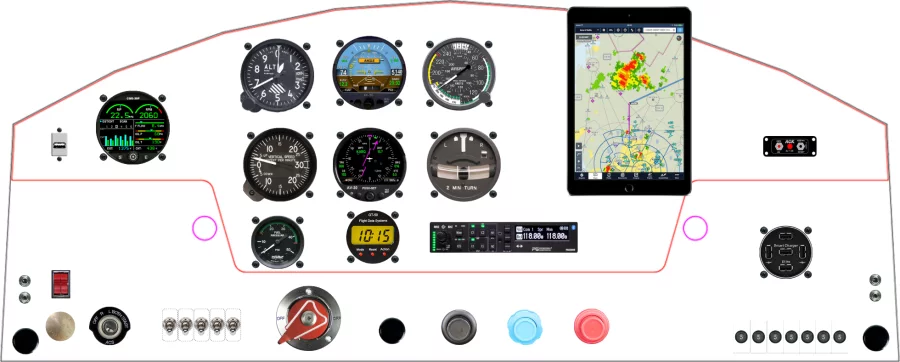

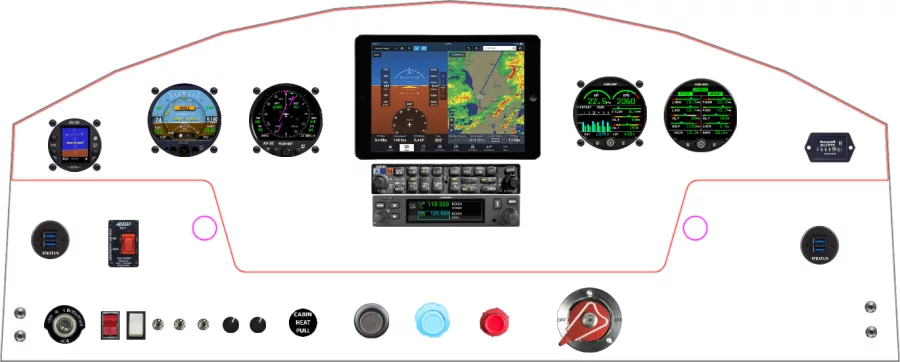

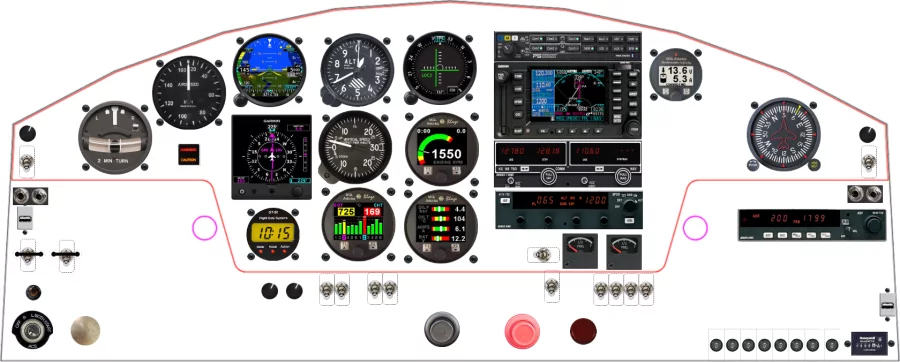

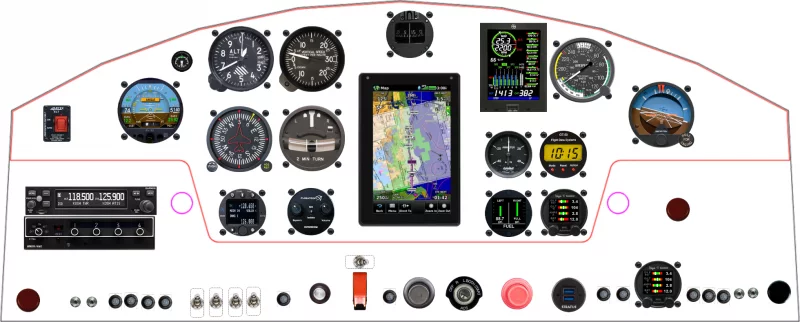

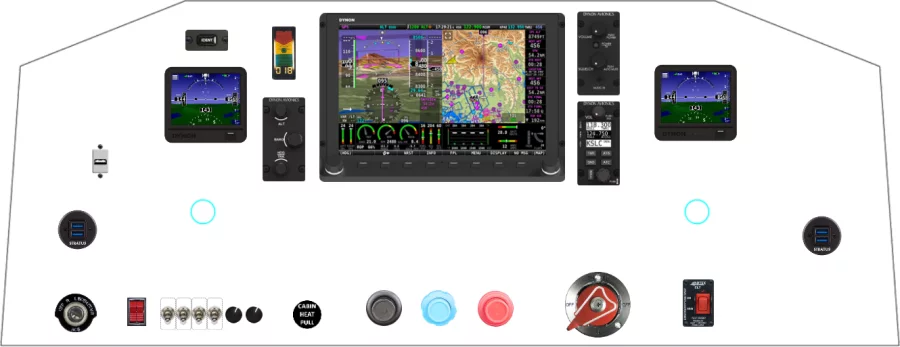

Recent 108 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 108 panel
The equipment placed most often across the 22 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Vertical Speed Indicator | 14 | 64% |
| Attitude Indicator | 11 | 50% |
| Falcon Gauge Altimeter 3" | 11 | 50% |
| Falcon Gauge Airspeed Indicator 3" | 11 | 50% |
| Directional Gyro | 6 | 27% |
| uAvionix Corporation AV-30 PFD | 6 | 27% |
| Mitchell Aircraft Products, Inc Oil Pressure Gauge | 5 | 23% |
| Garmin International, Inc GTR 200 | 5 | 23% |
From layout to fabricated panel
Lay out the 108 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
