Ryan Aeronautical
Ryan Aeronautical Navion instrument panel
The Navion panel template at the panel's dimensions, 46 × 23 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
17 panels laid out on this template

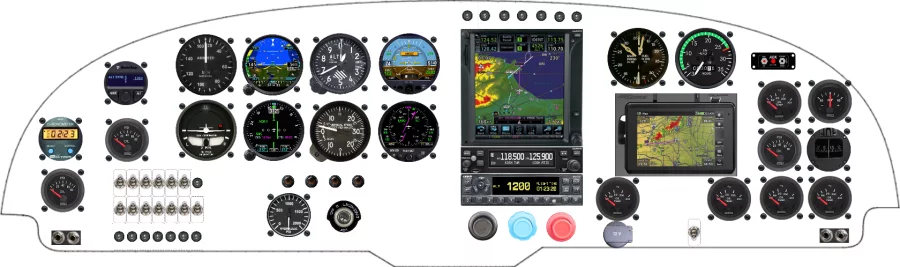

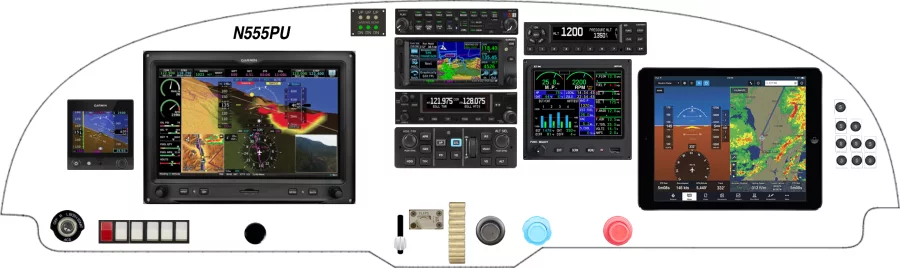

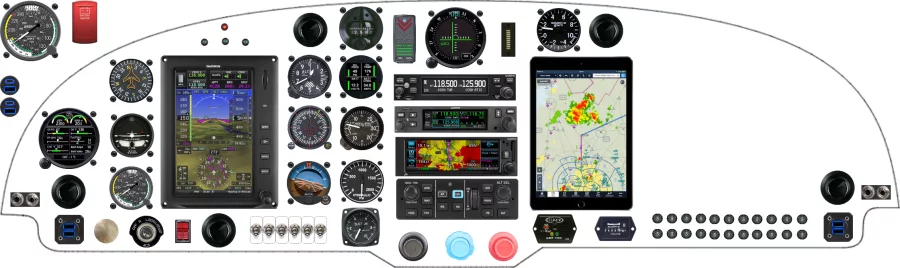

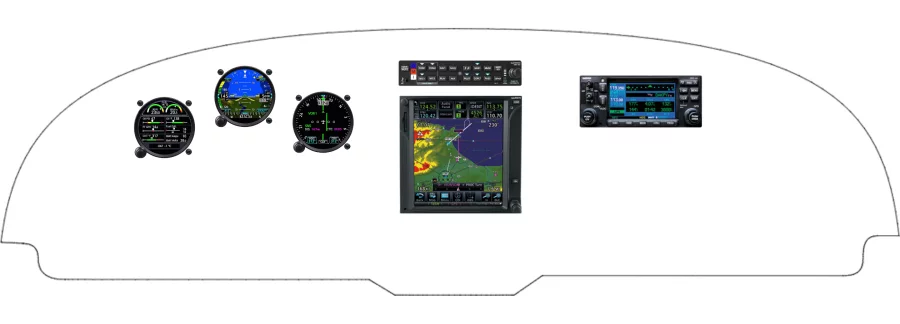

Recent Navion panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Navion panel
The equipment placed most often across the 17 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Vertical Speed Indicator | 10 | 59% |
| Falcon Gauge Airspeed Indicator 3" | 9 | 53% |
| Falcon Gauge Altimeter 3" | 9 | 53% |
| Garmin International, Inc GI 275 HSI | 5 | 29% |
| Garmin International, Inc SL30 | 5 | 29% |
| Attitude Indicator | 4 | 24% |
| Garmin International, Inc G3X Touch | 4 | 24% |
| Garmin International, Inc G5 | 4 | 24% |
From layout to fabricated panel
Lay out the Navion panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
