Rutan Long-Ez instrument panel
The Long-Ez panel template at the panel's dimensions, 23.88 × 16 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
188 panels laid out on this template
3 templates for the Long-Ez
23.88 × 16 in
23.88 × 16.63 in
22 × 15.84 in

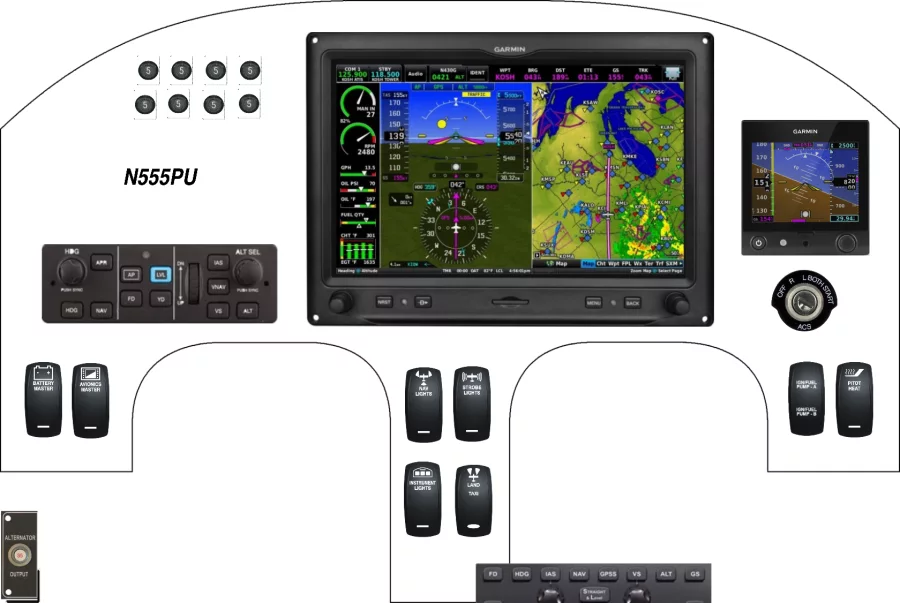

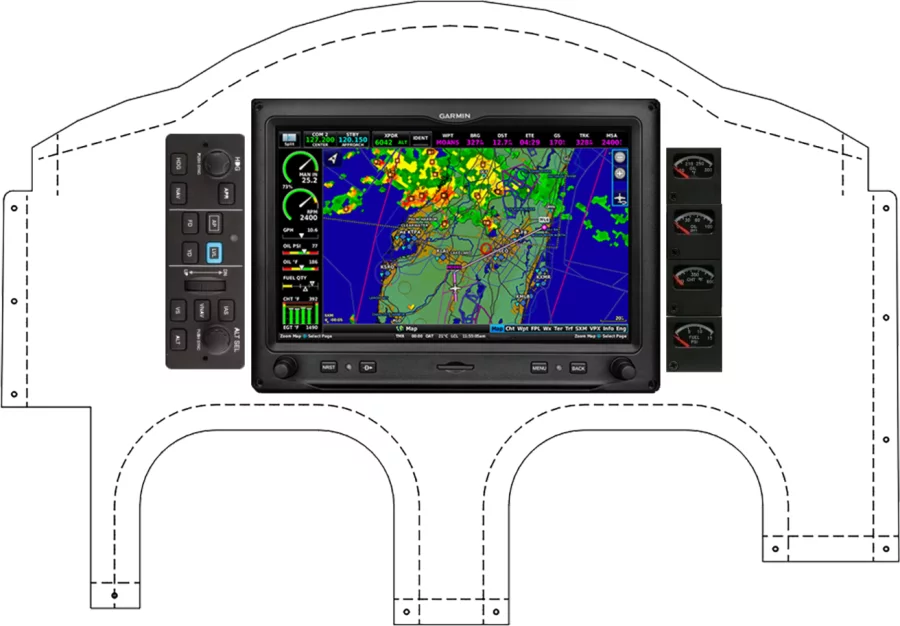

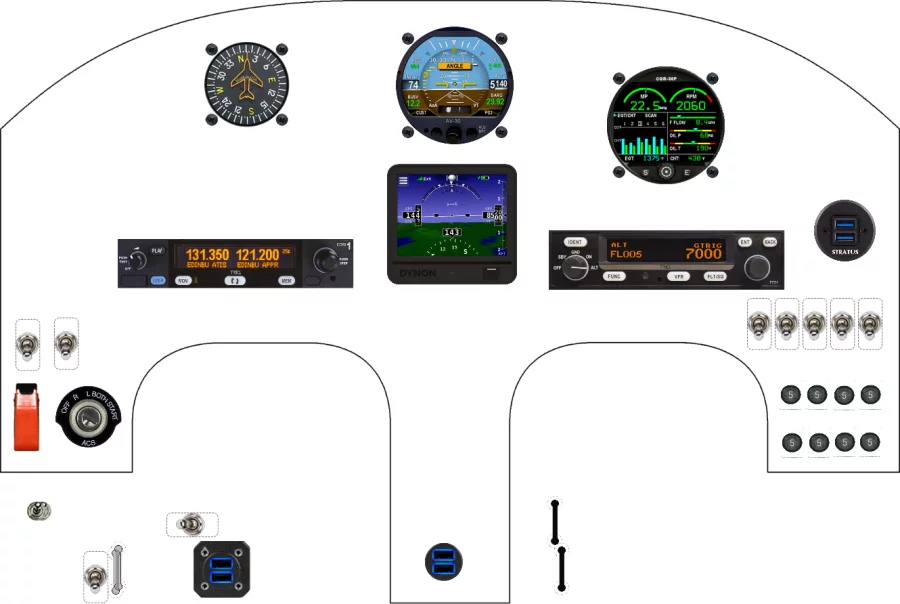

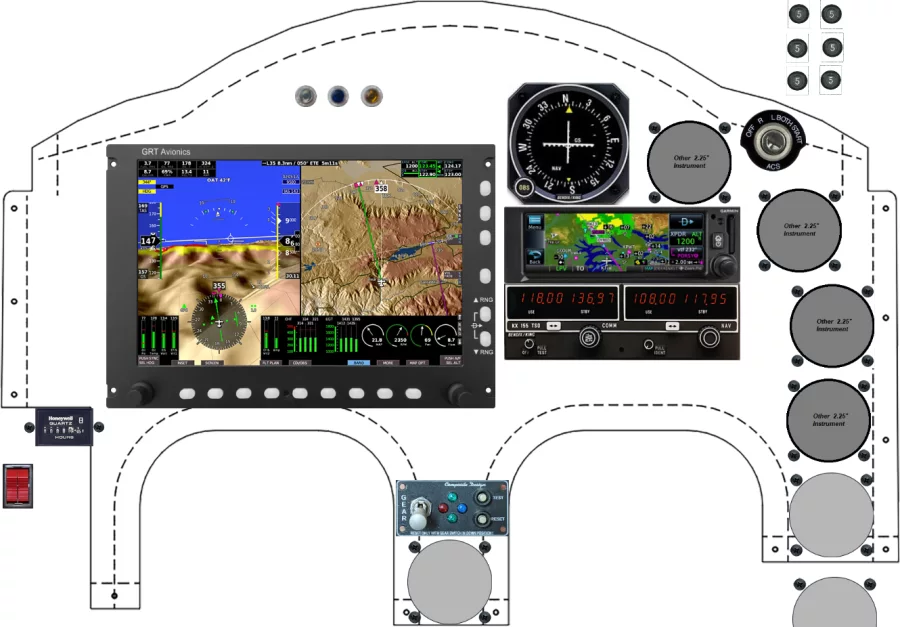

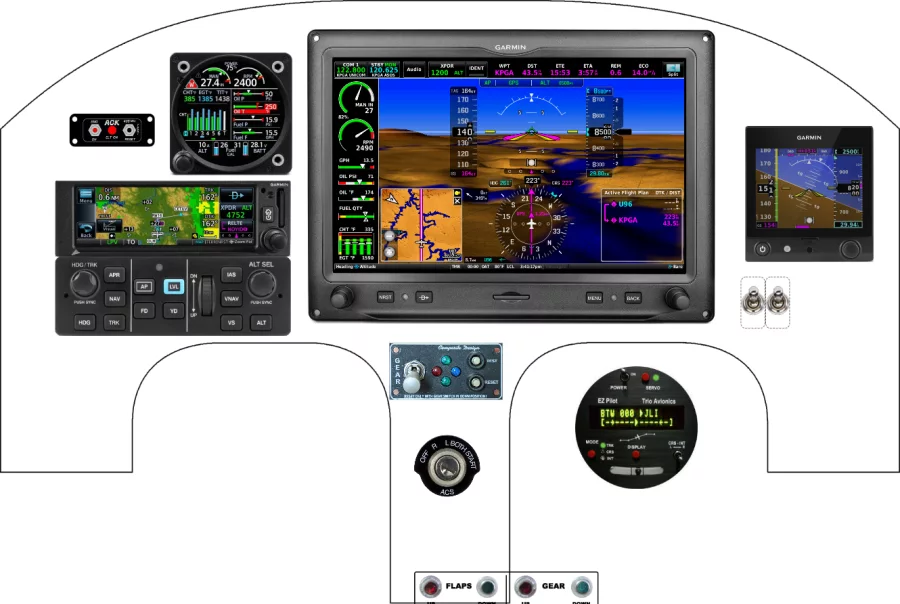

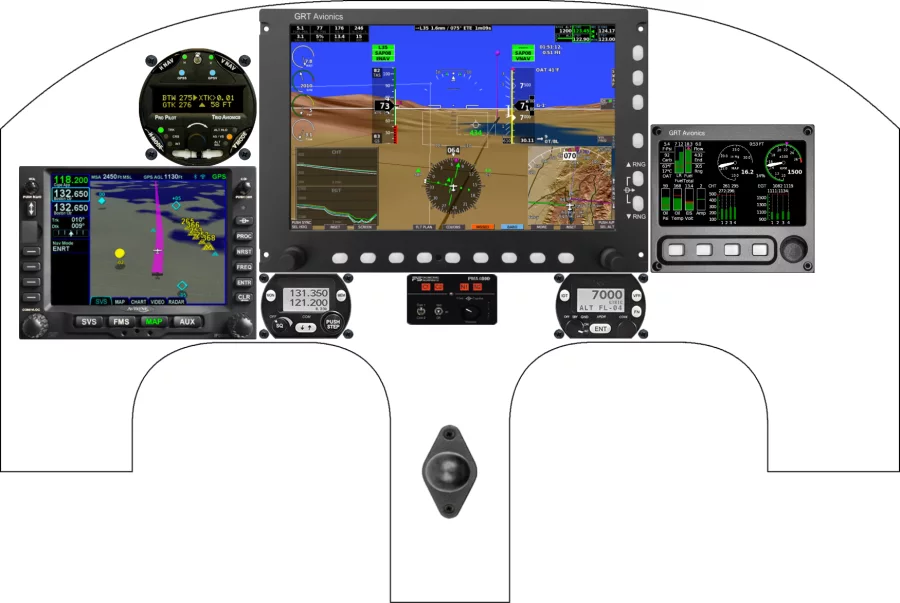

Recent Long-Ez panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Long-Ez panel
The equipment placed most often across the 188 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 50 | 27% |
| ACK Technologies ELT | 36 | 19% |
| Garmin International, Inc G3X Touch | 35 | 19% |
| Dynon Avionics VHF COM | 32 | 17% |
| Sensa Technologies 7277 | 30 | 16% |
| Falcon Gauge Airspeed Indicator 3" | 26 | 14% |
| Dynon Avionics Autopilot Panel | 24 | 13% |
| Falcon Gauge Altimeter 3" | 24 | 13% |
Other Rutan panels
From layout to fabricated panel
Lay out the Long-Ez panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
