Rand Robinson KR-2 instrument panel
The KR-2 panel template at the panel's dimensions, 32.52 × 16.26 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
14 panels laid out on this template
Also written KR2 or KR 2.

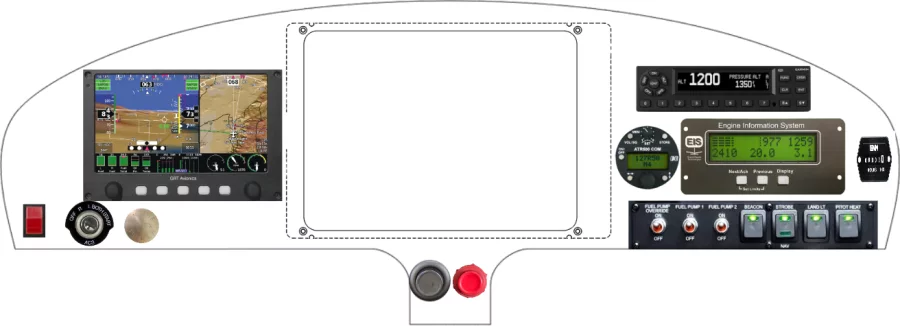

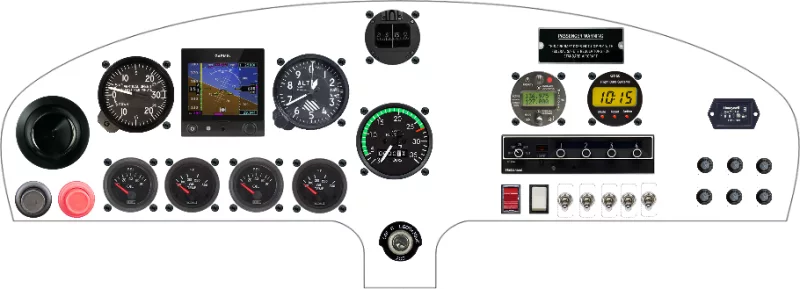

Recent KR-2 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a KR-2 panel
The equipment placed most often across the 14 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Flight Data Systems Inc GT-50 | 7 | 50% |
| Falcon Gauge Vertical Speed Indicator | 7 | 50% |
| Mitchell Aircraft Products, Inc Oil Temperature Gauge | 6 | 43% |
| Bendix King KT 76 | 6 | 43% |
| Mitchell Aircraft Products, Inc Oil Pressure Gauge | 6 | 43% |
| Falcon Gauge Altimeter 3" | 6 | 43% |
| Sensa Technologies 7277 | 5 | 36% |
| Microair Avionics M760 | 5 | 36% |
From layout to fabricated panel
Lay out the KR-2 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
