nV Aerospace KR2 instrument panel
The KR2 panel template at the panel's dimensions, 39.61 × 14.28 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
25 panels laid out on this template

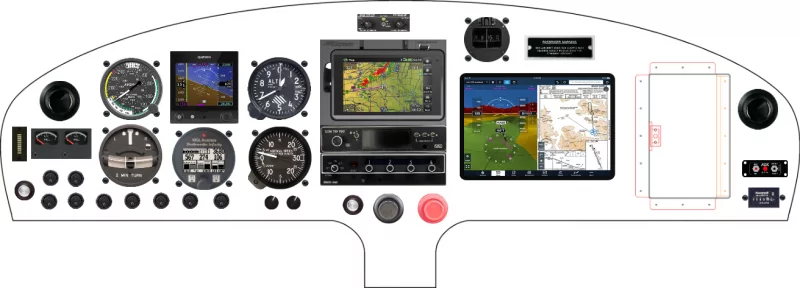

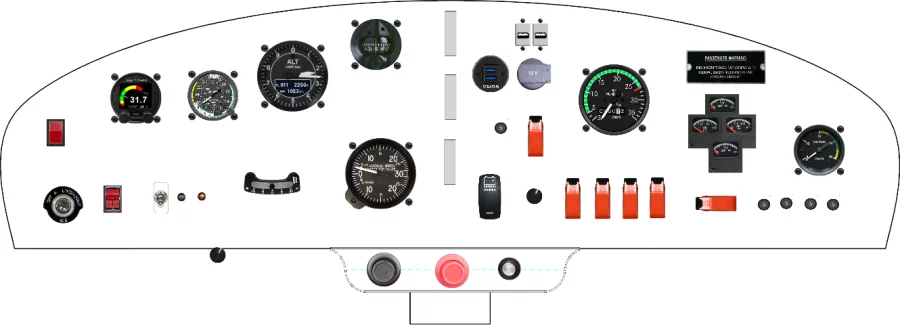

Recent KR2 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a KR2 panel
The equipment placed most often across the 25 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Falcon Gauge Vertical Speed Indicator | 8 | 32% |
| Garmin International, Inc G5 | 8 | 32% |
| Garmin International, Inc G3X Touch | 7 | 28% |
| Falcon Gauge Airspeed Indicator 3" | 6 | 24% |
| Falcon Gauge Altimeter 3" | 6 | 24% |
| The Ray Allen Company Trim Indicator | 5 | 20% |
| ACK Technologies ELT | 5 | 20% |
| Sensa Technologies 7277 | 5 | 20% |
From layout to fabricated panel
Lay out the KR2 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
