North American Rockwell
North American Rockwell 112 instrument panel
The 112 panel template at the panel's dimensions, 49.75 × 15.76 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
45 panels laid out on this template

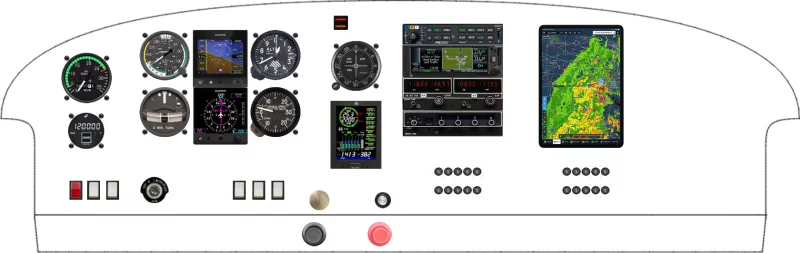

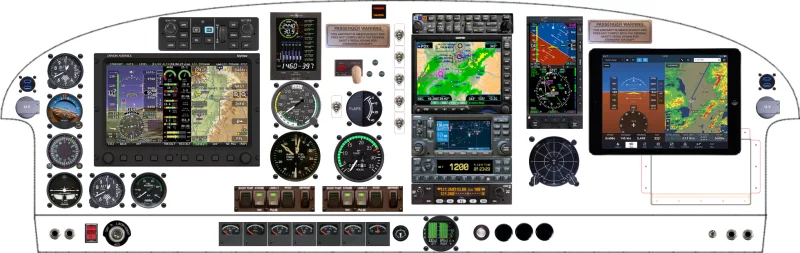

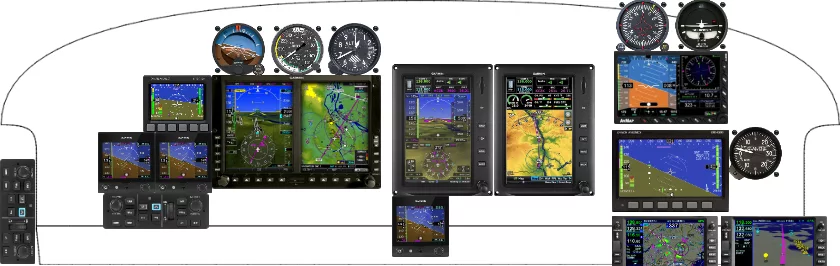

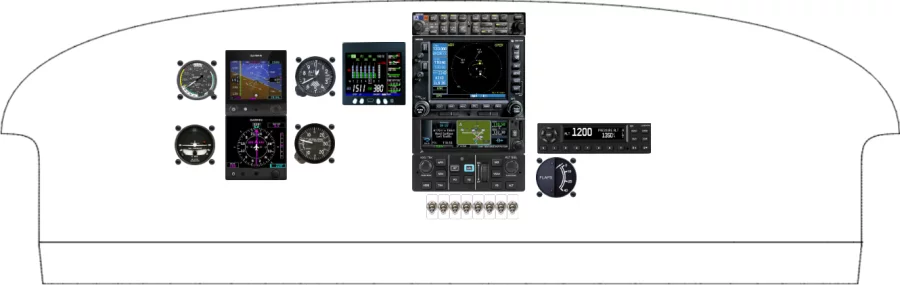

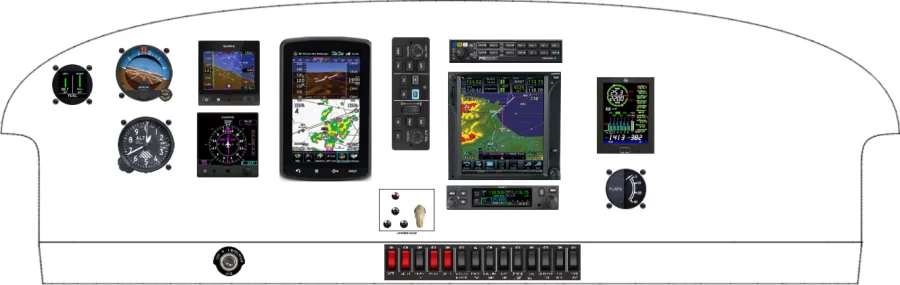

Recent 112 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 112 panel
The equipment placed most often across the 45 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 24 | 53% |
| Garmin International, Inc GFC 500 | 17 | 38% |
| Garmin International, Inc GNC 215 | 16 | 36% |
| Garmin International, Inc G3X Touch | 14 | 31% |
| Garmin International, Inc GMA 345 | 11 | 24% |
| Falcon Gauge Vertical Speed Indicator | 10 | 22% |
| Aero Safety Systems AH501 | 10 | 22% |
| Falcon Gauge Altimeter 3" | 10 | 22% |
Other North American Rockwell panels
From layout to fabricated panel
Lay out the 112 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
