Lancair International 235 instrument panel
The 235 panel template at the panel's dimensions, 35.79 × 19.15 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
35 panels laid out on this template

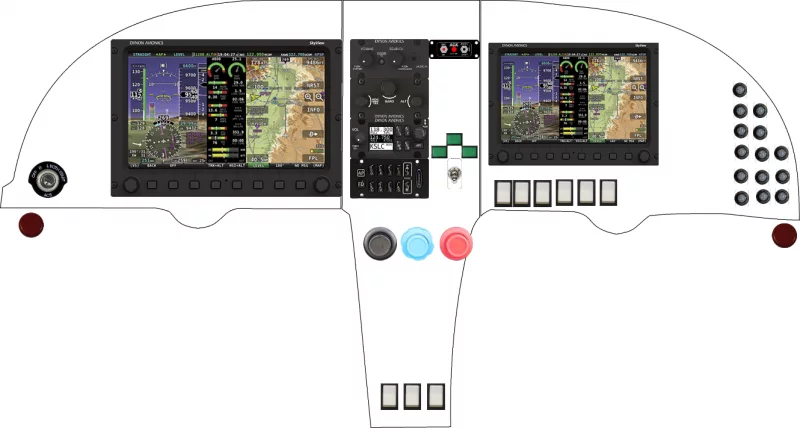

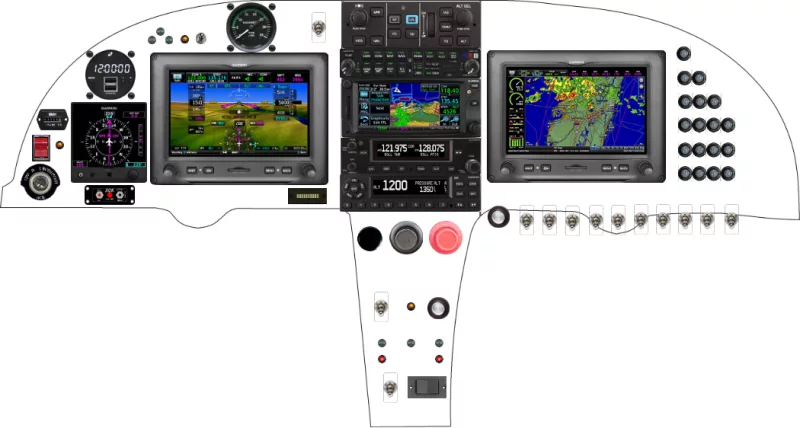

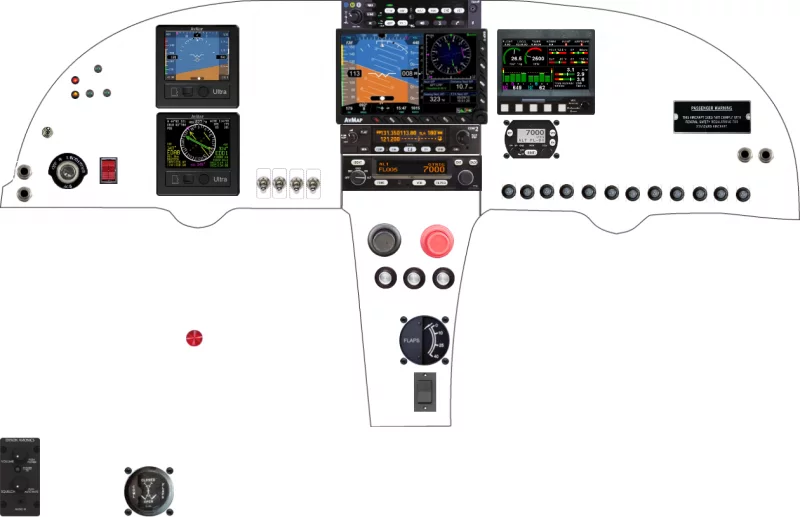

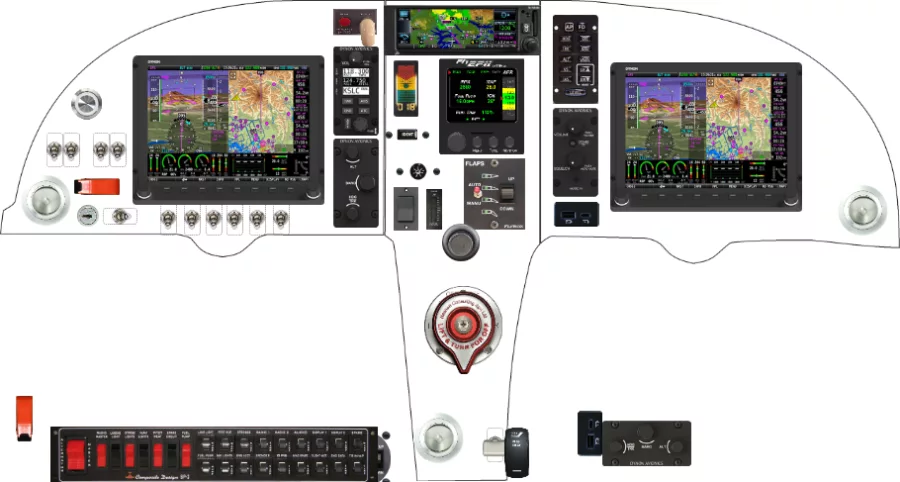

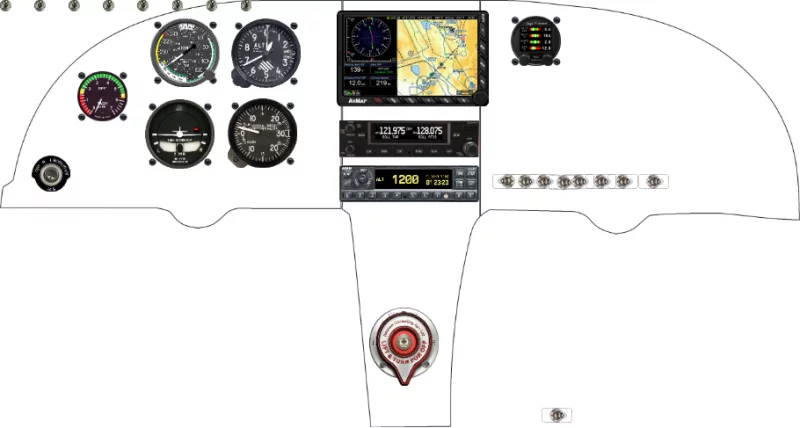

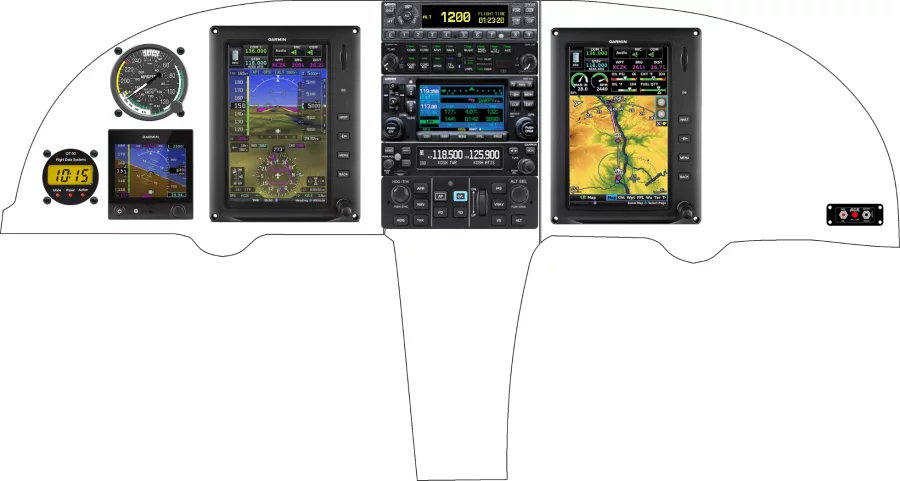

Recent 235 panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a 235 panel
The equipment placed most often across the 35 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| ACK Technologies ELT | 21 | 60% |
| Garmin International, Inc G5 | 18 | 51% |
| Garmin International, Inc GMC 507 | 17 | 49% |
| Dynon Avionics AOA Sport | 12 | 34% |
| The Ray Allen Company Trim Indicator | 12 | 34% |
| Garmin International, Inc GTR 200 | 11 | 31% |
| Garmin International, Inc G3X Touch | 11 | 31% |
| Garmin International, Inc GTX 327 | 9 | 26% |
Other Lancair International panels
From layout to fabricated panel
Lay out the 235 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
