Glasair Aviation Glasair II instrument panel
The Glasair II panel template at the panel's dimensions, 38.89 × 11.54 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
58 panels laid out on this template
2 templates for the Glasair II
38.89 × 11.54 in
41.7 × 18.86 in

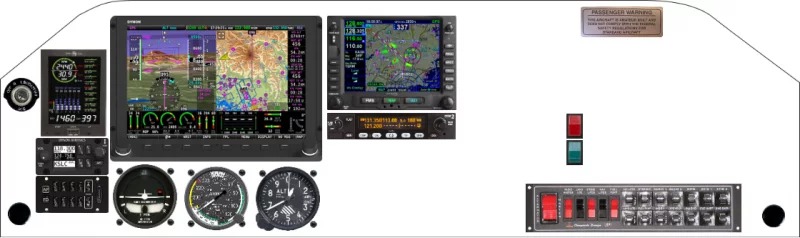

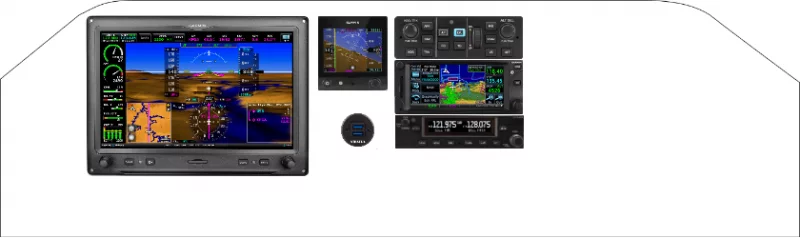

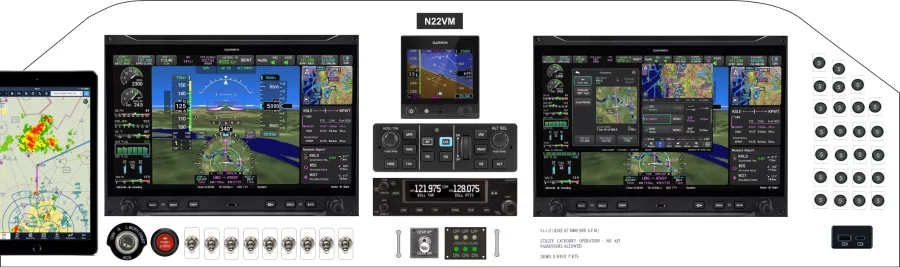

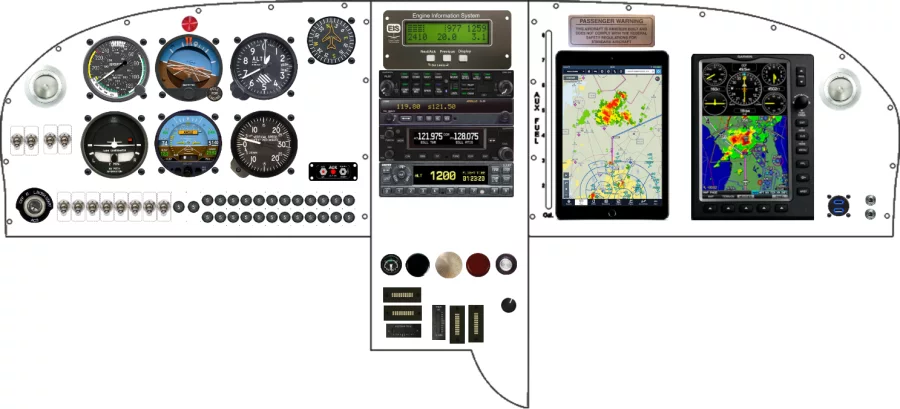

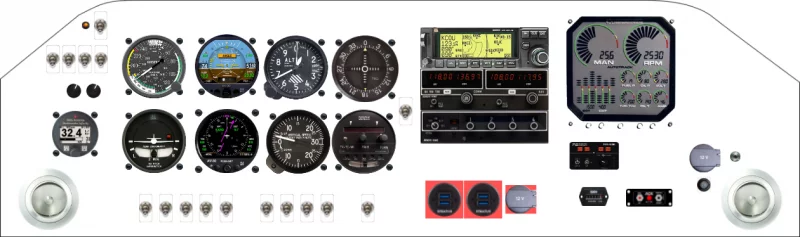

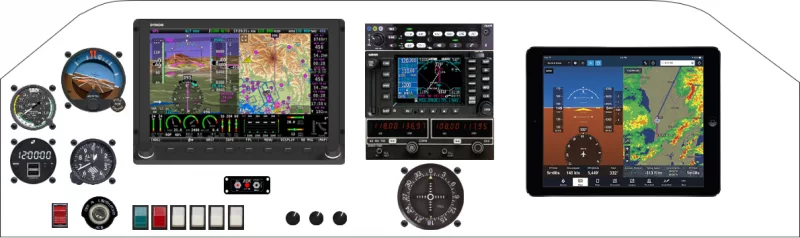

Recent Glasair II panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Glasair II panel
The equipment placed most often across the 58 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc G5 | 22 | 38% |
| Sensa Technologies 7277 | 17 | 29% |
| Garmin International, Inc G3X Touch | 15 | 26% |
| Garmin International, Inc GMC 507 | 13 | 22% |
| Falcon Gauge Altimeter 3" | 12 | 21% |
| Falcon Gauge Airspeed Indicator 3" | 12 | 21% |
| Garmin International, Inc GPS 175 | 11 | 19% |
| Trig Avionics TI106 CDI | 11 | 19% |
Other Glasair Aviation panels
From layout to fabricated panel
Lay out the Glasair II panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
