Fisher Flying Products R-80 Tiger Moth instrument panel
The R-80 Tiger Moth panel template at the panel's dimensions, 26 × 10.88 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
13 panels laid out on this template

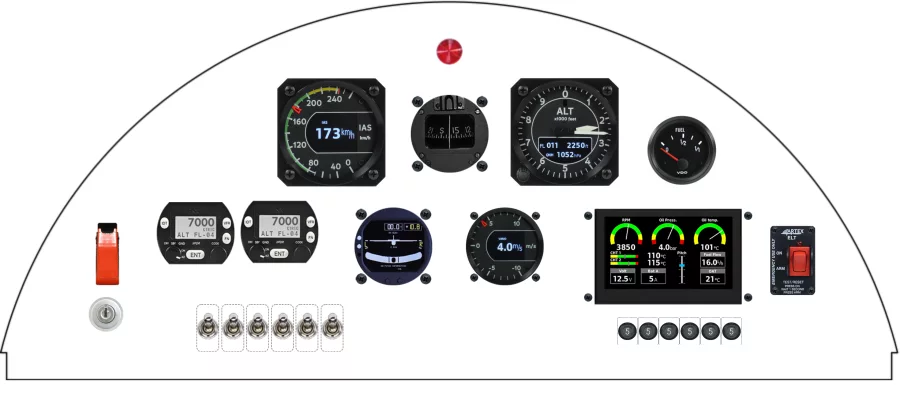

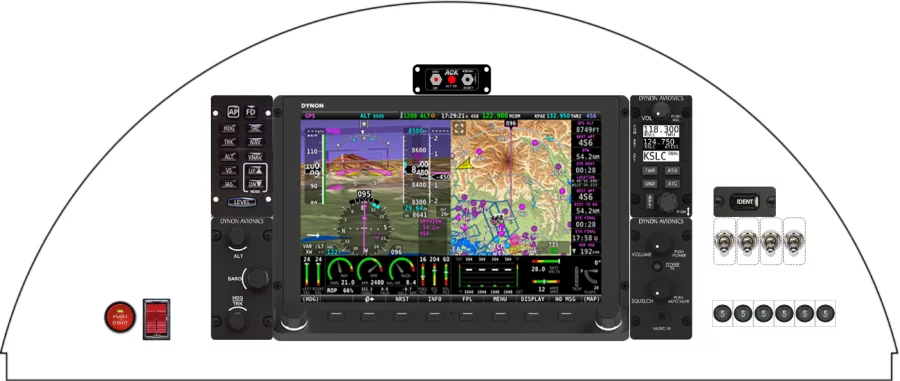

Recent R-80 Tiger Moth panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an R-80 Tiger Moth panel
The equipment placed most often across the 13 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Airpath Instrument Company Panel Mount Compass | 6 | 46% |
| Sensa Technologies 7277 | 6 | 46% |
| Kanardia Indu VSI | 4 | 31% |
| GRT Avionics EIS | 3 | 23% |
| Kanardia Digi EMS | 3 | 23% |
| Mitchell Aircraft Products, Inc Oil Temperature Gauge | 3 | 23% |
| Falcon Gauge Airspeed Indicator 3" | 3 | 23% |
| Belite Aircraft Radiant Turn Coordinator | 3 | 23% |
From layout to fabricated panel
Lay out the R-80 Tiger Moth panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
