Aero Designs Pulsar instrument panel
The Pulsar panel template at the panel's dimensions, 38 × 8.28 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
39 panels laid out on these 2 templates
2 templates for the Pulsar

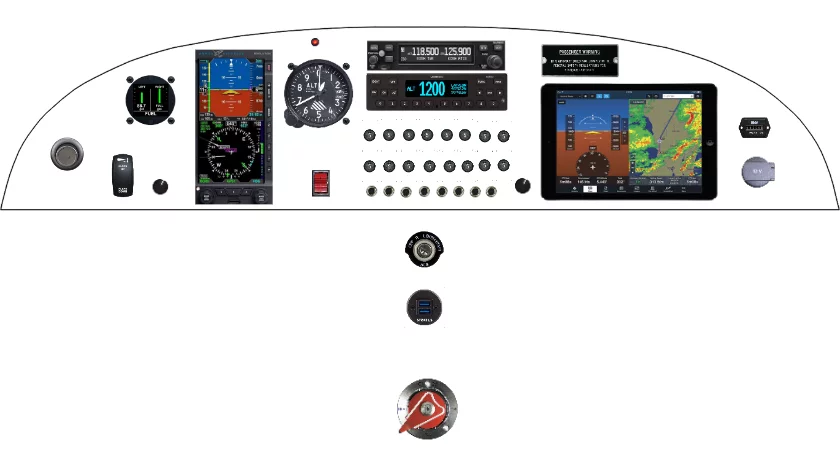

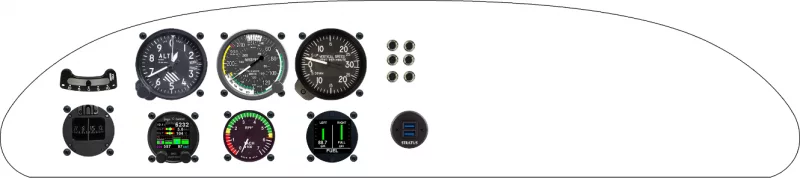

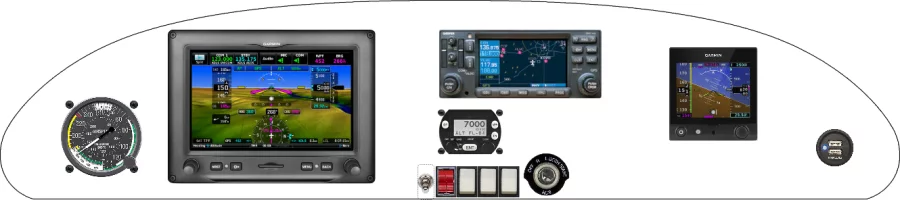

Recent Pulsar panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in a Pulsar panel
The equipment placed most often across the 39 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Sensa Technologies 7277 | 19 | 49% |
| ACK Technologies ELT | 14 | 36% |
| Trig Avionics TT21/TT22 Transponder | 14 | 36% |
| Aerospace Logic Inc. FL202 Two Tank Fuel Level | 13 | 33% |
| Trig Avionics TY91/TY92 VHF Comm | 11 | 28% |
| GRT Avionics EIS | 7 | 18% |
| GRT Avionics GRT sport PFD + EIS | 7 | 18% |
| GRT Avionics MINI Series EFIS | 6 | 15% |
From layout to fabricated panel
Lay out the Pulsar panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
