STOL Sport Aviation RV-8 / RV-8A instrument panel

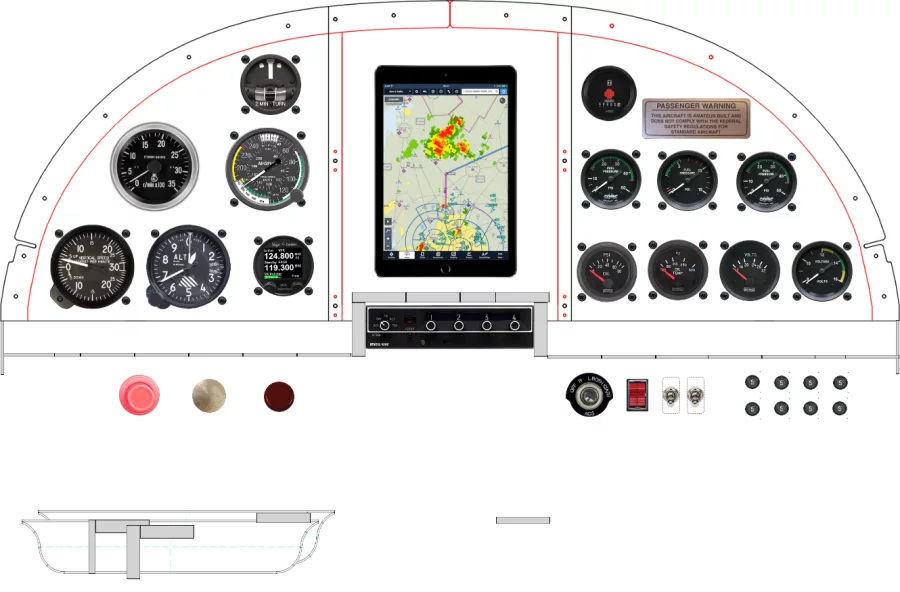

The RV-8 / RV-8A panel template at the panel's dimensions, 33.29 × 11.87 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
20 panels laid out on this template
Recent RV-8 / RV-8A panel designs
Exported by builders from the Panel Designer, newest first.
What builders put in an RV-8 / RV-8A panel
The equipment placed most often across the 20 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GTR 200 | 5 | 25% |
| Garmin International, Inc G5 | 5 | 25% |
| Garmin International, Inc G3X Touch | 4 | 20% |
| MGL Avionics (Rainbow Aircraft, Inc) ALT-5 | 4 | 20% |
| Apple iPad Mini 4 | 4 | 20% |
| MGL Avionics (Rainbow Aircraft, Inc) AHRS-1 / 2 | 4 | 20% |
| Bendix King KT 76 | 4 | 20% |
| Garmin International, Inc GMA 245 | 3 | 15% |
Other STOL Sport Aviation panels
From layout to fabricated panel
Lay out the RV-8 / RV-8A panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
